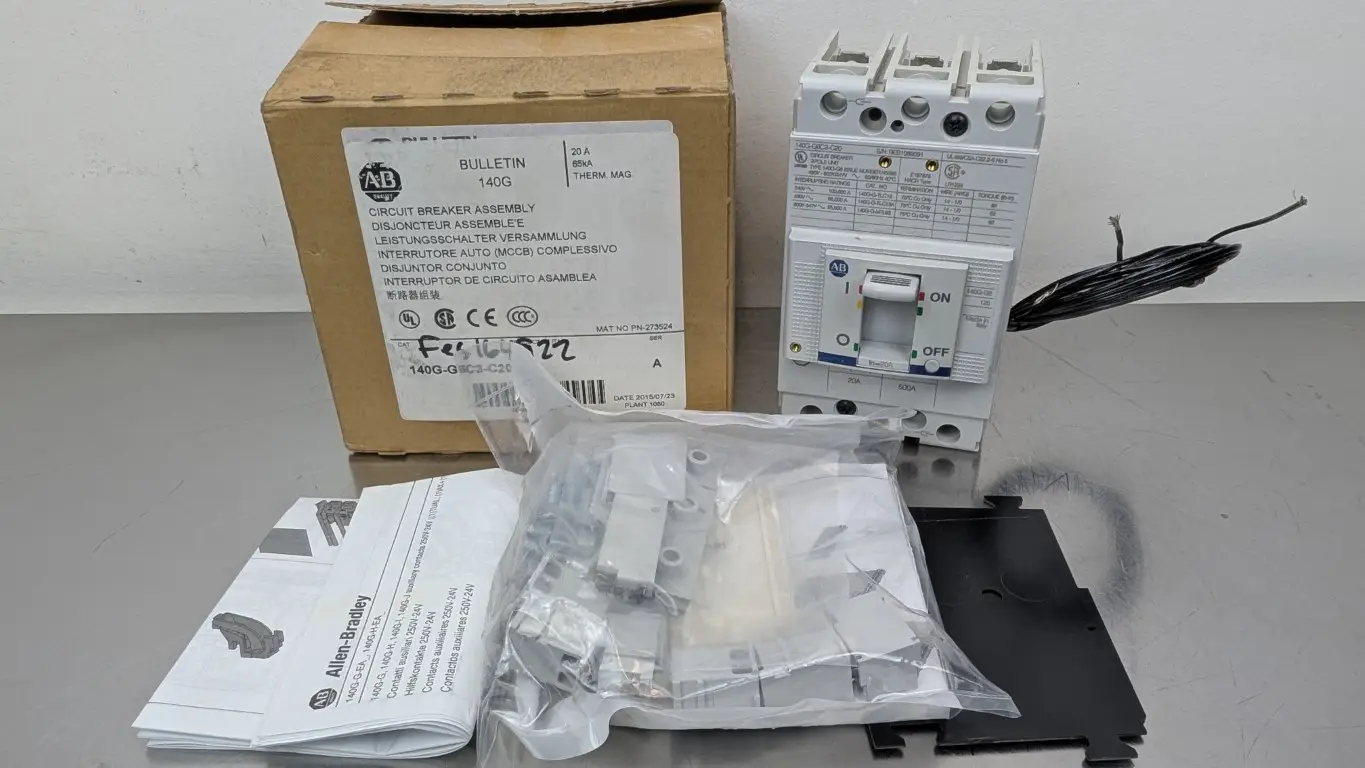

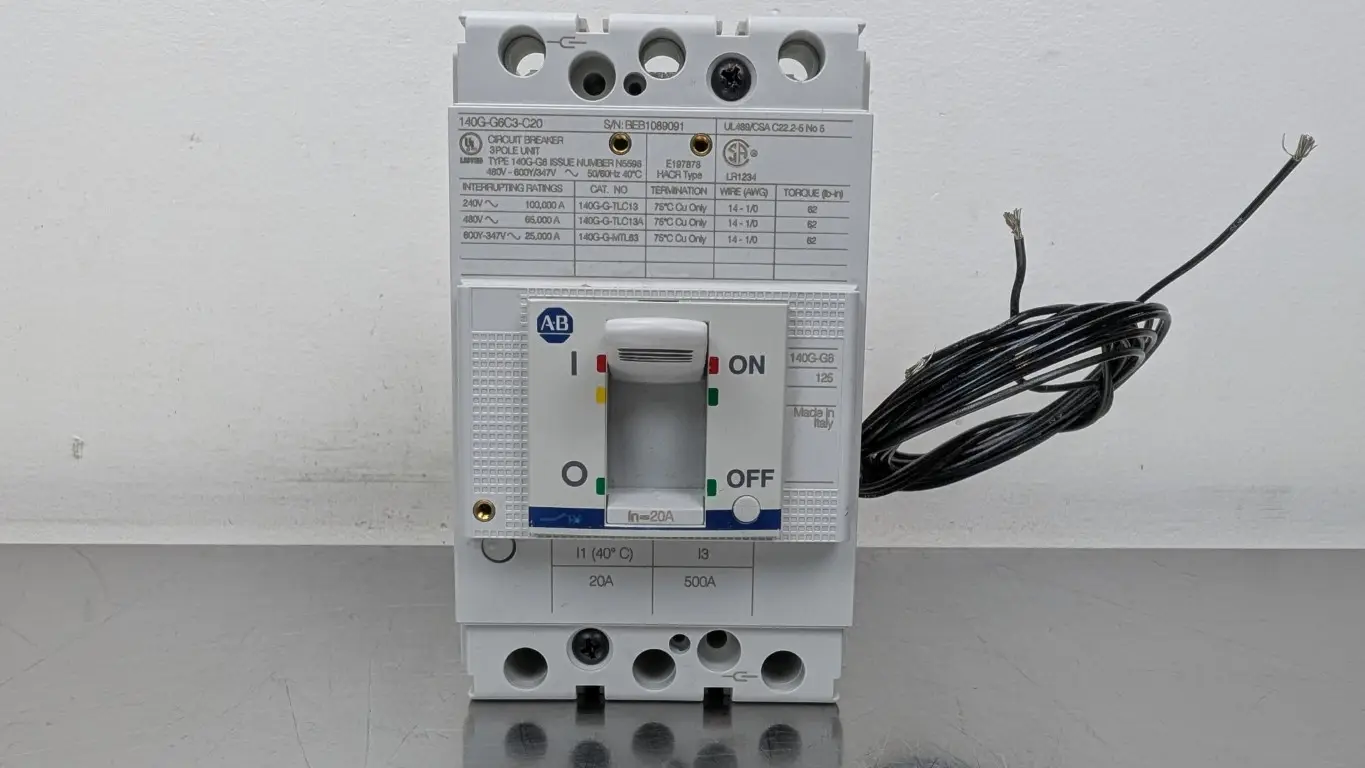

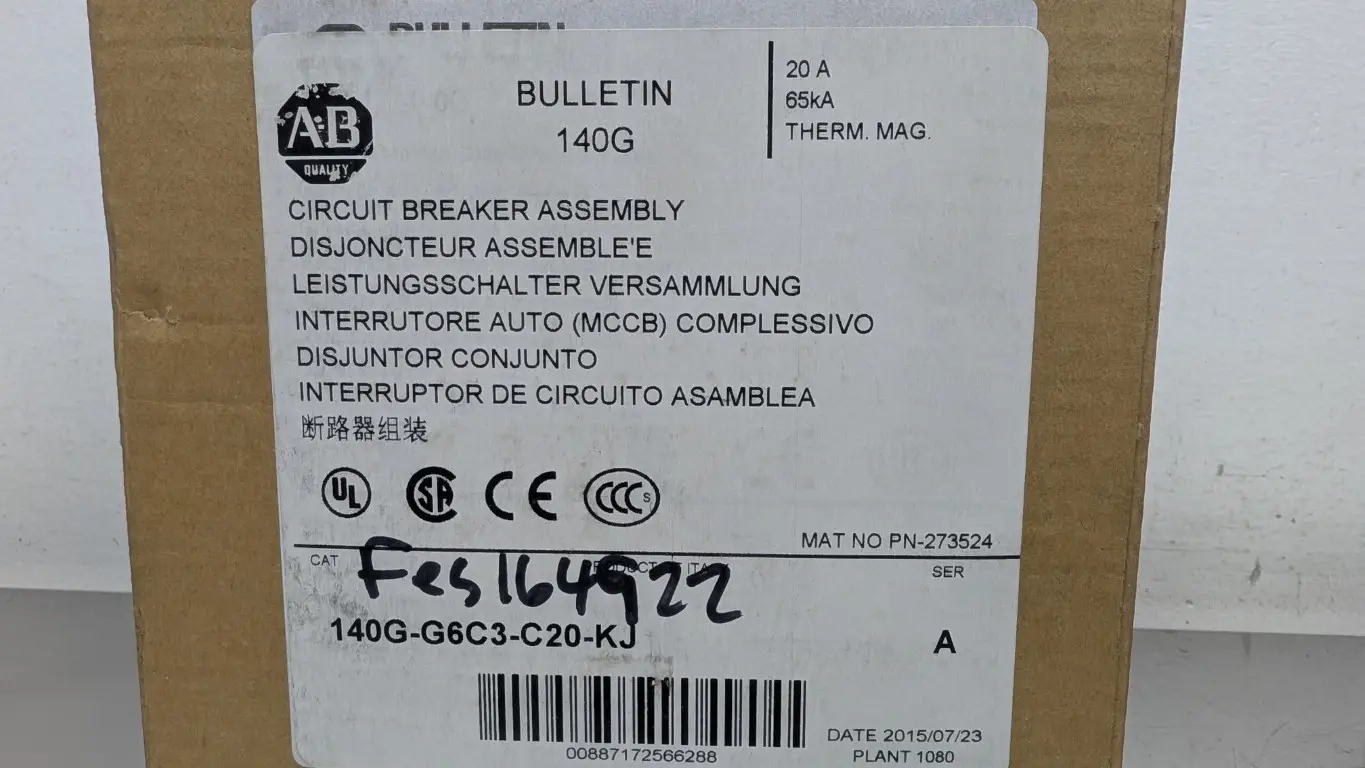

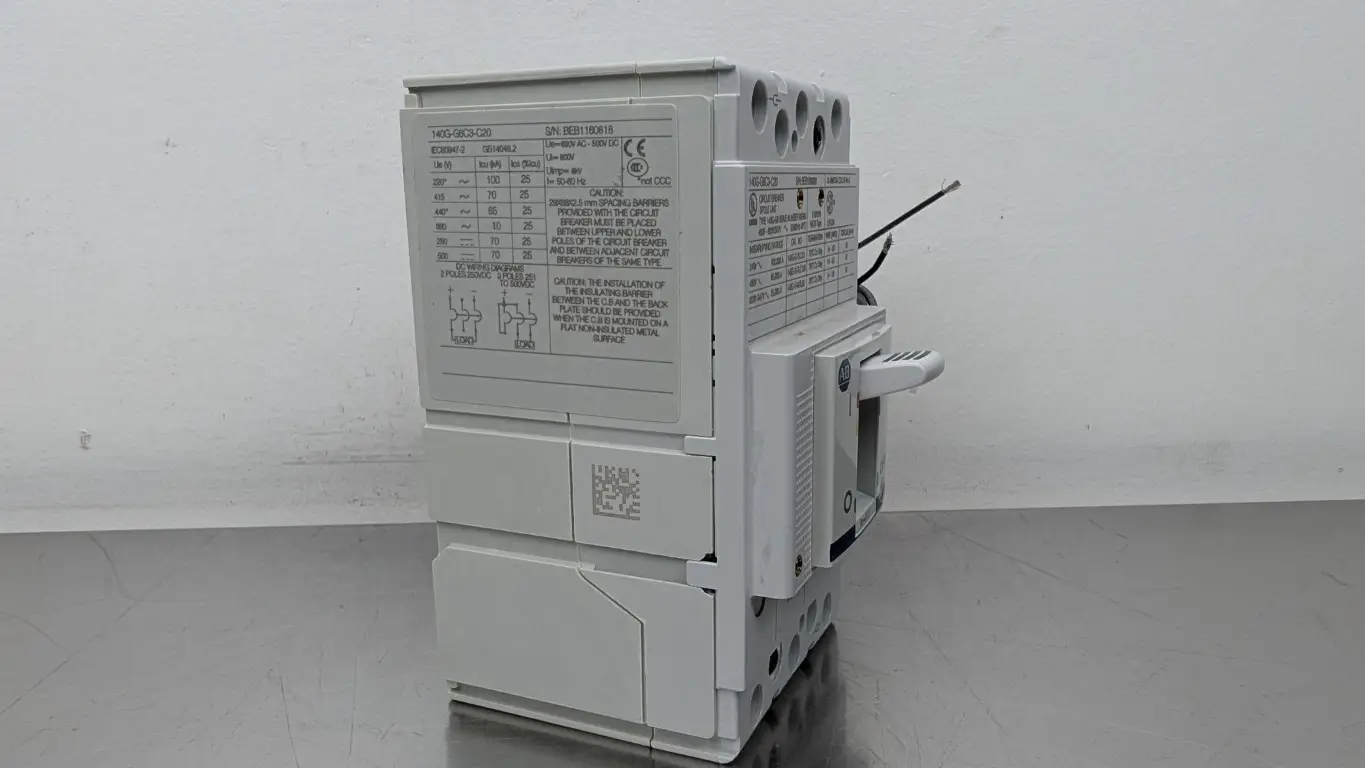

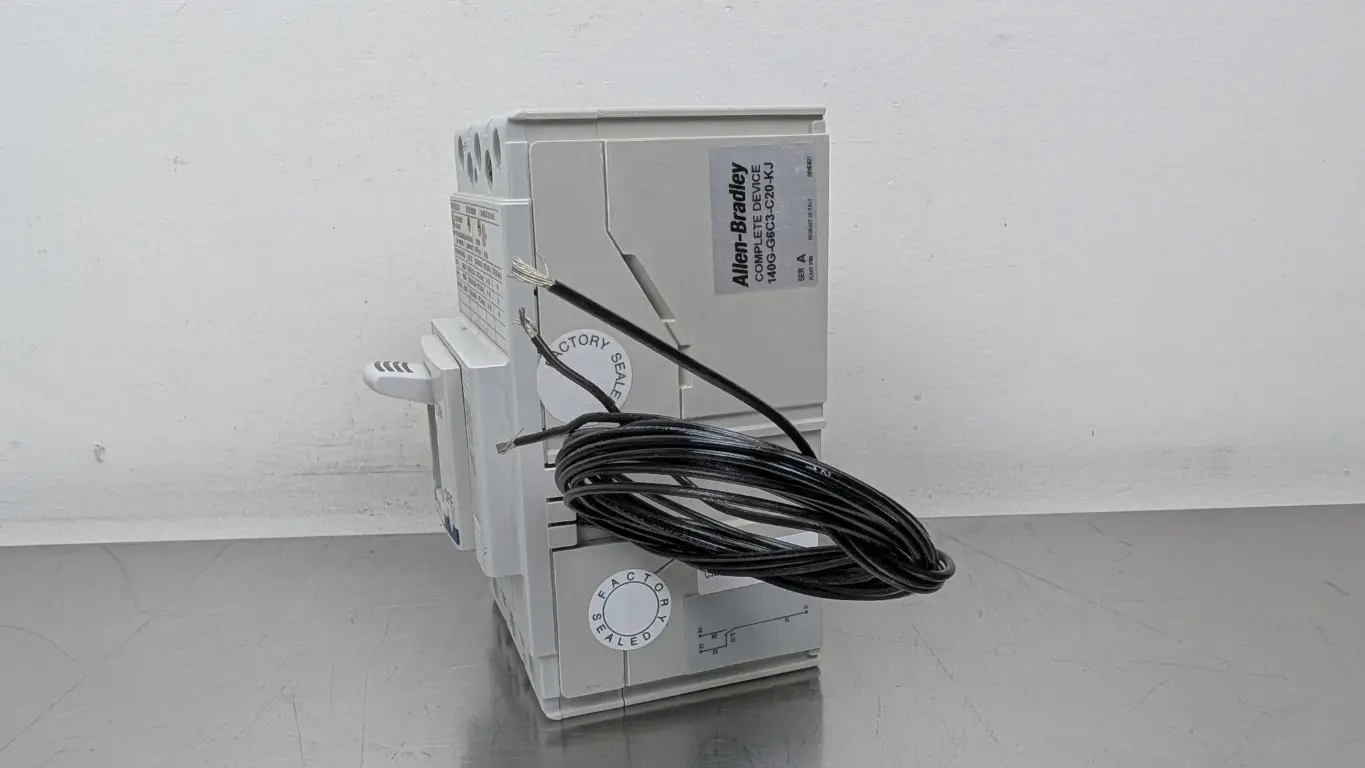

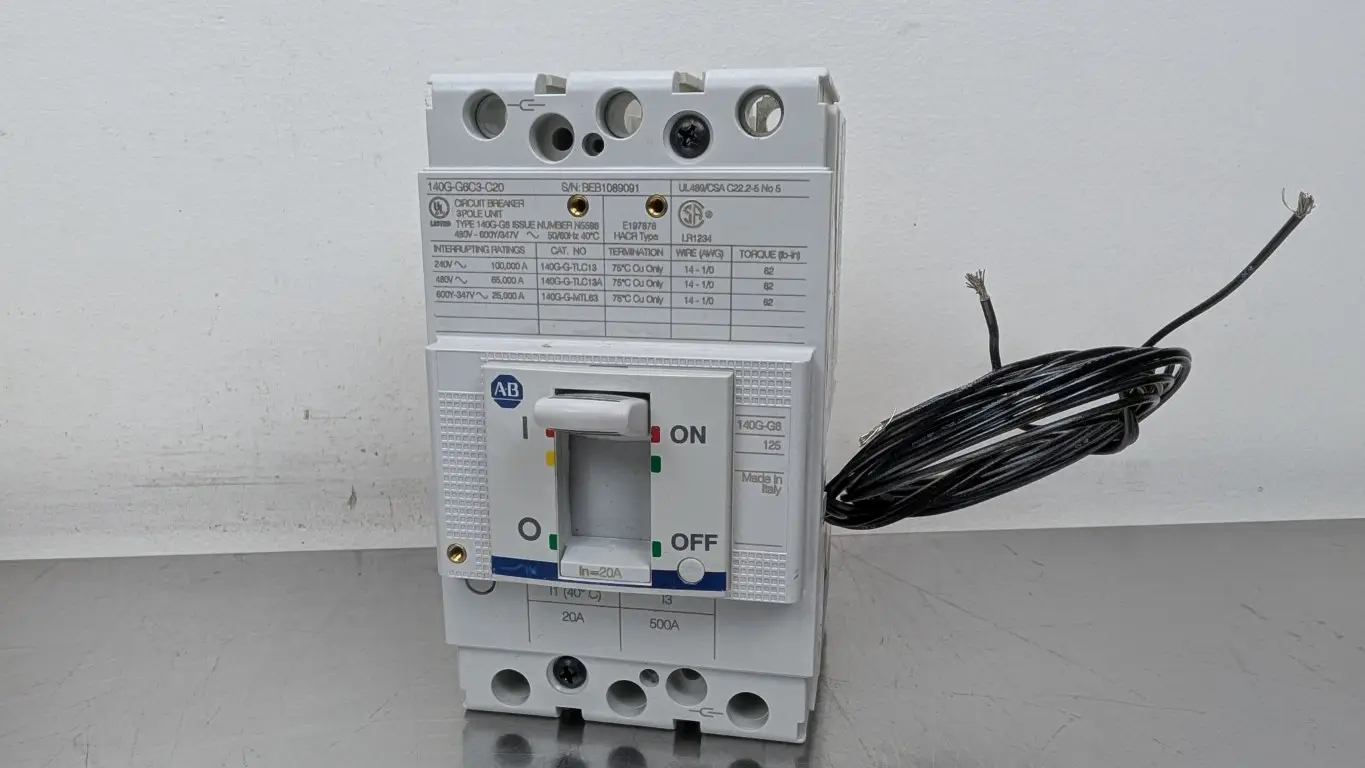

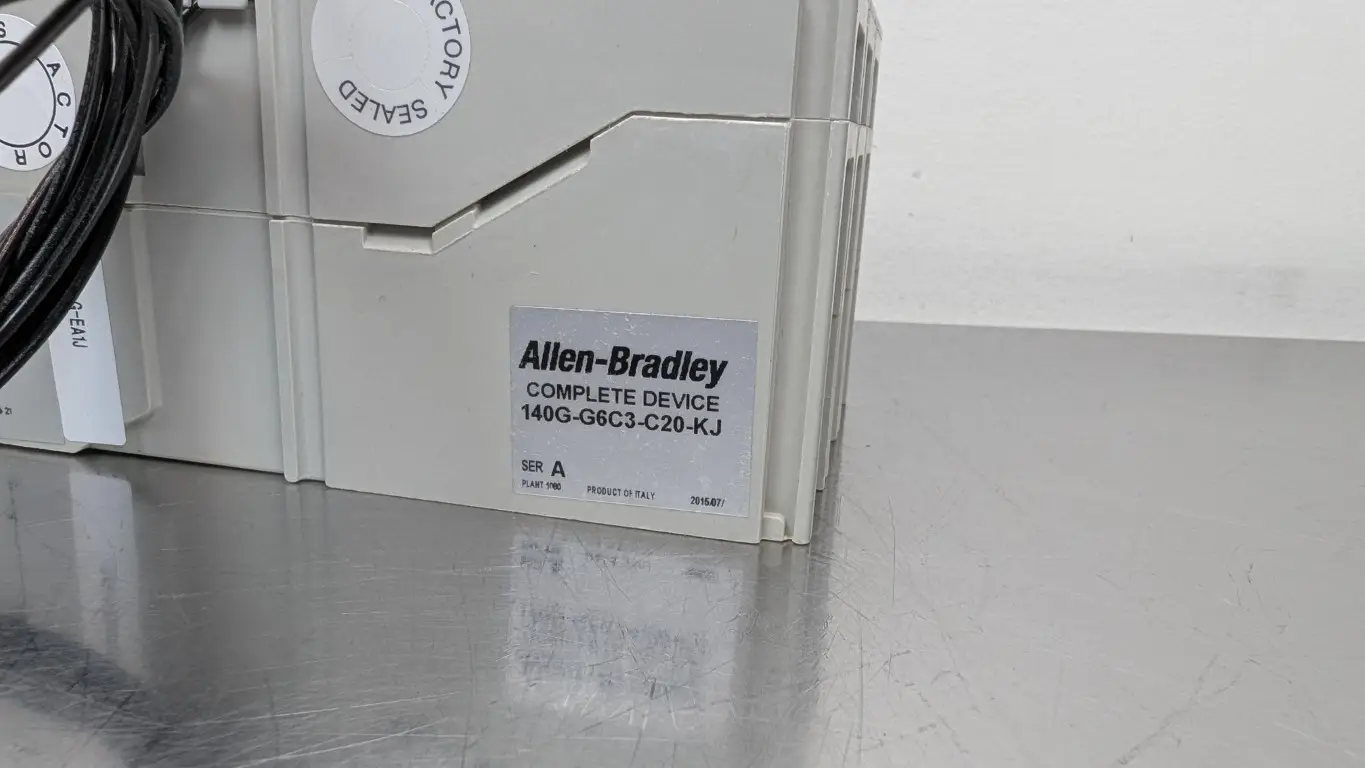

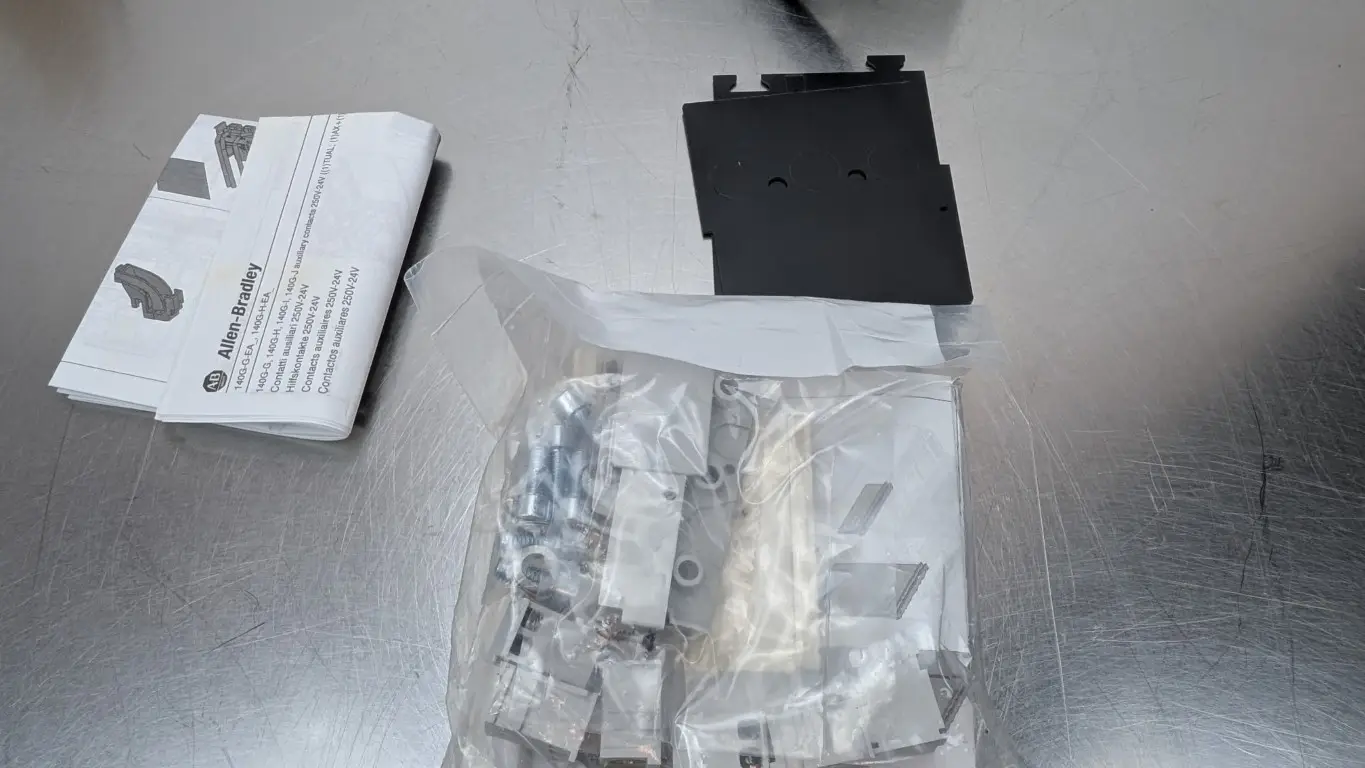

Allen-Bradley 140G-G6C3-C20-KJ Circuit Breaker Assembly Ser A 20A
Brand: Allen-Bradley | Model: 140G-G6C3-C20-KJ | Condition: New | NEO SKU: 15435-2-SA
Original price was: $735.31.$587.44Current price is: $587.44.
1 in stock
Free Shipping on orders over $50.
*(Domestic only)
Need it fast? Next Day Air available at check out.
Same Day Handling on orders prior to 2pm Eastern Monday – Friday
1 in stock
NEO SKU: 15435-2-SA | Category: Circuit Breakers
Allen-Bradley 140G-G6C3-C20-KJ Circuit Breaker Assembly Ser A 20A - New
Product Details
Condition: New
Brand: Allen-Bradley
Model: 140G-G6C3-C20-KJ
Series: A
Electrical
Input
Amps: 20A
GTIN: 00887172566288
Country of Origin: Italy
MFG Product Notes
Number of poles: 3
Number of auxiliary contacts as change-over contact: 1
With integrated under voltage release: FALSE
Integrated earth fault protection: FALSE
Complete device with protection unit: TRUE
Rated permanent current Iu: 20 A
Type of control element: Toggle
Rated impulse withstand voltage (Uimp): 8 kV
Thermal trip current (Ir = In (fixed)): 20 A
Magnetic trip current (Im): 500 A
Frame size: 125 A
Votlage for reverse-fed circuit breaker, max: 690V AC per IEC
Watt loss: Thermal magnetic type: 5.4 W
Insulation voltage (Ui): Rated 800V per IEC
Construction type: T/M-fixed thermal/fixed magnetic TMF
Thermal trip rating, max: 20 A @ ambient temperature 40 °C
Electrical life cycle: 8000 @ 415V AC
Interrupting rating: 65kA @ 480V, 50/60 Hz per NEMA, UL, CSA
Rated ultimate short-circuit breaking capacity (Icu): IEC 60947-2: 70kA @ 500V DC, 3-poles in series, thermal-magnetic trip unit only
Rated service short-circuit breaking capacity (Ics): IEC 60947-2: 75% lcu @ 500V DC, 3-poles in series, thermal-magnetic trip unit only
Motor drive integrated: FALSE
With switched-off indicator: FALSE
Motor drive optional: TRUE
Position of connection for main current circuit: Front side
Type of electrical connection of main circuit: Screw connection
MFG Description
Allen-Bradley is a leading provider of industrial automation and control solutions, including sensors, actuators, and control systems. Their products are used in various industries to improve productivity and reliability.
MFG URL
For more information about this product or Allen-Bradley, check out their website: https://rockwellautomation.com
Only logged in customers who have purchased this product may leave a review.
Related Products
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 8 × 8 × 8 in |
| Condition | New |
| Brand | Allen-Bradley |
| Model | 140G-G6C3-C20-KJ |
| Ser | A |
| PH | 3 |
| Input Amps | 20A |
| Origin | Italy |
| GTIN | 00887172566288 |
Allen-Bradley 140G-G6C3-C20-KJ Circuit Breaker Assembly Ser A 20A
Product Details
NEO SKU: 15435-2-SA
Condition: New
Brand: Allen-Bradley
Model: 140G-G6C3-C20-KJ
Description: Circuit Breaker Assembly
Series: A
Phase: 3
Input Amps: 20A
Origin: Italy
GTIN: 00887172566288
Manufacturer Notes: Number of poles: 3
Number of auxiliary contacts as change-over contact: 1
With integrated under voltage release: FALSE
Integrated earth fault protection: FALSE
Complete device with protection unit: TRUE
Rated permanent current Iu: 20 A
Type of control element: Toggle
Rated impulse withstand voltage (Uimp): 8 kV
Thermal trip current (Ir = In (fixed)): 20 A
Magnetic trip current (Im): 500 A
Frame size: 125 A
Votlage for reverse-fed circuit breaker, max: 690V AC per IEC
Watt loss: Thermal magnetic type: 5.4 W
Insulation voltage (Ui): Rated 800V per IEC
Construction type: T/M-fixed thermal/fixed magnetic TMF
Thermal trip rating, max: 20 A @ ambient temperature 40 °C
Electrical life cycle: 8000 @ 415V AC
Interrupting rating: 65kA @ 480V, 50/60 Hz per NEMA, UL, CSA
Rated ultimate short-circuit breaking capacity (Icu): IEC 60947-2: 70kA @ 500V DC, 3-poles in series, thermal-magnetic trip unit only
Rated service short-circuit breaking capacity (Ics): IEC 60947-2: 75% lcu @ 500V DC, 3-poles in series, thermal-magnetic trip unit only
Motor drive integrated: FALSE
With switched-off indicator: FALSE
Motor drive optional: TRUE
Position of connection for main current circuit: Front side
Type of electrical connection of main circuit: Screw connection
