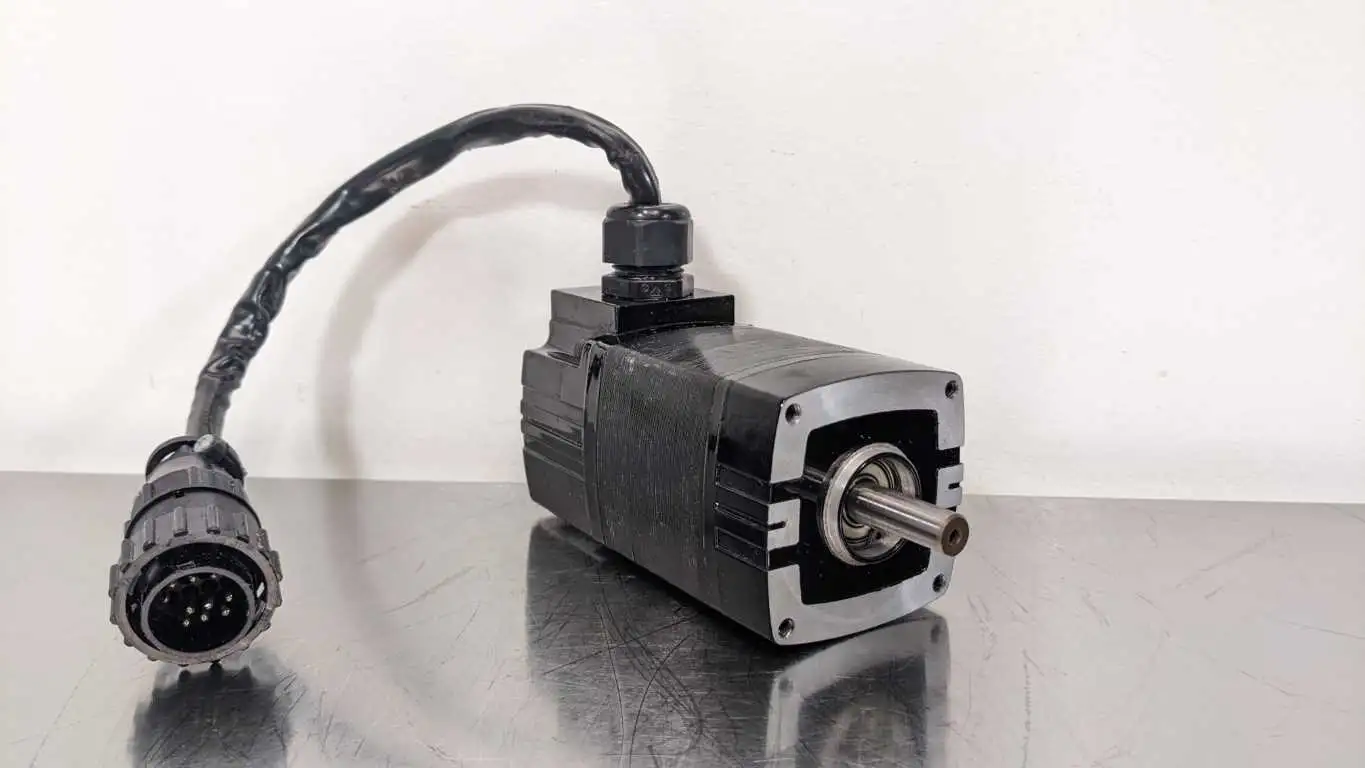

Bodine 22B4BEBL Brushless DC Gearmotor 1/5HP 130VDC 10,000 RPM 3314 20 Oz-i
Brand: Bodine | Model: 22B4BEBL | Condition: Used | NEO SKU: 12204-6
Original price was: $194.12.$148.48Current price is: $148.48.
5 in stock
Free Shipping on orders over $50.
*(Domestic only)
Need it fast? Next Day Air available at check out.
Same Day Handling on orders prior to 2pm Eastern Monday – Friday
5 in stock
NEO SKU: 12204-6 | Category: Gearmotors
Product Details for Used Bodine 22B4BEBL Brushless DC Gearmotor 1/5HP 130VDC 10,000 RPM 3314 20 Oz-i:
Condition: Used
Brand: Bodine
Model: 22B4BEBL
Capacity: 130VDC
Country of Origin: USA
HP: 1/5
RPM: 000, 10
Electrical
Input
Volts: 130VDC
Amps: 1.5A
MFG Product Notes
Speed (rpm): 10,000
Rated Torque (oz-in): 20
Rated Voltage: 130V
Motor HP: 1/5
Torque Constant (oz-in/A): 14
Voltage Constant (V/krpm): 9.8
Winding Resistance (ohms): 4.8
Winding Inductance (mH): 10
Rotor Inertia (oz-in-sec): 0.0072
Radial Load (lbs): 25
Length XH (inches): 4.63
Weight (lbs): 5.5
Connection Diagram: 07410268
Product Type: 22B4BEBL
HPDecimal: 0.375
Product Summary: 3314, 22B4BEBL, 1/5 HP, 10,000 RPM, 20 Oz-in, 130 Vdc, No Accessories Shaft, Brushless DC Gearmotor
STANDARD FEATURES:
Totally enclosed, non-ventilated (IP-44).

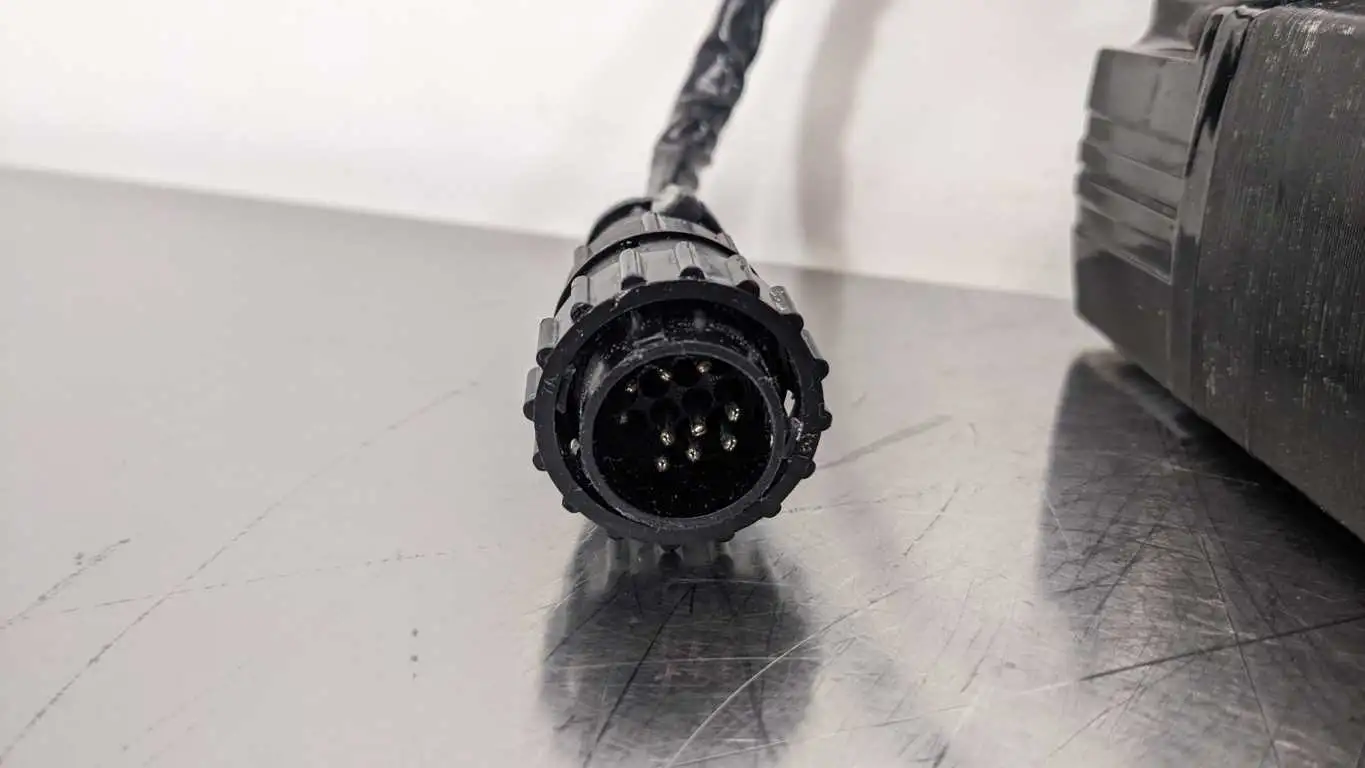

Plug-in connectors facilitate electrical connections.
Electronic commutation provides quiet operation and low electro-magnetic interference (EMI) while eliminating brushmaintenance and contamination from brush dirt.
Molded hall sensor assembly for accurate commutation.
Wound stator with exposed laminations provides excellent heat transfer and allows maximum power per motor frame size.
Rare earth magnets on the rotor provide high torque and low rotor inertia.
MFG Description
Bodine Electric Company is a leading manufacturer of fractional horsepower gearmotors, motors, and motion controls, providing reliable solutions for industrial and commercial applications.
MFG URL
For more information about this product or Bodine, check out their website: https://bodine-electric.com
Only logged in customers who have purchased this product may leave a review.
Related Products
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 8 × 8 × 7 in |
| Brand | Bodine |
| Model | 22B4BEBL |
| Input Volts | 130VDC |
| Input Amps | 1.5A |
| HP | 1/5 |
| Capacity | 130VDC |
| RPM | 000, 10 |
| Origin | USA |
| Condition | Used |
Product Details for Bodine 22B4BEBL Brushless DC Gearmotor 1/5HP 130VDC 10,000 RPM 3314 20 Oz-i
SKU: 12204-6
Condition: Used
Brand: Bodine
Model: 22B4BEBL
Additional Description: 130VDC 1.5A
Description: Brushless DC Gearmotor 3314 20 Oz-i
Electrical
Input Volts: 130VDC
Input Amps: 1.5A
HP: 1/5
Capacity: 130VDC
RPM: 10,000
Origin: USA
*Actual product may vary from images.*
Additional MFG Notes on Bodine 22B4BEBL Brushless DC Gearmotor 1/5HP 130VDC 10,000 RPM 3314 20 Oz-i:
Speed (rpm): 10,000
Rated Torque (oz-in): 20
Rated Voltage: 130V
Motor HP: 1/5
Torque Constant (oz-in/A): 14
Voltage Constant (V/krpm): 9.8
Winding Resistance (ohms): 4.8
Winding Inductance (mH): 10
Rotor Inertia (oz-in-sec): 0.0072
Radial Load (lbs): 25
Length XH (inches): 4.63
Weight (lbs): 5.5
Connection Diagram: 07410268
Product Type: 22B4BEBL
HPDecimal: 0.375
Product Summary: 3314, 22B4BEBL, 1/5 HP, 10,000 RPM, 20 Oz-in, 130 Vdc, No Accessories Shaft, Brushless DC Gearmotor
STANDARD FEATURES:
Totally enclosed, non-ventilated (IP-44).
Plug-in connectors facilitate electrical connections.
Electronic commutation provides quiet operation and low electro-magnetic interference (EMI) while eliminating brushmaintenance and contamination from brush dirt.
Molded hall sensor assembly for accurate commutation.
Wound stator with exposed laminations provides excellent heat transfer and allows maximum power per motor frame size.
Rare earth magnets on the rotor provide high torque and low rotor inertia.
