Colorado Video TD625CS Hi-Def Video Maker and Pattern Generator DVI-D Output

Colorado Video TD625CS Hi-Def Video Maker and Pattern Generator DVI-D Output

Product Details

SKU: 14817-3
Condition: New Surplus No Manufacturer Packaging
Brand: Colorado Video
Model: TD625CS Hi-Def
Description: Video Maker and Pattern Generator

Capacity: DVI-D Output
Origin: USA

Additional MFG Notes on Colorado Video TD625CS Hi-Def Video Maker and Pattern Generator DVI-D Output:
High Definition Units:

TD625CS (TVI/AHD to DVI/HDMI)

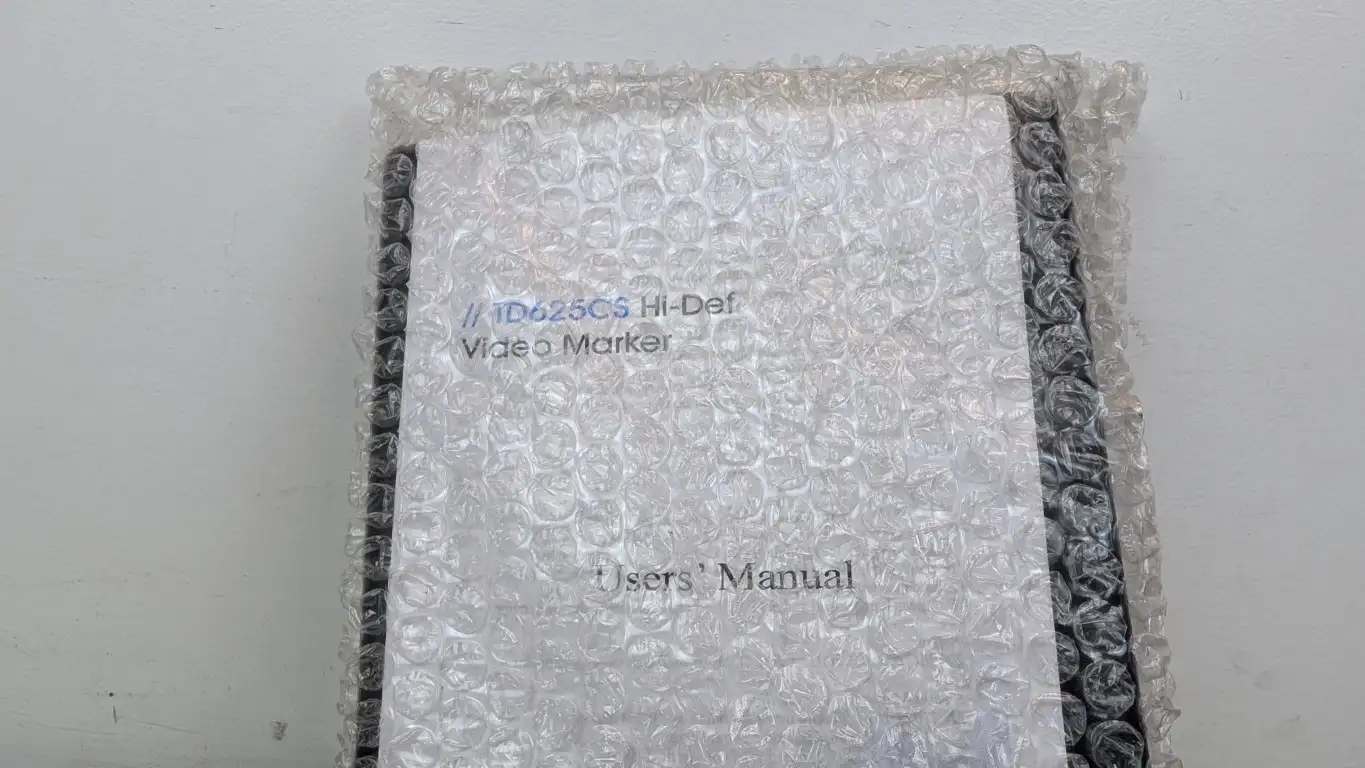

Owner’s Manual:
Manual-TD625CS.pdf
Input Signal:
TVI, CVI, or AHD Hi-Def Composite Analog

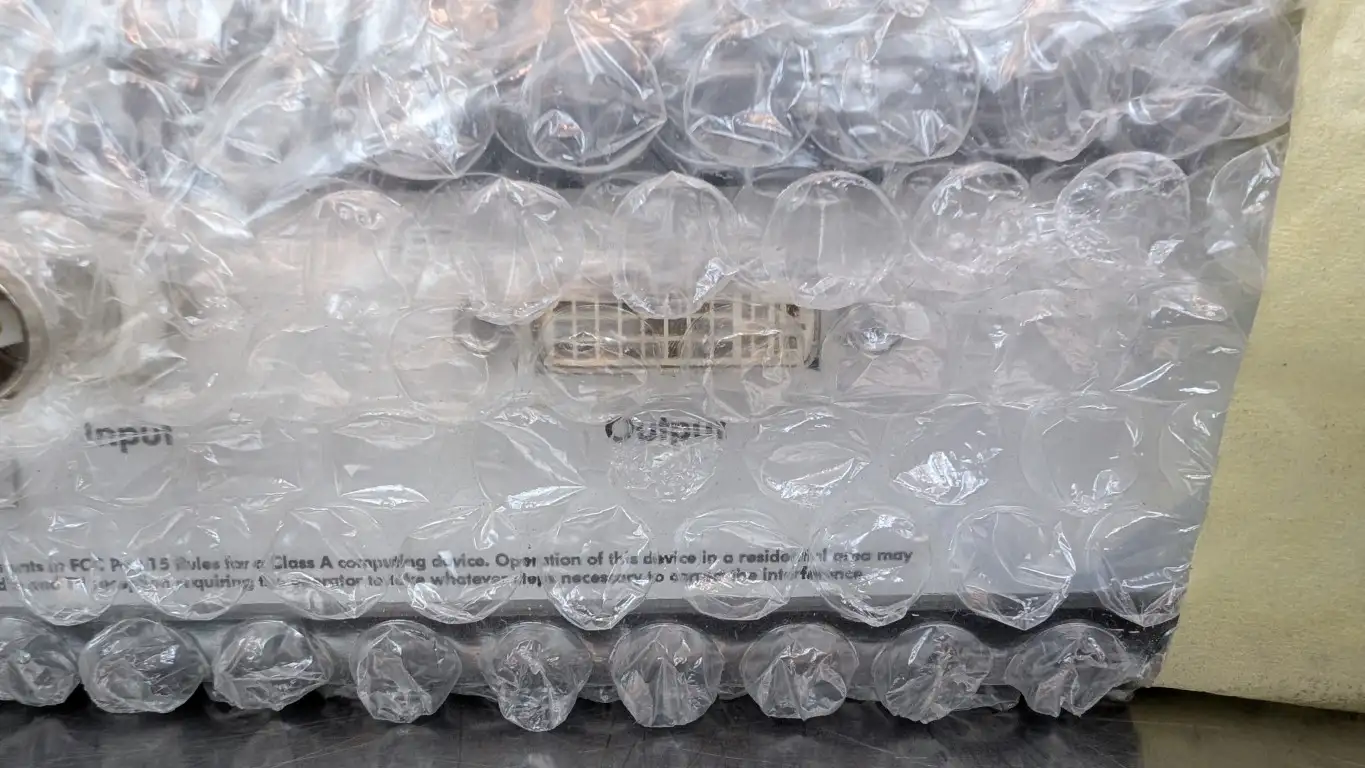

Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Superimposes up to 4 Objects onto a high definition video signal
Converts TVI, CVI, or AHD Input to DVI-D Output
Controls :
Pattern Display (Button Toggle): On/Off
Edit Layer 1 (Button Toggle): Selects/Deselects Layer 1 for editing.
Edit Layer 2 (Button Toggle): Selects/Deselects Layer 2 for editing.
Edit Layer 3 (Button Toggle): Selects/Deselects Layer 3 for editing.
Edit Layer 4 (Button Toggle): Selects/Deselects Layer 4 for editing.
Center (Button): Moves Selcted Layers to Image Center
Reset (Button): Resets Selected Layers to Zero Rotation
1:1 (Button): Resets Aspect Ratio, Sets Selected Layers to 1:1 H:V Dimensions
Select (Button): Steps Through Parameters to be Adjusted by Multi-Function Knobs for Selected Layers: Position/Rotation/Line Width/Aspect Ratio/Size/Shadow Intensity/Line Intensity
Layer Type (Button): Steps Through Object Types for Selected Layers: Circle/Rectangle/Crosshair
Color (Button): Steps Through Color Pallet (White/Black/Red/Green/Blue/Magenta/Cyan/Yellow) for Selected Layers
Knob (upper Multi-Function Knob) Adjusts H-Position, Rotation, Aspect Ratio, or Shadow Intensity for Selected Layers
Knob (lower Multi-Function Knob) Adjusts V-Position, Line Width, Size, or Line Intensity for Selected Layers
Indicators:
Power (Flashing), Video OK (Steady)
Pattern Off
Layer 1 Selected for editing.
Layer 2 Selected for editing.
Layer 3 Selected for editing.
Layer 4 Selected for editing.
Multi-Function Knobs Adjust H-Position & V-Position for Selected Layers
Multi-Function Knobs Adjust Rotation & Line Width for Selected Layers
Multi-Function Knobs Adjust Aspect Ratio & Size for Selected Layers
Multi-Function Knobs Adjust Shadow Intensity & Line Intensity for Selected Layers
Model:
TD625CS: TVI/AHD Input, DVI/HDMI Output
Size: 8.875″W x 6.5″L x 2.75″H sloping to 1.25″H
Chassis: Black ABS
Mounting: Free standing desktop

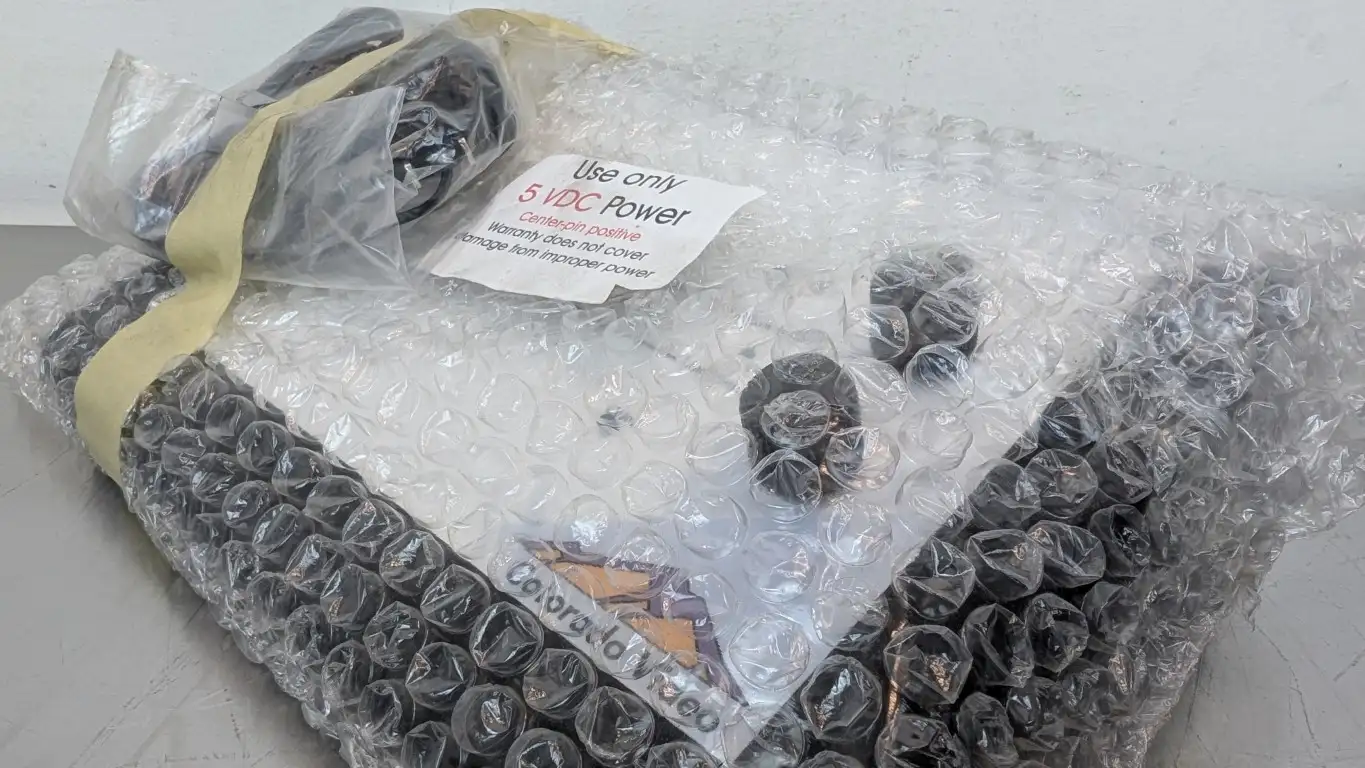

Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
