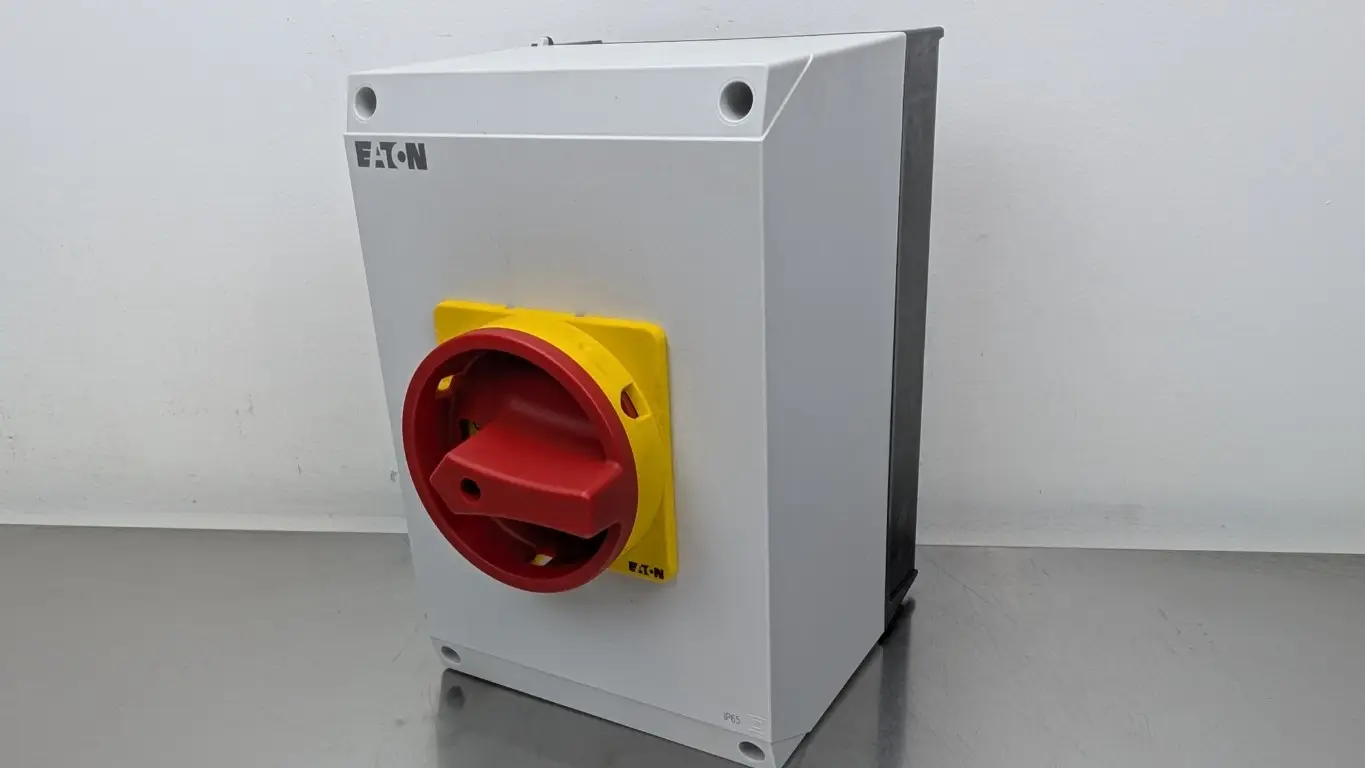

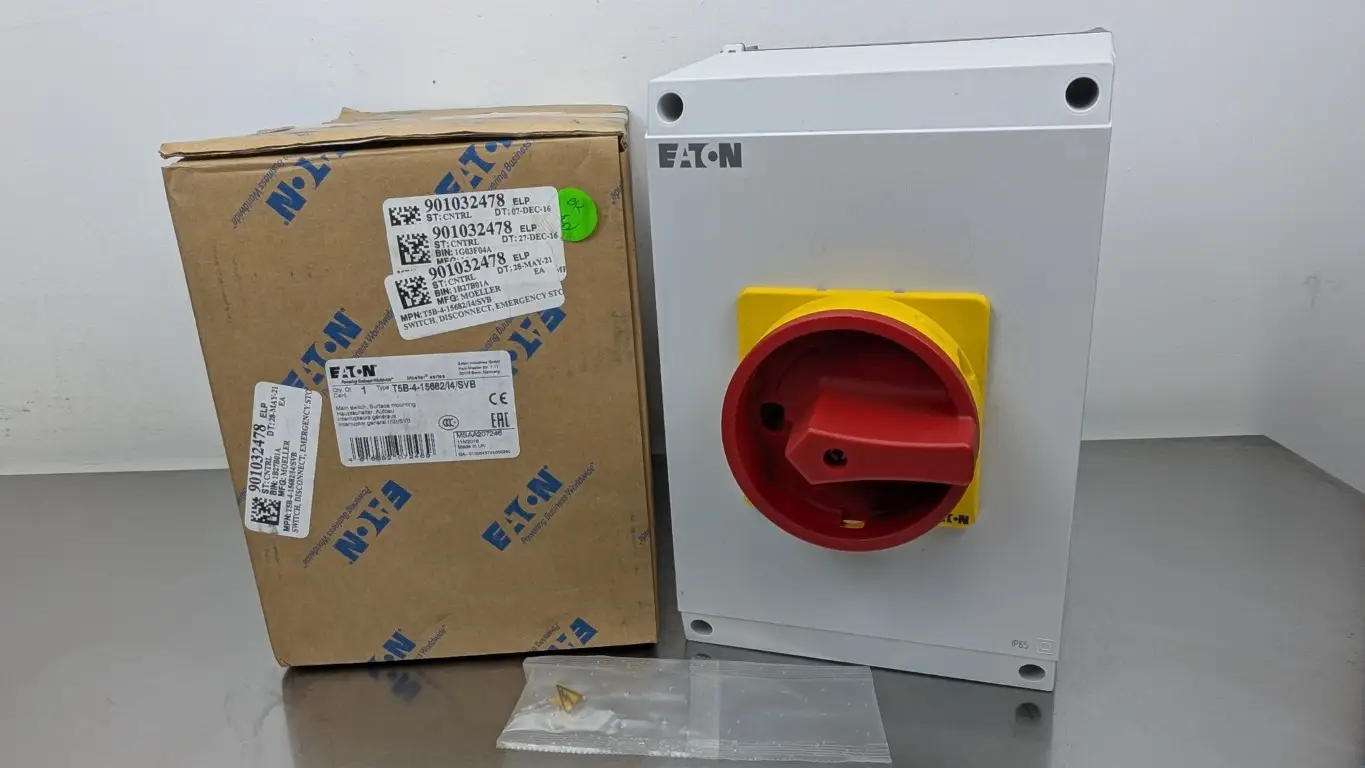

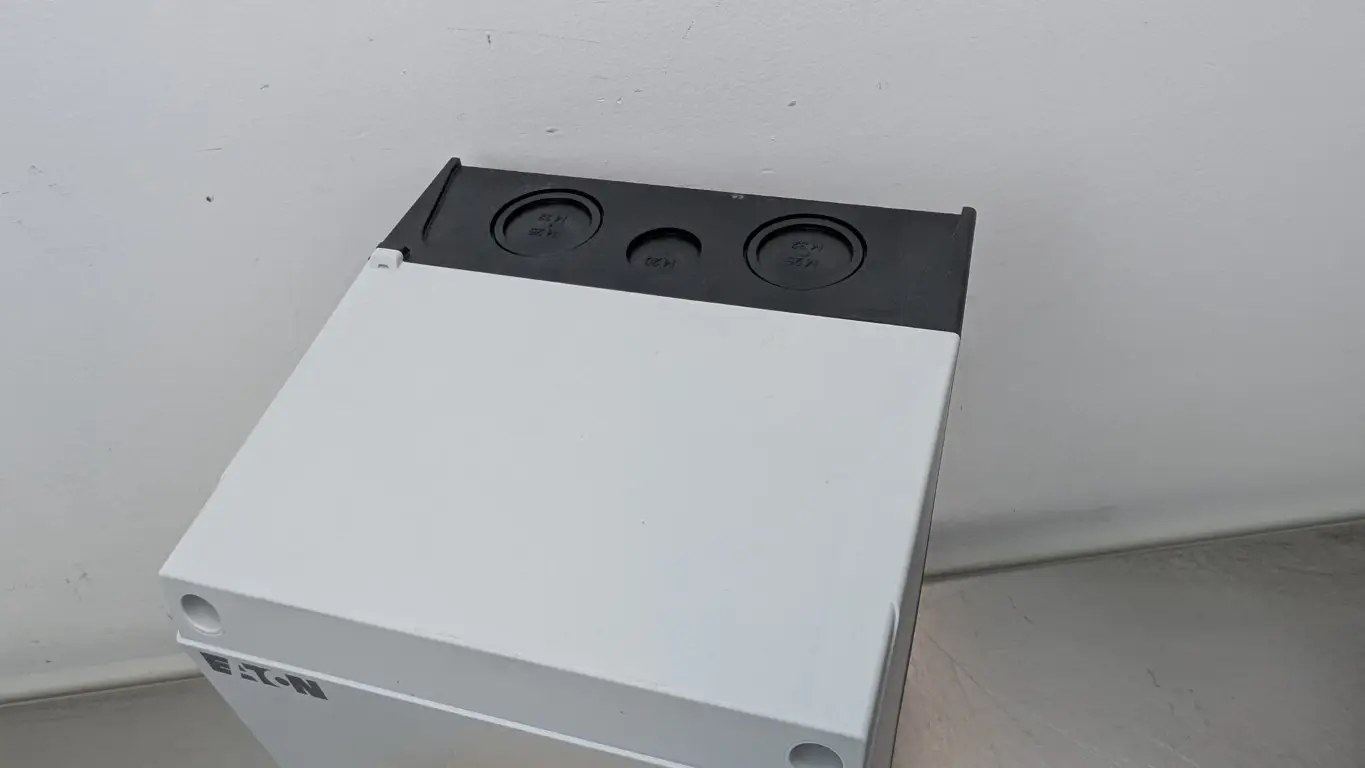

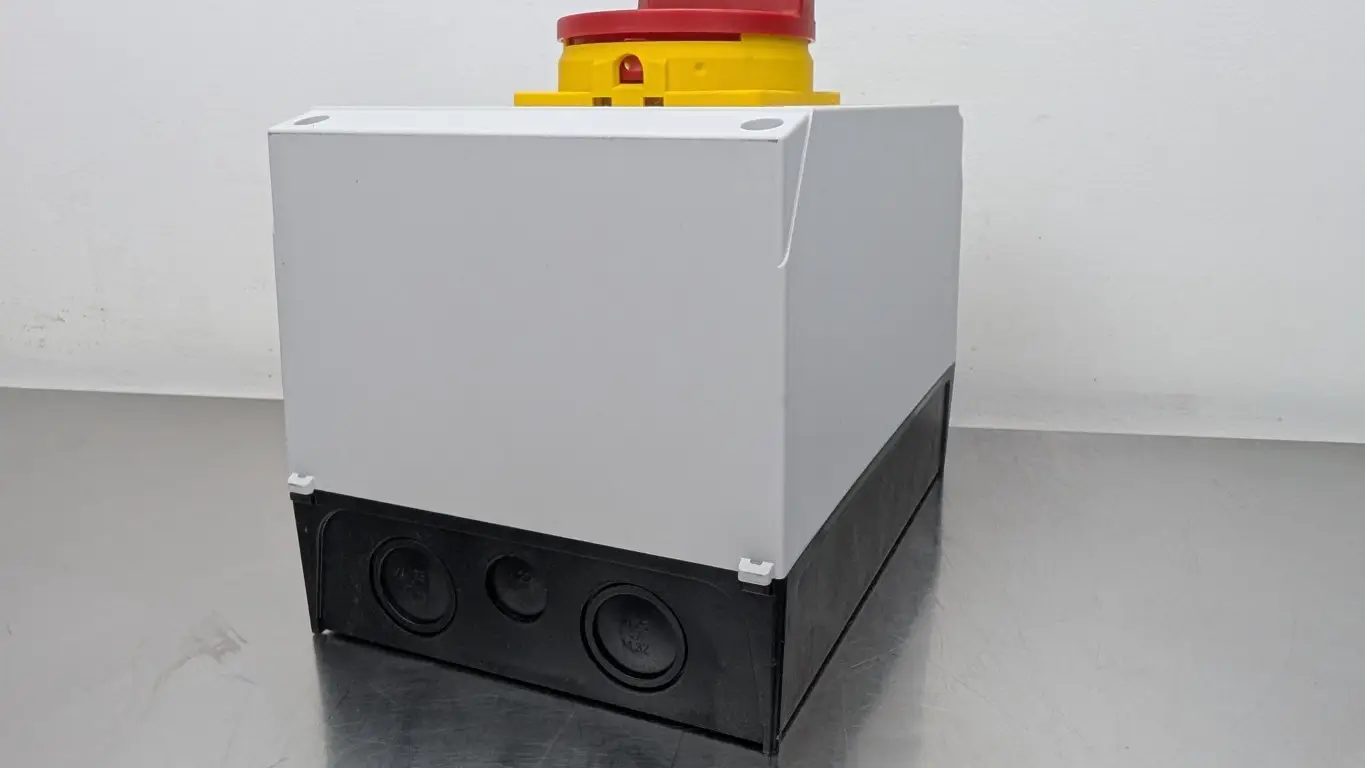

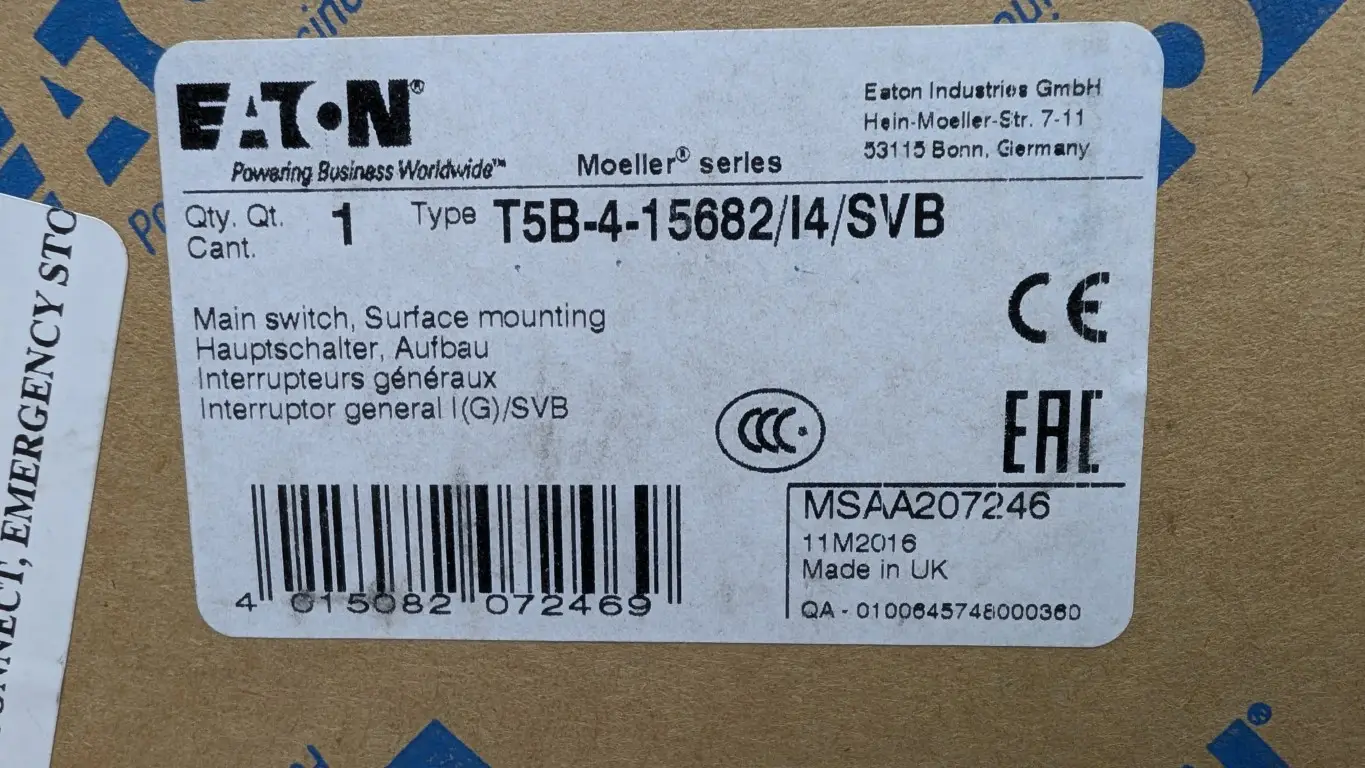

Eaton T5B-4-15682/I4/SVB Rotary Main Switch Disconnect 207246 63A Red

Eaton T5B-4-15682/I4/SVB Rotary Main Switch Disconnect 207246 63A Red

Product Details

NEO SKU: 15531-2
Condition: New
Brand: Eaton
Model: T5B-4-15682/I4/SVB
MPN: 207246
Description: Rotary Main Switch Disconnect
Input Amps: 63A
Color: Red
Origin: United Kingdom
EAN: 4015082072469
Manufacturer Notes: Product Name: Eaton Moeller® series T5B Main switch
Catalog Number: 207246
Model Code: T5B-4-15682/I4/SVB
EAN: 4015082072469
Product Length/Depth: 240 mm
Product Height: 204 mm
Product Width: 160 mm
Product Weight: 1.861 kg
“Certifications: IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
CSA-C22.2 No. 94
IEC/EN 60204
CSA Class No.: 3211-05
IEC/EN 60947-3
UL File No.: E36332
CSA
CSA File No.: 012528
UL
UL 60947-4-1
CE
CSA-C22.2 No. 60947-4-1-14”
Catalog Notes: Rated Short-time Withstand Current (Icw) for a time of 1 second
Global Catalog: 207246
Product Type: Main switch
Product specifications:
Product Category: Main switch
“Features: Version as maintenance-/service switch
Version as emergency stop installation
Version as main switch”
Actuator color: Red
10.10 Temperature rise: The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating: Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility: Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function: The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance: Meets the product standard’s requirements.
10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard’s requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat: Meets the product standard’s requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects: Meets the product standard’s requirements.
10.2.4 Resistance to ultra-violet (UV) radiation: UV resistance only in connection with protective shield.
10.2.5 Lifting: Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact: Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions: Meets the product standard’s requirements.
10.3 Degree of protection of assemblies: Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances: Meets the product standard’s requirements.
10.5 Protection against electric shock: Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components: Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections: Is the panel builder’s responsibility.
10.8 Connections for external conductors: Is the panel builder’s responsibility.
10.9.2 Power-frequency electric strength: Is the panel builder’s responsibility.
10.9.3 Impulse withstand voltage: Is the panel builder’s responsibility.
10.9.4 Testing of enclosures made of insulating material: Is the panel builder’s responsibility.

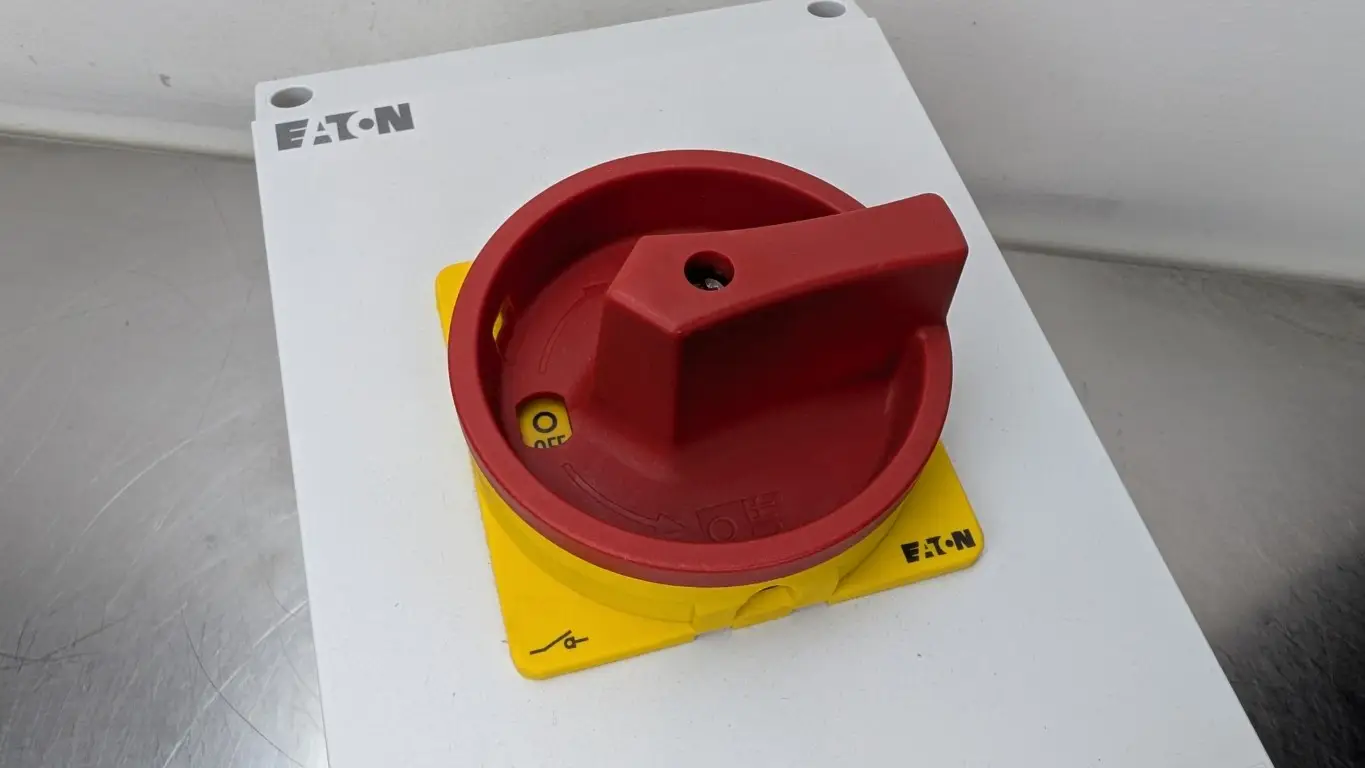

Fitted with:: Red rotary handle and yellow locking ring
Operating frequency: 1200 Operations/h
Pollution degree: 3
“Climatic proofing: Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30”
Rated impulse withstand voltage (Uimp): 6000 V AC
Rated operational power star-delta at 500 V, 50 Hz: 37 kW
Rated operational power star-delta at 690 V, 50 Hz: 22 kW
Rated permanent current at AC-21, 400 V: 63 A
Rated permanent current at AC-23, 400 V: 63 A
Rated uninterrupted current (Iu): 63 A
Static heat dissipation, non-current-dependent Pvs: 0 W
Switching angle: 90 °
Switching power at 400 V: 30 kW
Voltage per contact pair in series: 60 V
Rated operational power at AC-3, 500 V, 50 Hz: 22 kW
Device construction: Complete device in housing
“Rated short-time withstand current (Icw): 1,3 kA, Contacts, 1 second
1.3 kA”
Electrical connection type of main circuit: Screw connection
Design: 15682
Mounting position: As required
Actuator type: Door coupling rotary drive
Ambient operating temperature – max: 40 °C
Ambient operating temperature – min: -25 °C
Ambient operating temperature (enclosed) – max: 40 °C
Ambient operating temperature (enclosed) – min: -25 °C
Assigned motor power at 115/120 V, 60 Hz, 1-phase: 3 HP
Assigned motor power at 200/208 V, 60 Hz, 1-phase: 7.5 HP
Assigned motor power at 200/208 V, 60 Hz, 3-phase: 15 HP
Assigned motor power at 230/240 V, 60 Hz, 1-phase: 10 HP
Assigned motor power at 230/240 V, 60 Hz, 3-phase: 15 HP
Assigned motor power at 460/480 V, 60 Hz, 3-phase: 40 HP
Assigned motor power at 575/600 V, 60 Hz, 3-phase: 40 HP
Equipment heat dissipation, current-dependent Pvid: 4.5 W
Heat dissipation capacity Pdiss: 0 W
Heat dissipation per pole, current-dependent Pvid: 4.5 W
Number of auxiliary contacts (change-over contacts): 0
Number of auxiliary contacts (normally closed contacts): 1
Rated conditional short-circuit current (Iq): 2 kA
Overvoltage category: III
Control circuit reliability: 1 failure per 100,000 switching operations statistically determined, at 24 V DC, 10 mA)
Degree of protection (front side): IP65
Number of poles: 6
Mounting method: Surface mounting
Degree of protection: NEMA 12
“Suitable for: Branch circuits, suitable as motor disconnect, (UL/CSA)
Ground mounting”
Locking facility: Lockable in the 0 (Off) position
“Functions: Interlockable
Emergency switching off function”
Number of switches: 1
Safe isolation: 440 V AC, Between the contacts, According to EN 61140
Screw size: M6, Terminal screw
Shock resistance: 15 g, Mechanical, According to IEC/EN 60068-2-27, Half-sinusoidal shock 20 ms
Lifespan, mechanical: 500,000 Operations
“Load rating: 1.3 x Iₑ (with intermittent operation class 12, 60 % duty factor)
2 x Iₑ (with intermittent operation class 12, 25 % duty factor)
1.6 x Iₑ (with intermittent operation class 12, 40 % duty factor)”
“Terminal capacity: 1 x (2.5 – 35) mm², solid or stranded
12 – 4 AWG, solid or flexible with ferrule
1 x (1 – 25) mm², flexible with ferrules to DIN 46228
2 x (2.5 – 16) mm², solid or stranded
2 x (1.5 – 10) mm², flexible with ferrule to DIN 46228”
Switching capacity (main contacts, general use): 63 A, Rated uninterrupted current max. (UL/CSA)
Safety parameter (EN ISO 13849-1): B10d values as per EN ISO 13849-1, table C.1
Number of auxiliary contacts (normally open contacts): 1
Number of contact units: 4
Number of contacts in series at DC-23A, 120 V: 3
Number of contacts in series at DC-23A, 24 V: 1
Number of contacts in series at DC-23A, 240 V: 6
Number of contacts in series at DC-23A, 48 V: 2
Number of contacts in series at DC-23A, 60 V: 3
Rated breaking capacity at 220/230 V (cos phi to IEC 60947-3): 520 A
Rated breaking capacity at 400/415 V (cos phi to IEC 60947-3): 600 A
Rated breaking capacity at 500 V (cos phi to IEC 60947-3): 480 A
Rated breaking capacity at 660/690 V (cos phi to IEC 60947-3): 340 A
Rated making capacity up to 690 V (cos phi to IEC/EN 60947-3): 800 A
Rated operating voltage (Ue) – max: 690 V
Rated operating voltage (Ue) – min: 690 V
Rated operational voltage (Ue) at AC – max: 690 V
“Short-circuit current rating (high fault): 10 kA, SCCR (UL/CSA)
100 A, Class J, max. Fuse, SCCR (UL/CSA)”
Short-circuit protection rating: 80 A gG/gL, Fuse, Contacts
Rated operational current (Ie) at AC-21, 440 V: 63 A
Rated operational current (Ie) at AC-23A, 230 V: 63 A
Rated operational current (Ie) at AC-23A, 400 V, 415 V: 63 A
Rated operational current (Ie) at AC-23A, 500 V: 33 A
Rated operational current (Ie) at AC-23A, 690 V: 23.8 A
Rated operational current (Ie) at AC-3, 220 V, 230 V, 240 V: 51 A
Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V: 41 A
Rated operational current (Ie) at AC-3, 500 V: 33 A
Rated operational current (Ie) at AC-3, 660 V, 690 V: 17 A
Rated operational current (Ie) at DC-1, load-break switches l/r = 1 ms: 63 A
Rated operational current (Ie) at DC-13, control switches L/R = 50 ms: 25 A
Rated operational current (Ie) at DC-23A, 120 V: 25 A
Rated operational current (Ie) at DC-23A, 24 V: 50 A
Rated operational current (Ie) at DC-23A, 240 V: 20 A
Rated operational current (Ie) at DC-23A, 48 V: 50 A
Rated operational current (Ie) at DC-23A, 60 V: 50 A
Rated operational current (Ie) star-delta at AC-3, 220/230 V: 63 A
Rated operational current (Ie) star-delta at AC-3, 380/400 V: 63 A
Rated operational current (Ie) star-delta at AC-3, 500 V: 57.2 A
Rated operational current (Ie) star-delta at AC-3, 690 V: 29.4 A
Rated operational current for specified heat dissipation (In): 63 A
Rated operational power at AC-23A, 220/230 V, 50 Hz: 18.5 kW
Rated operational power at AC-23A, 400 V, 50 Hz: 30 kW
Rated operational power at AC-23A, 500 V, 50 Hz: 22 kW
Rated operational power at AC-23A, 690 V, 50 Hz: 22 kW
Rated operational power at AC-3, 380/400 V, 50 Hz: 22 kW
Rated operational power at AC-3, 415 V, 50 Hz: 22 kW
Rated operational power at AC-3, 690 V, 50 Hz: 15 kW
Rated operational power star-delta at 220/230 V, 50 Hz: 18.5 kW
Rated operational power star-delta at 380/400 V, 50 Hz: 30 kW
“Tightening torque: 4 Nm, Screw terminals
35.4 lb-in, Screw terminals”
Uninterrupted current: Rated uninterrupted current Iu is specified for max. cross-section.
“Rated Switching Capacity: 10 HP at 240 V AC, single-phase
15 HP at 200 V AC, three-phase
15 HP at 240 V AC, three-phase
3 HP at 120 V AC, single-phase
40 HP at 480 V AC, three-phase
40 HP at 600 V AC, three-phase
7.5 HP at 200 V AC, single-phase”
Housing color: Gray
Housing material: Plastic

*Actual product may vary from images.*
