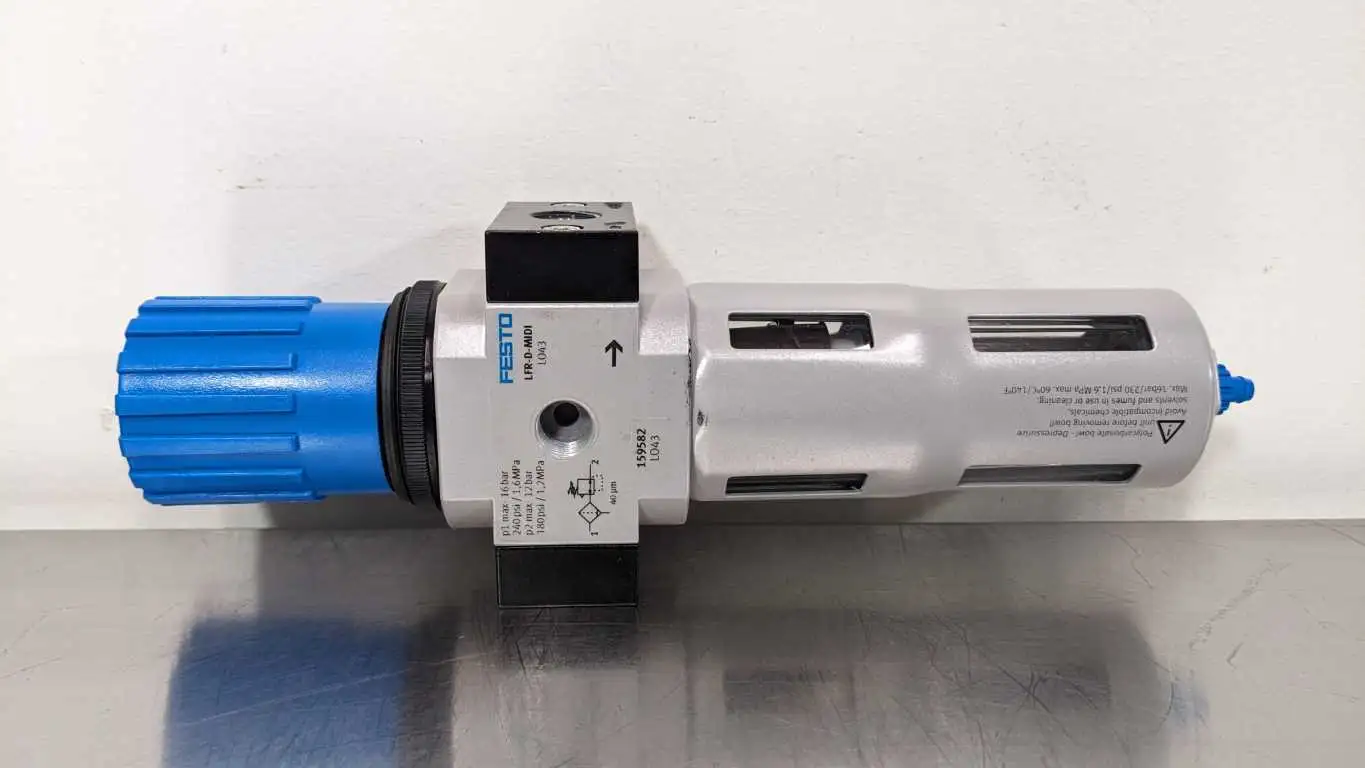

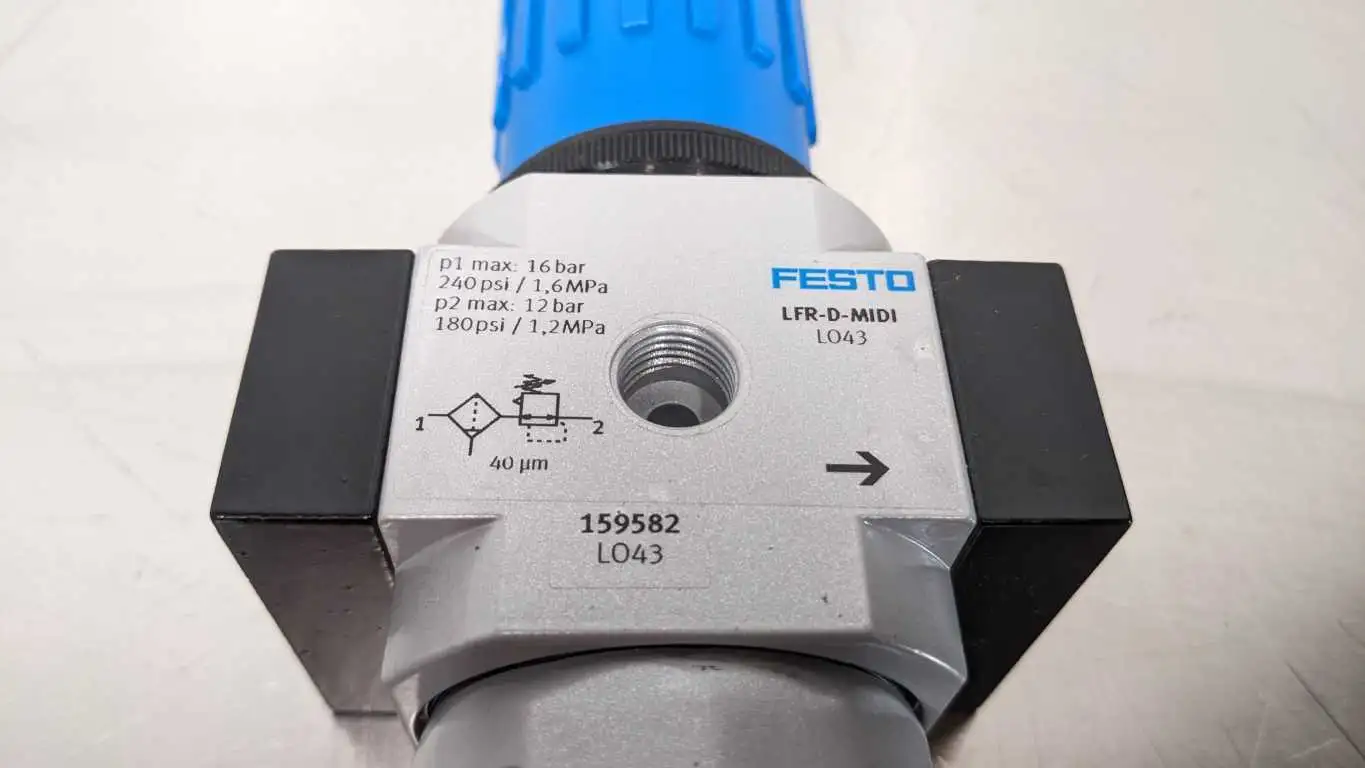

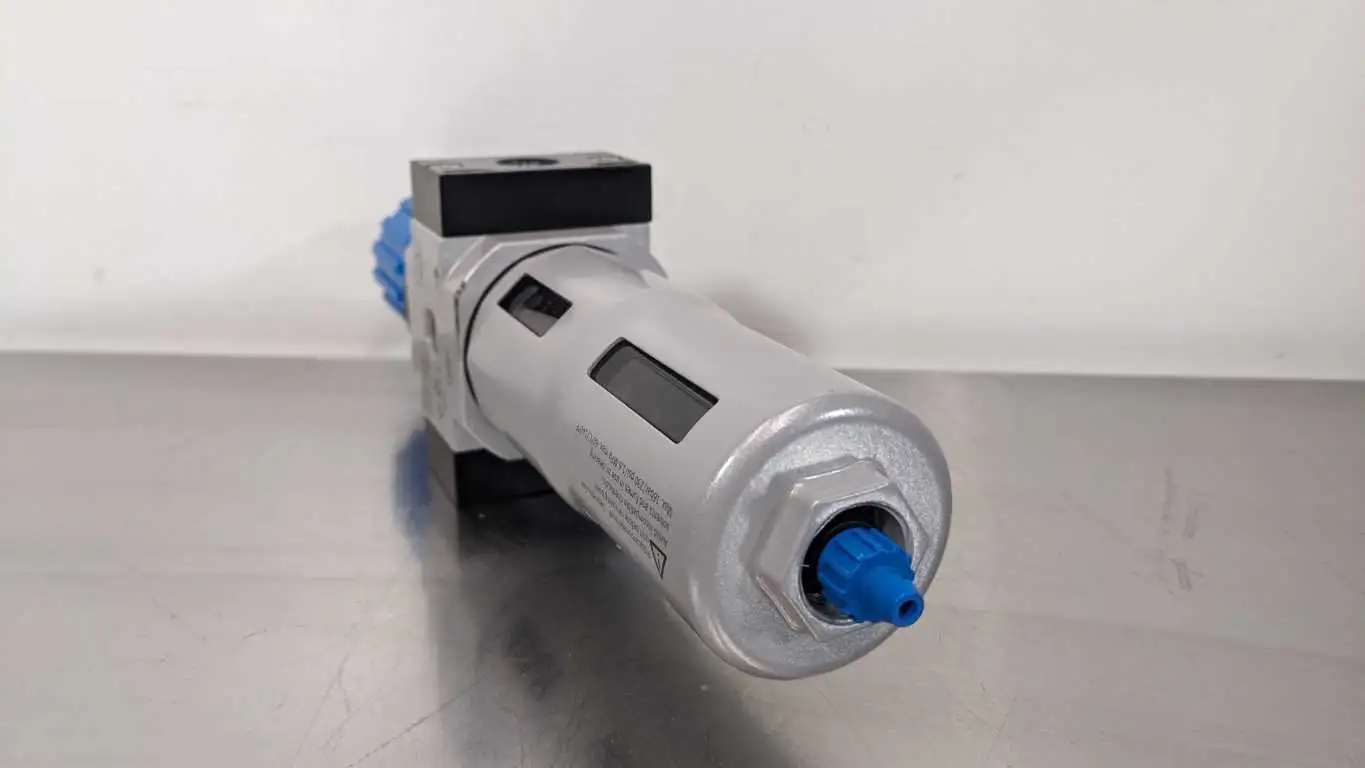

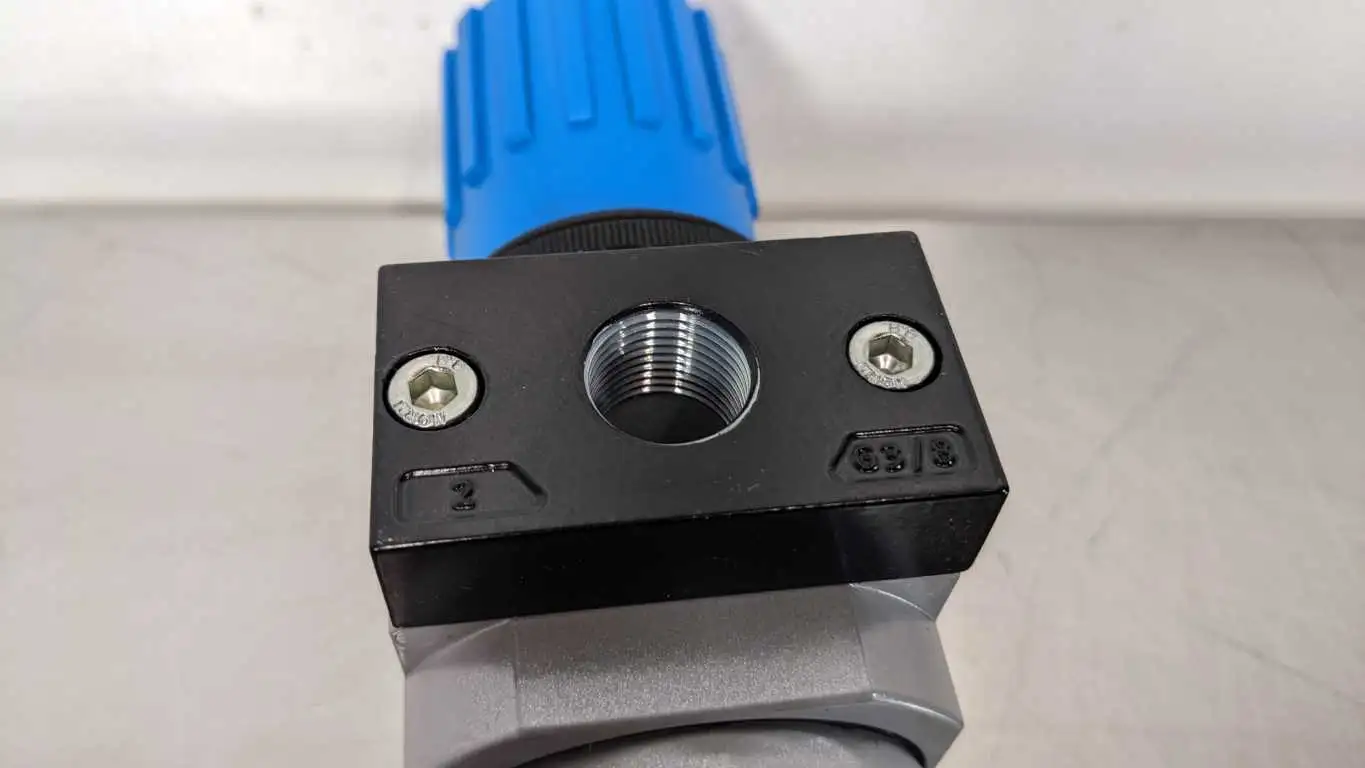

Festo LFR-D-MIDI Filter Regulator 1/2″
Brand: Festo | Model: LFR-D-MIDI | Condition: New – Open box | NEO SKU: 12349-9
Original price was: $111.77.$87.39Current price is: $87.39.
1 in stock
Free Shipping on orders over $50.
*(Domestic only)
Need it fast? Next Day Air available at check out.
Same Day Handling on orders prior to 2pm Eastern Monday – Friday
1 in stock
NEO SKU: 12349-9 | Category: Filter Regulator Lubricators
Product Details for New – Open box Festo LFR-D-MIDI Filter Regulator 1/2″:
Condition: New – Open box
Brand: Festo
Model: LFR-D-MIDI
Capacity: 1/2″
MFG Product Notes
Technical Data
Size: Midi
Series: D
Actuator lock: Rotary knob with detent
Mounting position: Vertical +/- 5°
Grade of filtration: 40 µm
Condensate drain: Fully automatic
Structural design: Filter regulator with pressure gauge
Max. condensate volume: 43 ml
Bowl guard: Metal bowl guard
Symbol: 00991583
Pressure gauge: with pressure gauge
Operating pressure: 2 bar … 12 bar
Pressure regulation range: 0.5 bar … 7 bar
Max. pressure hysteresis: 0.2 bar
Standard nominal flow rate: 3900 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:9:-], Inert gas
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 – Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C … 60 °C
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:8:4], Inert gas
Temperature of medium: 5 °C … 60 °C
Ambient temperature: 5 °C … 60 °C
Product weight: 900 g
Type of mounting:
Optionally:
Line installation
With accessories
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Note on materials: RoHS-compliant
Housing material: Die-cast zinc
Material of bowl: PC
MFG Description
Festo is a leading provider of automation technology and industrial training, offering a wide range of products, including pneumatic and electric actuators, sensors, and control systems, known for their innovation and quality.
MFG URL
For more information about this product or Festo, check out their website: https://festo.com
Only logged in customers who have purchased this product may leave a review.
Related Products
Additional information
| Weight | 5 lbs |
|---|---|
| Dimensions | 13 × 7 × 7 in |
| Brand | Festo |
| Model | LFR-D-MIDI |
| Capacity | 1/2" |
| Condition | New – Open box |
Product Details for Festo LFR-D-MIDI Filter Regulator 1/2″
SKU: 12349-9
Condition: New Surplus
Condition Notes: No box, no signs of being installed.
Brand: Festo
Model: LFR-D-MIDI
Description: Filter Regulator
Capacity: 1/2″
Additional MFG Notes on Festo LFR-D-MIDI Filter Regulator 1/2″:
Technical Data
Size: Midi
Series: D
Actuator lock: Rotary knob with detent
Mounting position: Vertical +/- 5°
Grade of filtration: 40 µm
Condensate drain: Fully automatic
Structural design: Filter regulator with pressure gauge
Max. condensate volume: 43 ml
Bowl guard: Metal bowl guard
Symbol: 00991583
Pressure gauge: with pressure gauge
Operating pressure: 2 bar … 12 bar
Pressure regulation range: 0.5 bar … 7 bar
Max. pressure hysteresis: 0.2 bar
Standard nominal flow rate: 3900 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:9:-], Inert gas
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 – Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C … 60 °C
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [7:8:4], Inert gas
Temperature of medium: 5 °C … 60 °C
Ambient temperature: 5 °C … 60 °C
Product weight: 900 g
Type of mounting:
Optionally:
Line installation
With accessories
Pneumatic connection 1: G1/2
Pneumatic connection 2: G1/2
Note on materials: RoHS-compliant
Housing material: Die-cast zinc
Material of bowl: PC
