Festo SLT-25-10-P-A Mini Slide 170574 Pistion Dia 10mm x 25mm Stroke
Brand: Festo | Model: SLT-25-10-P-A | Condition: New | NEO SKU: 15323-2
Original price was: $941.20.$751.92Current price is: $751.92.
1 in stock
Free Shipping on orders over $50.
*(Domestic only)
Need it fast? Next Day Air available at check out.
Same Day Handling on orders prior to 2pm Eastern Monday – Friday
1 in stock
NEO SKU: 15323-2 | Category: Hydraulic & Pneumatic Cylinders
Festo SLT-25-10-P-A Mini Slide 170574 Pistion Dia 10mm x 25mm Stroke - New
Product Details
Condition: New

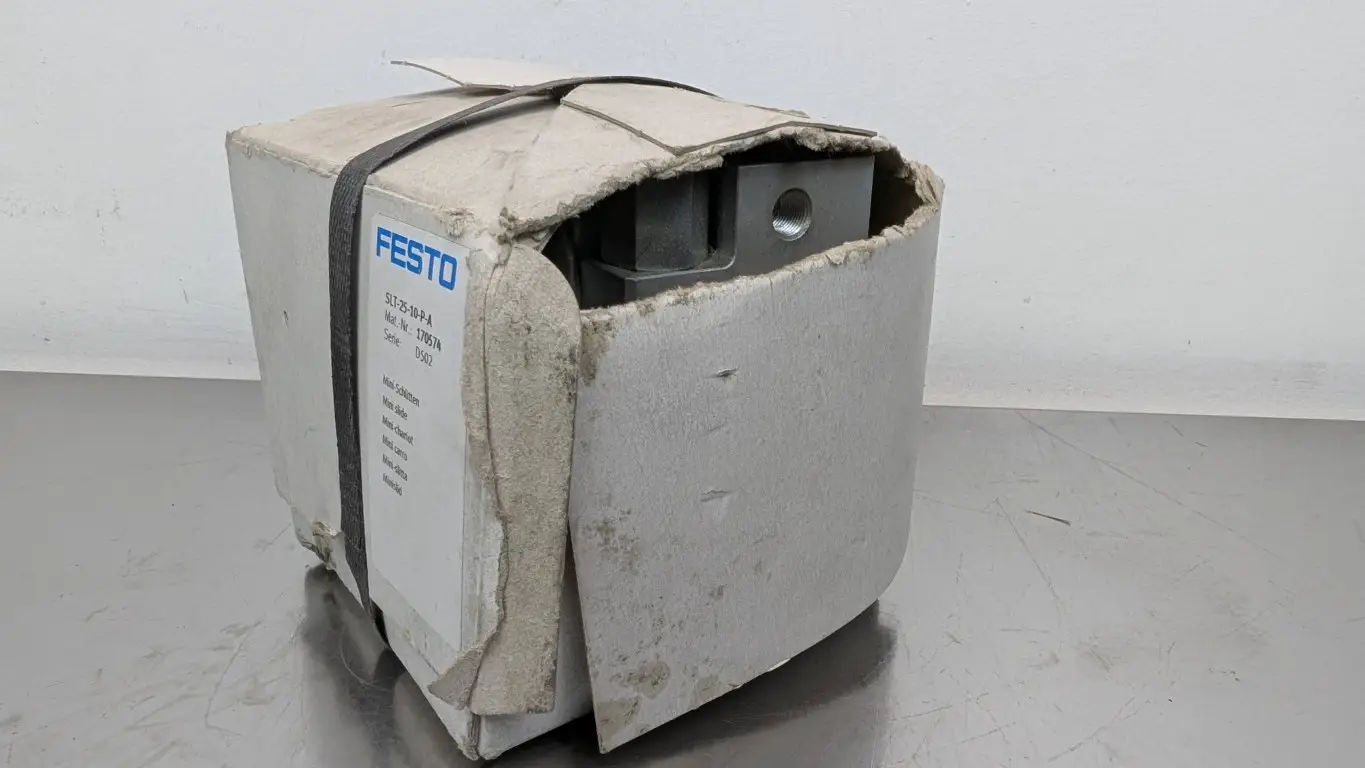

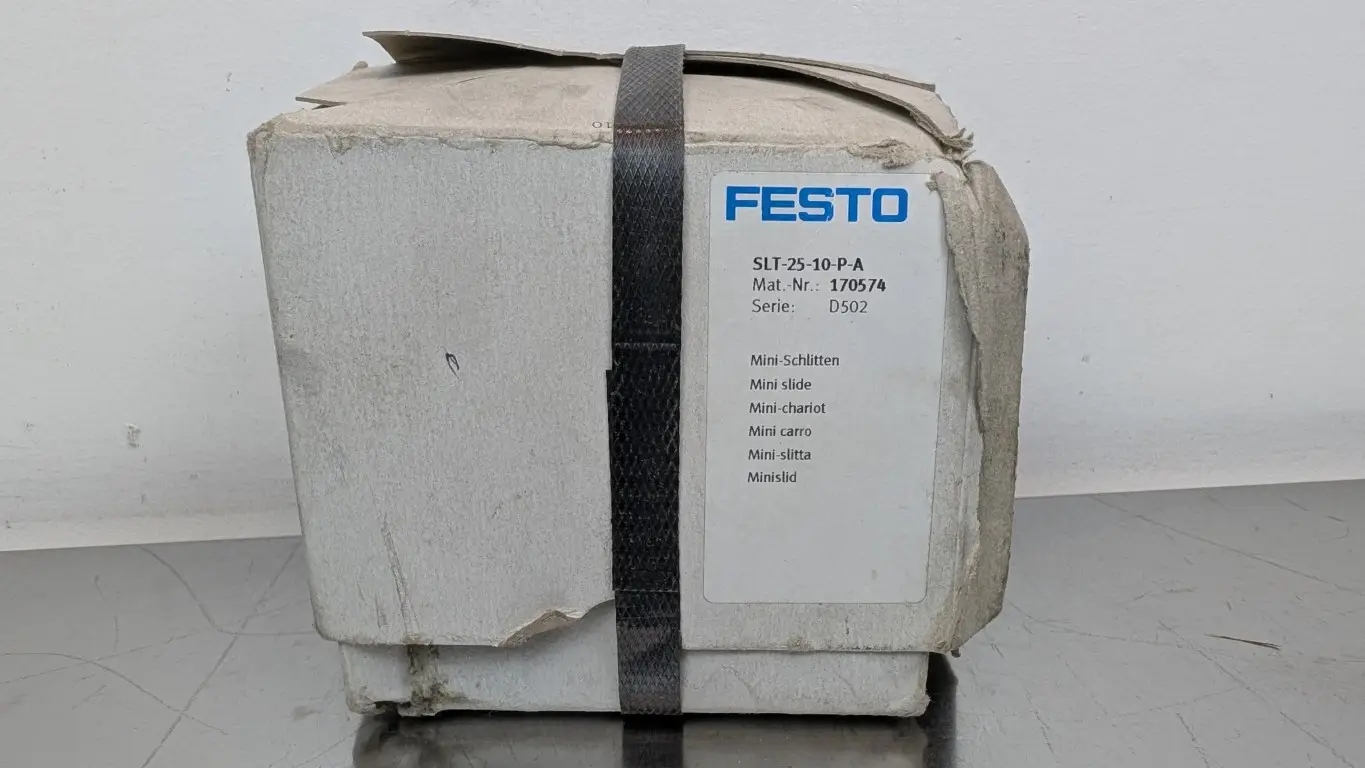

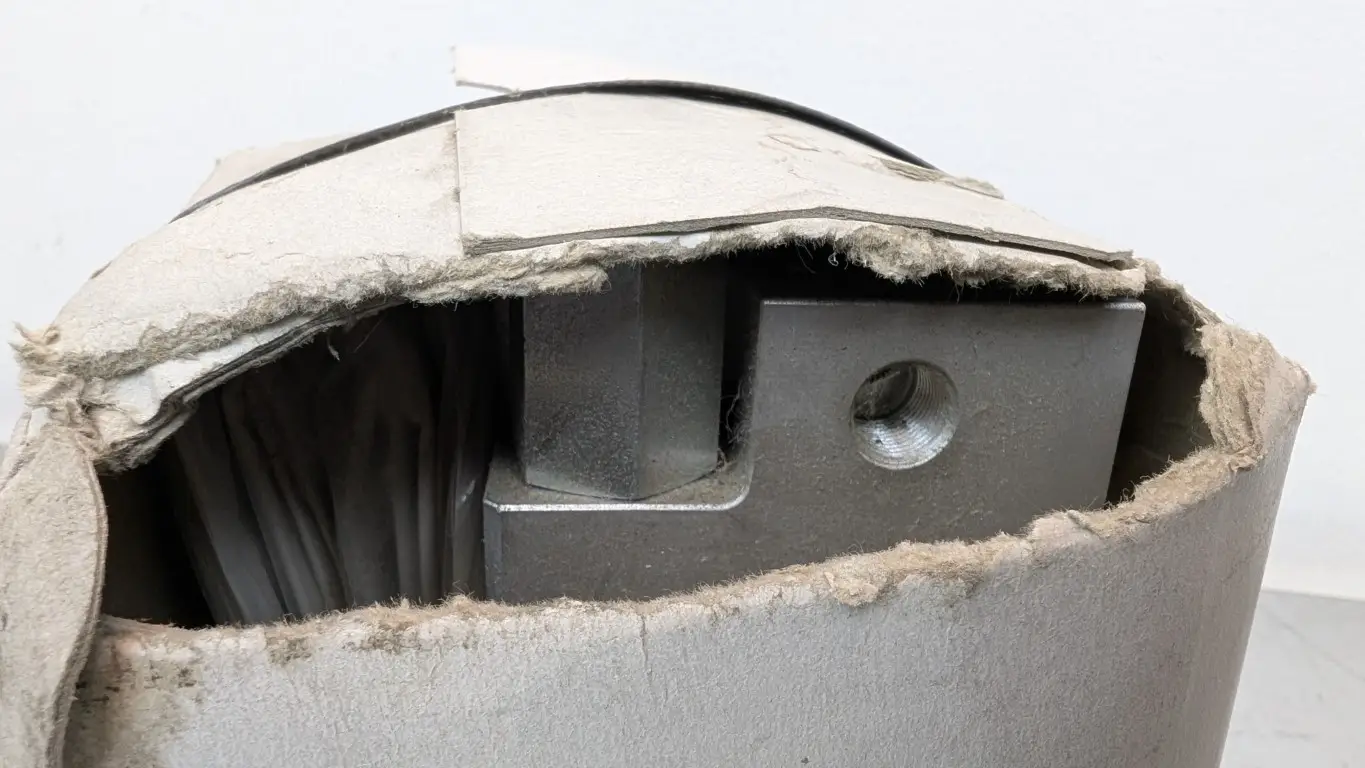

Condition Notes: Box sealed, but in poor shape, doesn’t impact the item.
Brand: Festo
Model: SLT-25-10-P-A
MPN: 170574
Capacity: Pistion Dia 10mm x 25mm Stroke
MFG Product Notes
Technical Data
Stroke
25 mm
Piston diameter
10 mm
Drive unit operating mode
Yoke
Cushioning
Elastic cushioning rings/pads at both ends
Mounting position
Any
Guide
Ball bearing cage guide
Structural design
Yoke
Piston
Piston rod
Ball roller guide
Slide
Position sensing
For proximity sensor
Symbol
00991737
Operating pressure
0.1 MPa … 1 MPa
Operating pressure
1 bar … 10 bar
Operating pressure
14.5 psi … 145 psi
Mode of operation
Double-acting
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
0 – No corrosion stress
LABS (PWIS) conformity
VDMA24364-B2-L
Ambient temperature
-20 °C … 60 °C
Impact energy in the end positions
0.05 J
Max. force Fy
140 N
Max. force Fz
140 N
Max. torque Mx
1.1 Nm
Max. torque My
1.1 Nm
Max. torque Mz
0.7 Nm
Theoretical force at 6 bar, retracting
39 N
Theoretical force at 6 bar, advancing
47 N
Moving mass
60 g
Product weight
182 g
Alternative connections
See product drawing
Type of mounting
With through-hole
Pneumatic connection
M5
Note on materials
RoHS-compliant
Cover material
Wrought aluminum alloy, anodized
Guide material
Steel
Housing material
High-alloy stainless steel
MFG Description
Festo is a leading provider of automation technology and industrial training, offering a wide range of products, including pneumatic and electric actuators, sensors, and control systems, known for their innovation and quality.
MFG URL
For more information about this product or Festo, check out their website: https://festo.com
Only logged in customers who have purchased this product may leave a review.
