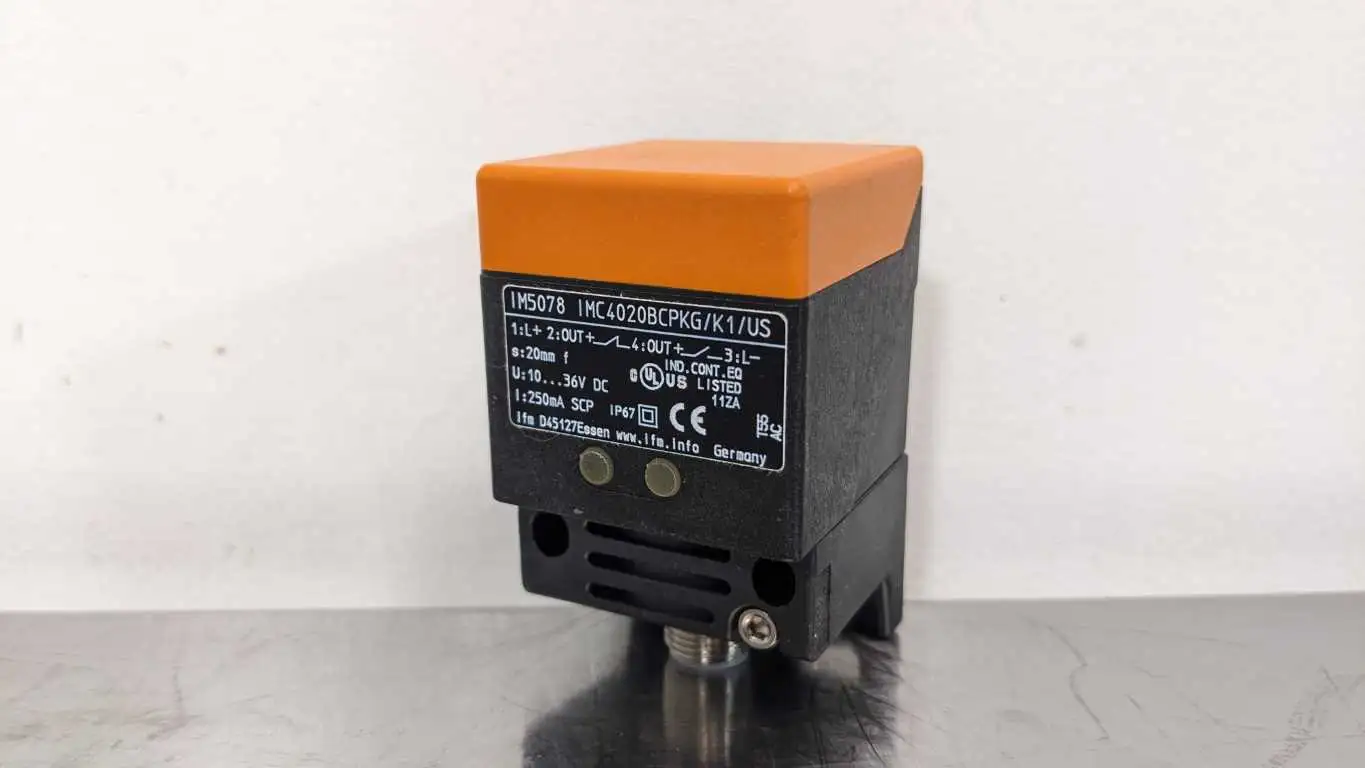

IFM Efector IM5078 Inductive Proximity Sensor 20mm IMC4020BCPKG/K1/US-100-DPA
Brand: IFM Efector | Model: IM5078 | Condition: New | NEO SKU: 12213-2
Out of stock
Request for Quote
NEO SKU: 12213-2 | Category: Proximity Sensors
Product Details for IFM Efector IM5078 Inductive Proximity Sensor 20mm IMC4020BCPKG/K1/US-100-DPA:
Condition: New
Brand: IFM Efector
Model: IM5078
Capacity: 20mm
Country of Origin: Germany
Electrical
Input
Volts: 10-36VDC
Amps: 250mA
MFG Product Notes
Inductive sensor
IM5078
IMC4020BCPKG/K1/US-100-DPA
Product characteristics
Electrical design: PNP
Output function: complementary
Sensing range [mm]: 20
Housing: rectangular
Dimensions [mm]: 40 x 40 x 66
Application
System: gold-plated contacts; correction factor = 1
Electrical data
Operating voltage [V]: 10…36 DC
Current consumption [mA]: 20; (24 V)
Protection class: II
Reverse polarity protection: yes
Outputs
Electrical design: PNP
Output function: complementary
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 250
Switching frequency DC [Hz]: 200
Short-circuit protection: yes
Type of short-circuit protection: yes (non-latching)
Overload protection: yes
Monitoring range
Sensing range [mm]: 20
Real sensing range Sr [mm]: 20 ± 10 %
Operating distance [mm]: 0…16.2
Accuracy / deviations
Correction factor: steel: 1 / stainless steel: 1.1 / brass: 1.1 / aluminum: 1.1 / copper: 1.1
Hysteresis [% of Sr]: 3…15
Switch-point drift [% of Sr]: -10…10
Correction factor = 1: yes
Operating conditions
Ambient temperature [°C]: -25…70
Protection: IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
Mechanical data
Housing: rectangular
Mounting: flush mountable
Dimensions [mm]: 40 x 40 x 66
Material: housing: PPE; sensing face: PPE; clamp: PPS
Displays / operating elements
Display:
Switching status: 1 x LED, yellow
Power: 1 x LED, green
Accessories
Items supplied: Mounting bracket: 1
Allen key: 1
Remarks
Pack quantity: 1 pcs.
Electrical connection – plug
Connection: Connector: 1 x M12; coding: A; Contacts: gold-plated
Suggested replacement: IM5132
See comparison: https://www.ifm.com/us/en/productComparison?p1=IM5078&p2=IM5132&
MFG Description
IFM Efector provides high-quality sensors and control products, including position sensors, flow sensors, and condition monitoring systems, offering reliable solutions for industrial automation.
MFG URL
For more information about this product or IFM Efector, check out their website: https://ifm.com
Only logged in customers who have purchased this product may leave a review.
Related Products
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 8 × 7 in |
| Brand | IFM Efector |
| Model | IM5078 |
| Input Volts | 10-36VDC |
| Input Amps | 250mA |
| Capacity | 20mm |
| Origin | Germany |
| Condition | New |
Product Details for IFM Efector IM5078 Inductive Proximity Sensor 20mm IMC4020BCPKG/K1/US-100-DPA
SKU: 12213-2

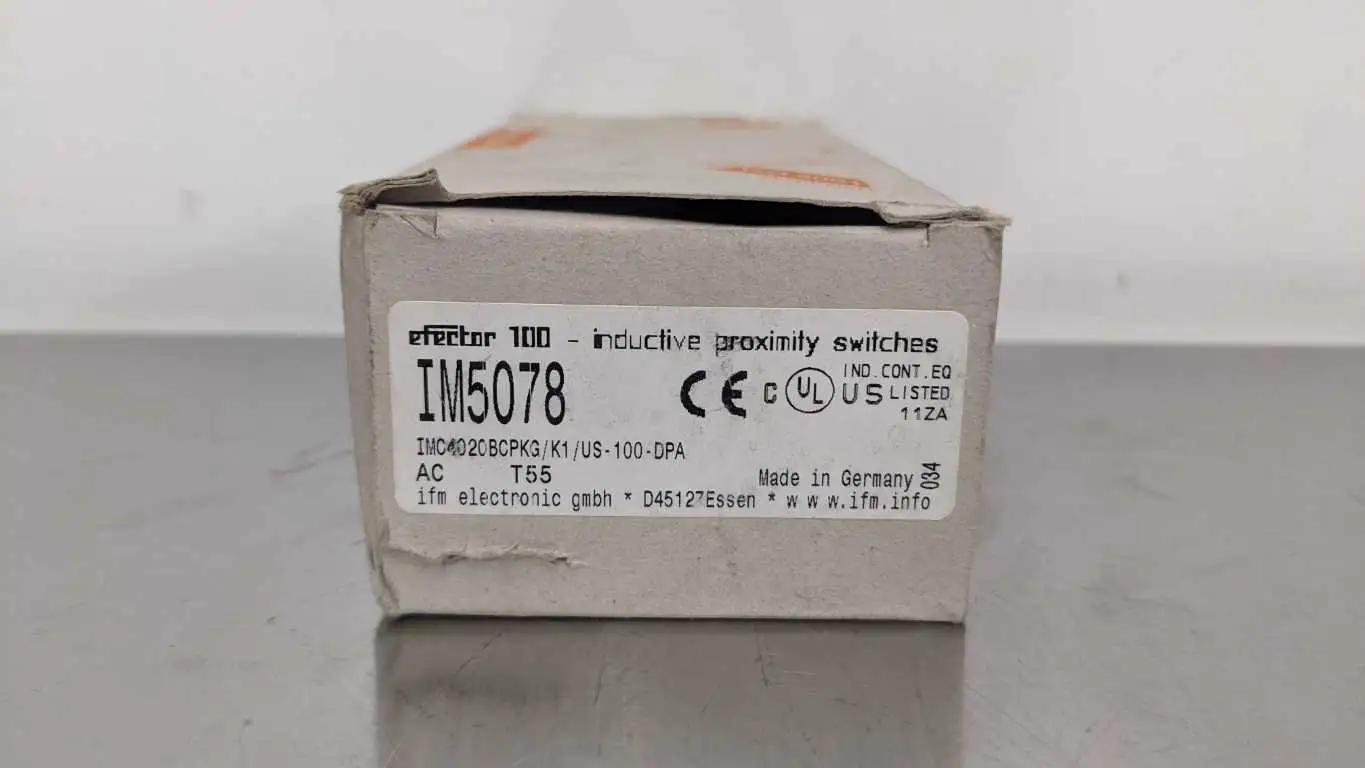

Condition: New Surplus Manufacturer Packaging
Brand: IFM Efector
Model: IM5078
Additional Description: 10-36VDC 250mA
Description: Inductive Proximity Sensor IMC4020BCPKG/K1/US-100-DPA
Electrical
Input Volts: 10-36VDC
Input Amps: 250mA
Capacity: 20mm
Origin: Germany
*Actual product may vary from images.*
Additional MFG Notes on IFM Efector IM5078 Inductive Proximity Sensor 20mm IMC4020BCPKG/K1/US-100-DPA:
Inductive sensor
IM5078
IMC4020BCPKG/K1/US-100-DPA
Product characteristics
Electrical design: PNP
Output function: complementary
Sensing range [mm]: 20
Housing: rectangular
Dimensions [mm]: 40 x 40 x 66
Application
System: gold-plated contacts; correction factor = 1
Electrical data
Operating voltage [V]: 10…36 DC
Current consumption [mA]: 20; (24 V)
Protection class: II
Reverse polarity protection: yes
Outputs
Electrical design: PNP
Output function: complementary
Max. voltage drop switching output DC [V]: 2.5
Permanent current rating of switching output DC [mA]: 250
Switching frequency DC [Hz]: 200
Short-circuit protection: yes
Type of short-circuit protection: yes (non-latching)
Overload protection: yes
Monitoring range
Sensing range [mm]: 20
Real sensing range Sr [mm]: 20 ± 10 %
Operating distance [mm]: 0…16.2
Accuracy / deviations
Correction factor: steel: 1 / stainless steel: 1.1 / brass: 1.1 / aluminum: 1.1 / copper: 1.1
Hysteresis [% of Sr]: 3…15
Switch-point drift [% of Sr]: -10…10
Correction factor = 1: yes
Operating conditions
Ambient temperature [°C]: -25…70
Protection: IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
Mechanical data
Housing: rectangular
Mounting: flush mountable
Dimensions [mm]: 40 x 40 x 66
Material: housing: PPE; sensing face: PPE; clamp: PPS
Displays / operating elements
Display:
Switching status: 1 x LED, yellow
Power: 1 x LED, green
Accessories
Items supplied: Mounting bracket: 1
Allen key: 1
Remarks
Pack quantity: 1 pcs.
Electrical connection – plug
Connection: Connector: 1 x M12; coding: A; Contacts: gold-plated
Suggested replacement: IM5132
See comparison: https://www.ifm.com/us/en/productComparison?p1=IM5078&p2=IM5132&
