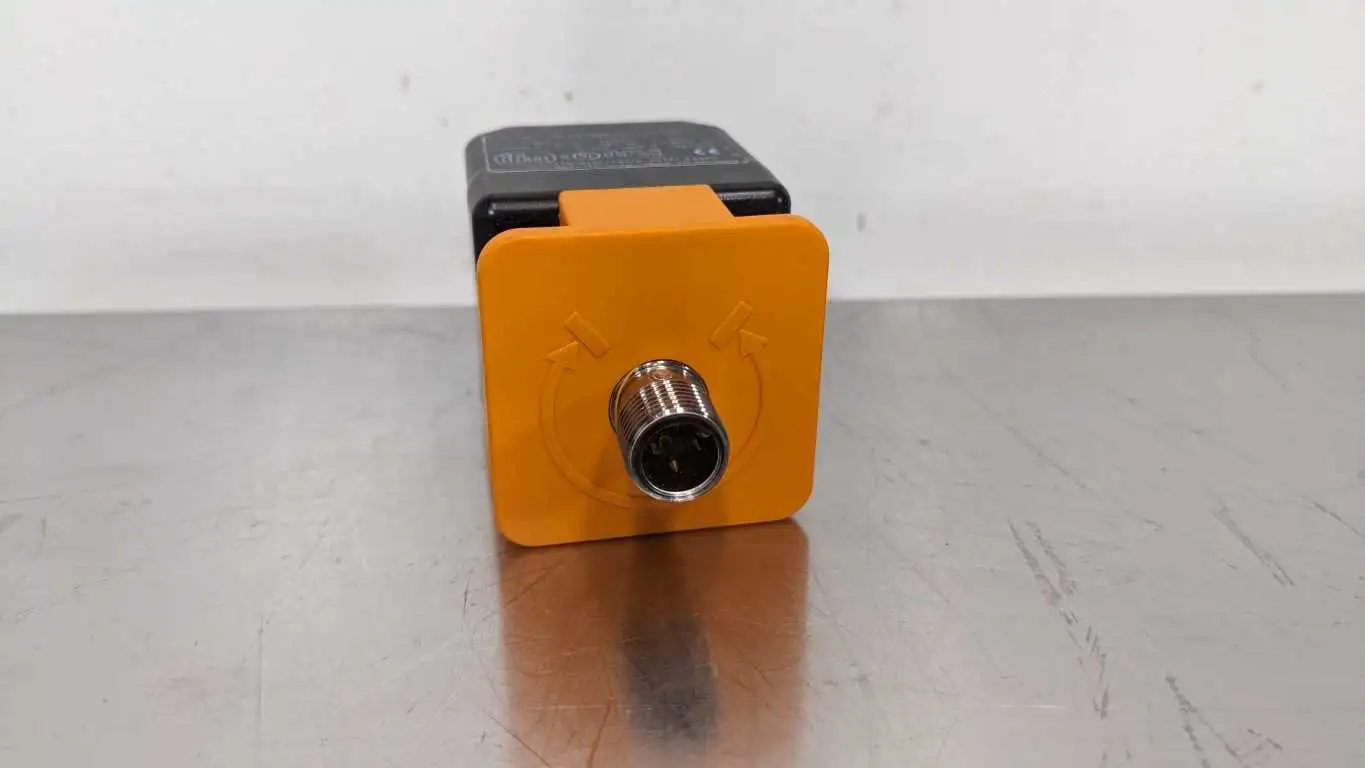

IFM Efector IM5132 Inductive Sensor 20mm IMC4020BCPKG/K1/US-100-DPA
Brand: IFM Efector | Model: IM5132 | Condition: New | NEO SKU: 12231-2
Out of stock
Request for Quote
NEO SKU: 12231-2 | Category: Proximity Sensors
Product Details for IFM Efector IM5132 Inductive Sensor 20mm IMC4020BCPKG/K1/US-100-DPA:
Condition: New
Brand: IFM Efector
Model: IM5132
Capacity: 20mm
Country of Origin: Germany
MFG Product Notes
Inductive sensor
IM5132
IMC4020BCPKG/K1/US-100-DPA
Correction factor K=1: Constant sensing range on all metals
Long sensing range for use in conveying
Complementary output function NO/NC
Five selectable positions of the sensing face
Corner LEDs clearly visible in any mounted position
List price:$114.00 (12/05/2023)
Product characteristics
Electrical design: PNP
Output function: complementary
Sensing range [mm]: 20
Housing: rectangular
Dimensions [mm]: 40 x 40 x 54
Application
System: correction factor = 1; Magnetic-field immune
Magnetic-field immune: yes
Max. electromagnetic field immunity [mT]: 300
Electrical data
Operating voltage [V]: 10…36 DC
Current consumption [mA]: < 20
Protection class: II
Reverse polarity protection: yes
Outputs
Electrical design: PNP
Output function: complementary
Max. voltage drop switching output DC [V]: 2.5
Max. leakage current [mA]: 0.1
Permanent current rating of switching output DC [mA]: 200
Switching frequency DC [Hz]: 200
Short-circuit protection: yes
Type of short-circuit protection: yes (non-latching)
Overload protection: yes
Monitoring range
Sensing range [mm]: 20
Real sensing range Sr [mm]: 20 ± 10 %
Operating distance [mm]: 0…16.2
Accuracy / deviations
Correction factor: steel: 1 / stainless steel: 1 / brass: 1 / aluminum: 1 / copper: 1
Hysteresis [% of Sr]: 1…20
Switch-point drift [% of Sr]: -10…10
Correction factor = 1: yes
Operating conditions
Ambient temperature [°C]: -25…70
Protection: IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD
8 kV CD / 6 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
MTTF [years]: 975
UL approval:
Ta
-25…70 °C
Enclosure type
Type 1
voltage supply
Class 2
File number UL
E174191
Mechanical data
Weight [g]: 141.5
Housing: rectangular
Sensing face: 5 positions selectable
Mounting: flush mountable
Dimensions [mm]: 40 x 40 x 54
Material: housing: PA; sensing face: PA black; end cap: PA; clamp: orange; screw: stainless steel (1.4567 / 304Cu)
Displays / operating elements
Display:
Switching status: 1 x LED, yellow
Power: 1 x LED, green
Remarks
Pack quantity: 1 pcs.
Electrical connection – plug
Connection: Connector: 1 x M12; coding: A; Locking: locking, rotatable, stainless steel (1.4404 / 316L)
MFG Description
IFM Efector provides high-quality sensors and control products, including position sensors, flow sensors, and condition monitoring systems, offering reliable solutions for industrial automation.
MFG URL
For more information about this product or IFM Efector, check out their website: https://ifm.com
Only logged in customers who have purchased this product may leave a review.
Related Products
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 8 × 7 in |
| Brand | IFM Efector |
| Model | IM5132 |
| Capacity | 20mm |
| Origin | Germany |
| Condition | New |
Product Details for IFM Efector IM5132 Inductive Sensor 20mm IMC4020BCPKG/K1/US-100-DPA
SKU: 12231-2
Condition: New Surplus Manufacturer Packaging
Brand: IFM Efector
Model: IM5132
Description: Inductive Sensor IMC4020BCPKG/K1/US-100-DPA
Capacity: 20mm
Origin: Germany
Additional MFG Notes on IFM Efector IM5132 Inductive Sensor 20mm IMC4020BCPKG/K1/US-100-DPA:
Inductive sensor
IM5132
IMC4020BCPKG/K1/US-100-DPA
Correction factor K=1: Constant sensing range on all metals
Long sensing range for use in conveying
Complementary output function NO/NC
Five selectable positions of the sensing face
Corner LEDs clearly visible in any mounted position
List price:$114.00 (12/05/2023)
Product characteristics
Electrical design: PNP
Output function: complementary
Sensing range [mm]: 20
Housing: rectangular
Dimensions [mm]: 40 x 40 x 54
Application
System: correction factor = 1; Magnetic-field immune
Magnetic-field immune: yes
Max. electromagnetic field immunity [mT]: 300
Electrical data
Operating voltage [V]: 10…36 DC
Current consumption [mA]: < 20
Protection class: II
Reverse polarity protection: yes
Outputs
Electrical design: PNP
Output function: complementary
Max. voltage drop switching output DC [V]: 2.5
Max. leakage current [mA]: 0.1
Permanent current rating of switching output DC [mA]: 200
Switching frequency DC [Hz]: 200
Short-circuit protection: yes
Type of short-circuit protection: yes (non-latching)
Overload protection: yes
Monitoring range
Sensing range [mm]: 20
Real sensing range Sr [mm]: 20 ± 10 %
Operating distance [mm]: 0...16.2
Accuracy / deviations
Correction factor: steel: 1 / stainless steel: 1 / brass: 1 / aluminum: 1 / copper: 1
Hysteresis [% of Sr]: 1...20
Switch-point drift [% of Sr]: -10...10
Correction factor = 1: yes
Operating conditions
Ambient temperature [°C]: -25...70
Protection: IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD
8 kV CD / 6 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-5 Surge
0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
MTTF [years]: 975
UL approval:
Ta
-25...70 °C
Enclosure type
Type 1
voltage supply
Class 2
File number UL
E174191
Mechanical data
Weight [g]: 141.5
Housing: rectangular
Sensing face: 5 positions selectable
Mounting: flush mountable
Dimensions [mm]: 40 x 40 x 54
Material: housing: PA; sensing face: PA black; end cap: PA; clamp: orange; screw: stainless steel (1.4567 / 304Cu)
Displays / operating elements
Display:
Switching status: 1 x LED, yellow
Power: 1 x LED, green
Remarks
Pack quantity: 1 pcs.
Electrical connection - plug
Connection: Connector: 1 x M12; coding: A; Locking: locking, rotatable, stainless steel (1.4404 / 316L)
NEO Surplus is not an authorized distributor, representative, reseller, or affiliated with IFM Efector or any manufacturer, brand, or product. Items being sold are not covered under any manufacturer warranty. All trademarks, brand names and brands appearing herein are the property of their respective owners.
We do our best to get all the information in this listing correct. If you see an error or have any questions, please contact us.
FAQ’s
Looking for a replacement IFM Efector IM5132 with fast shipping?
NEO Surplus will ship in stock items the same day if purchased by 2pm ET, Monday – Friday.
What is the HP rating for IFM Efector IM5132?
HP:
NEO Surplus is not an authorized distributor, representative, reseller, or affiliated with IFM Efector or any manufacturer, brand, or product. Items being sold are not covered under any manufacturer warranty. All trademarks, brand names and brands appearing herein are the property of their respective owners.
NEO Surplus buys surplus MRO items and then resells them on the secondary parts markets.
We do our best to get all the information in this listing correct. If you have any questions or see an error, please contact us.
