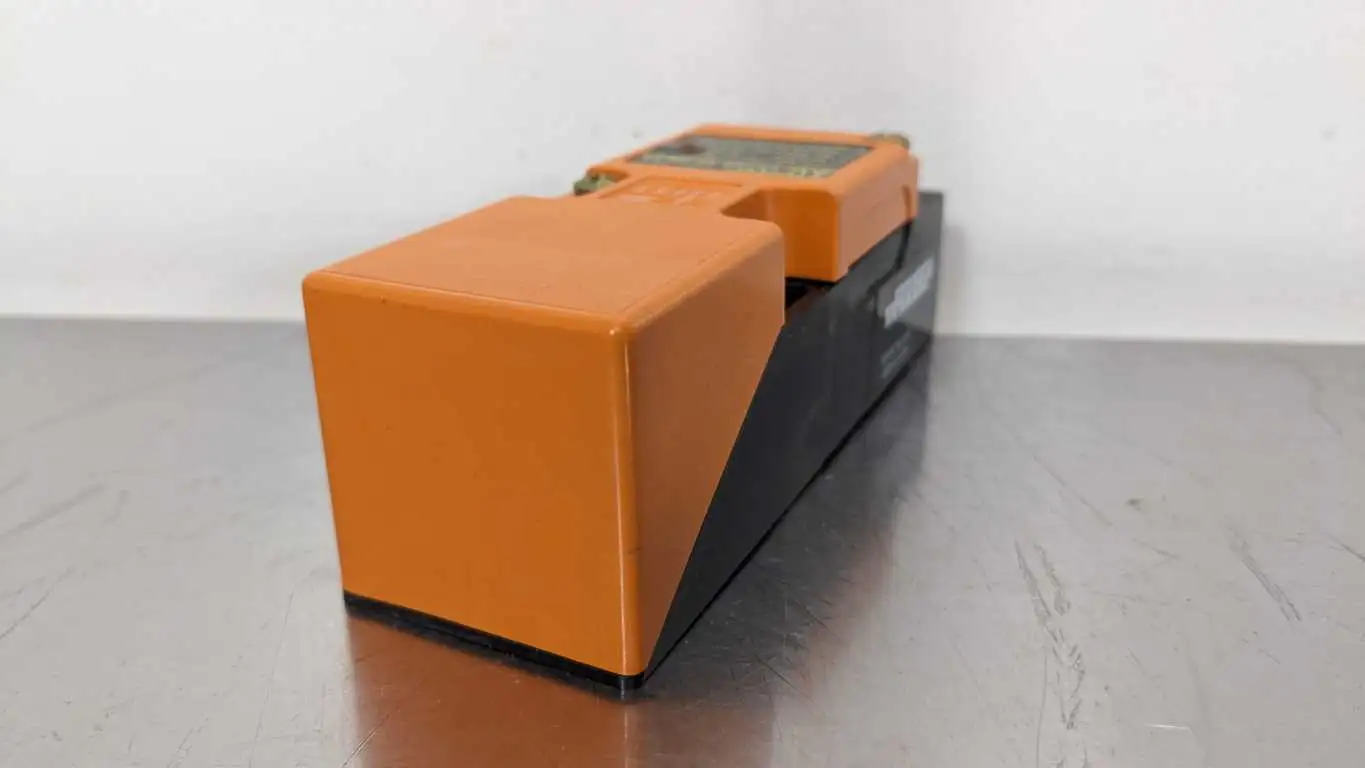

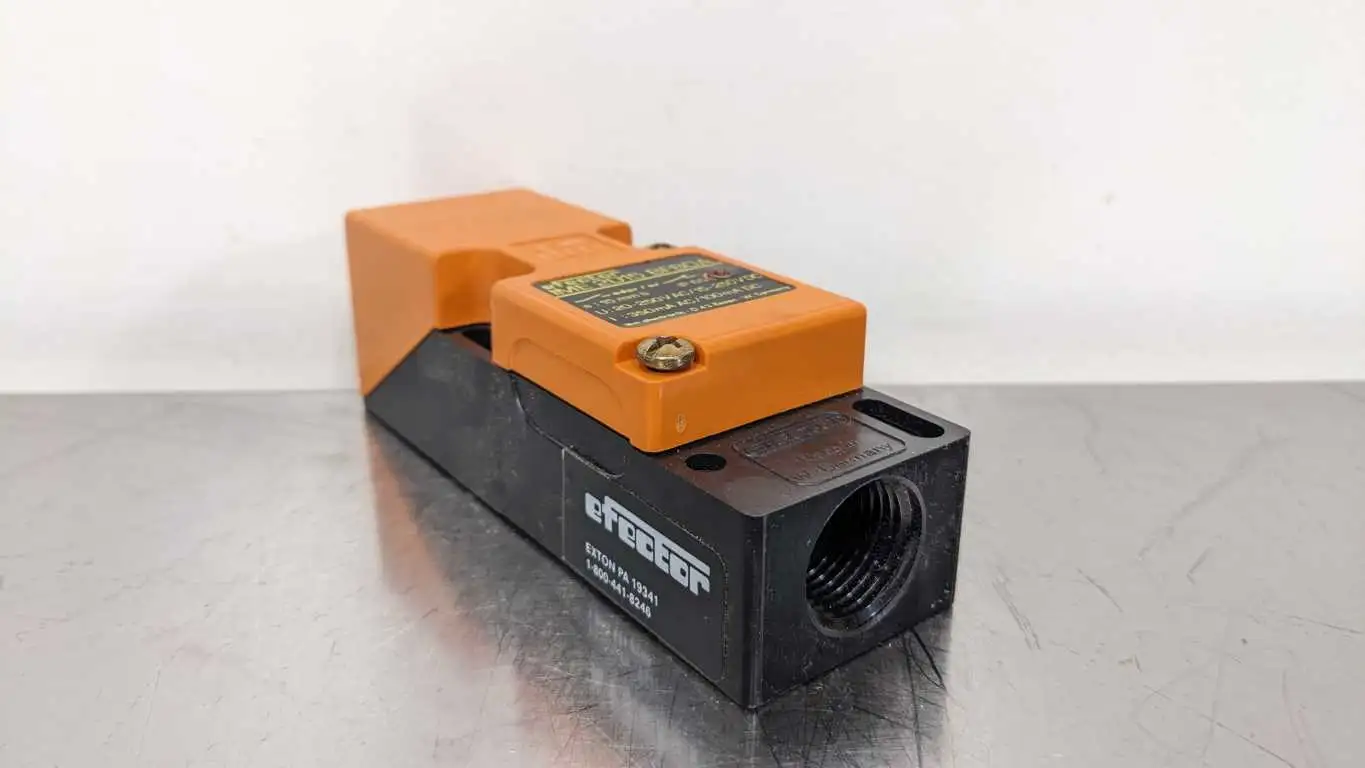

IFM Efector IME2015FBOA Inductive Sensor IM0011

Product Details for IFM Efector IME2015FBOA Inductive Sensor IM0011

SKU: 12010-2
Condition: New Surplus Manufacturer Packaging
Brand: IFM Efector
Model: IME2015FBOA

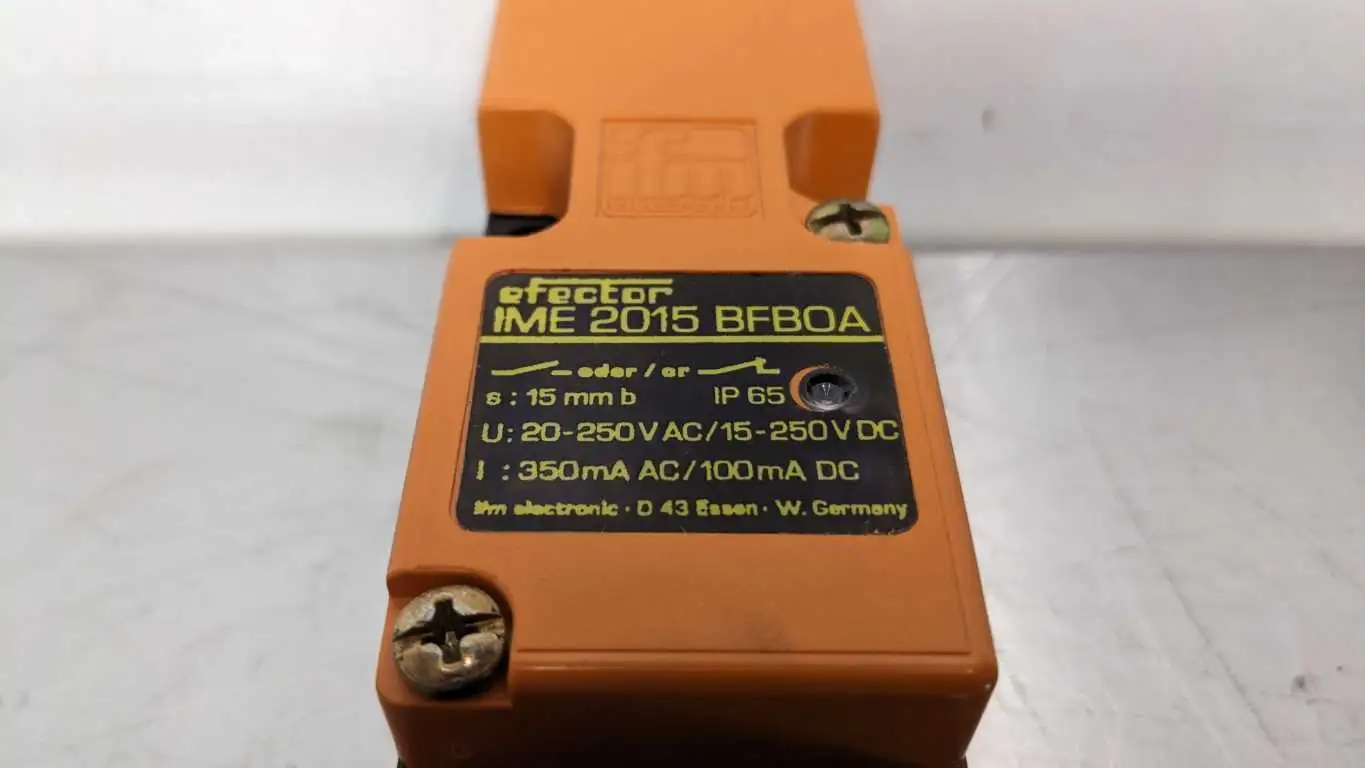

Additional Description: 20-250VAC/15-250VDC 350mA AC/100mA DC
Description: Inductive Sensor IM0011

Electrical
Input Volts: 20-250VAC/15-250VDC
Input Amps: 350mA AC/100mA DC

Origin: Germany

Notes: New Old Stock

Additional MFG Notes on IFM Efector IME2015FBOA Inductive Sensor IM0011:
Inductive sensor
IM0011
IME2015BFBOA
Long sensing range for use in conveying
With combined AC/DC output and two-wire technology
Output function normally open / normally closed programmable
Robust housing for use in harsh industrial environments
Large operating voltage range
List price:$165.00 (10/30/2023)

Product characteristics
Output function
normally open / closed; (selectable)
Sensing range [mm]
15
Housing
rectangular
Dimensions [mm]
40 x 40 x 120
Electrical data
Operating voltage [V]
20…250 AC/DC
Protection class
II
Reverse polarity protection
no
Outputs
Output function
normally open / closed; (selectable)
Max. voltage drop switching output DC [V]
6
Max. voltage drop switching output AC [V]
6.5
Minimum load current [mA]
5
Max. leakage current [mA]
2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output AC [mA]
250; (350 (…50 °C))
Permanent current rating of switching output DC [mA]
100
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Switching frequency AC [Hz]
20
Switching frequency DC [Hz]
55
Short-circuit proof
no
Overload protection
no
Monitoring range
Sensing range [mm]
15
Real sensing range Sr [mm]
15 ± 10 %
Operating distance [mm]
0…12.1
Accuracy / deviations
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2
Hysteresis [% of Sr]
1…15
Switch-point drift [% of Sr]
-10…10
Operating conditions
Ambient temperature [°C]
-25…80
Protection
IP 65
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
MTTF [years]
603
UL approval
Ta
0…40 °C
Enclosure type
Type 1
voltage supply
Hazardous voltage
File number UL
E174191
Mechanical data
Weight [g]
188.5
Housing
rectangular
Mounting
flush mountable
Dimensions [mm]
40 x 40 x 120
Material
PPE
Displays / operating elements
Display
Switching status
1 x LED, yellow
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Remarks
Remarks
Recommendation: check the unit for reliable function after a short circuit.
5 positions of the active zone possible
Pack quantity
1 pcs.
Electrical connection
Connection
terminals: …2.5 mm²; Cable sheath: Ø 7…13 mm; Cable gland: M20 X 1.5
