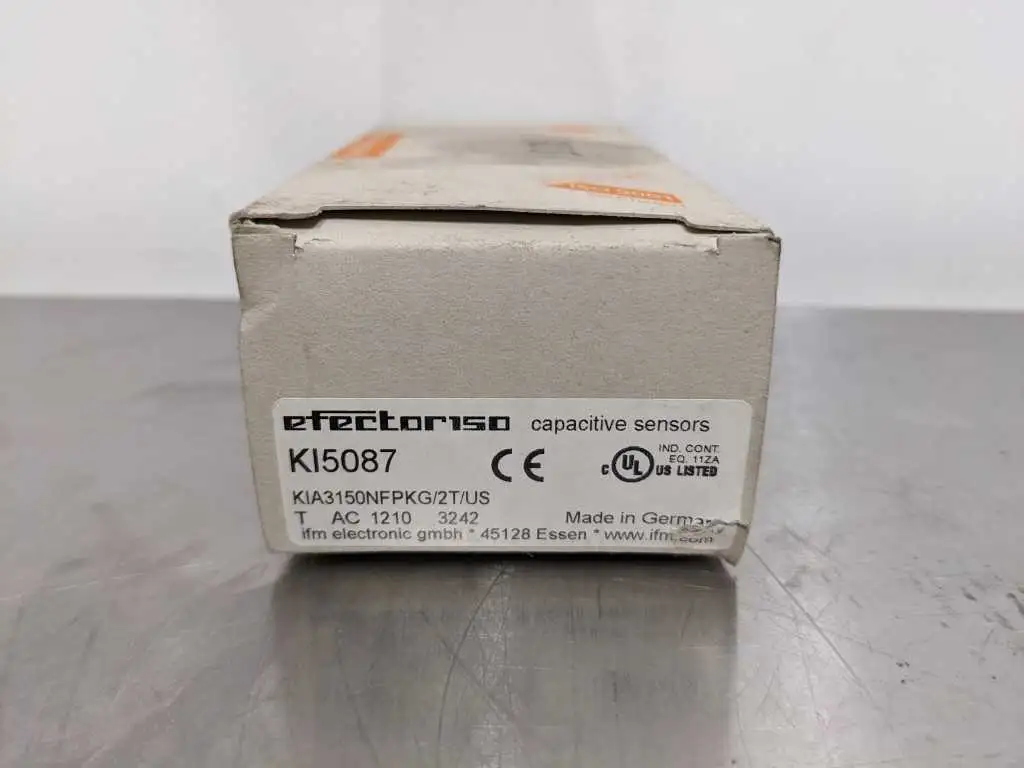

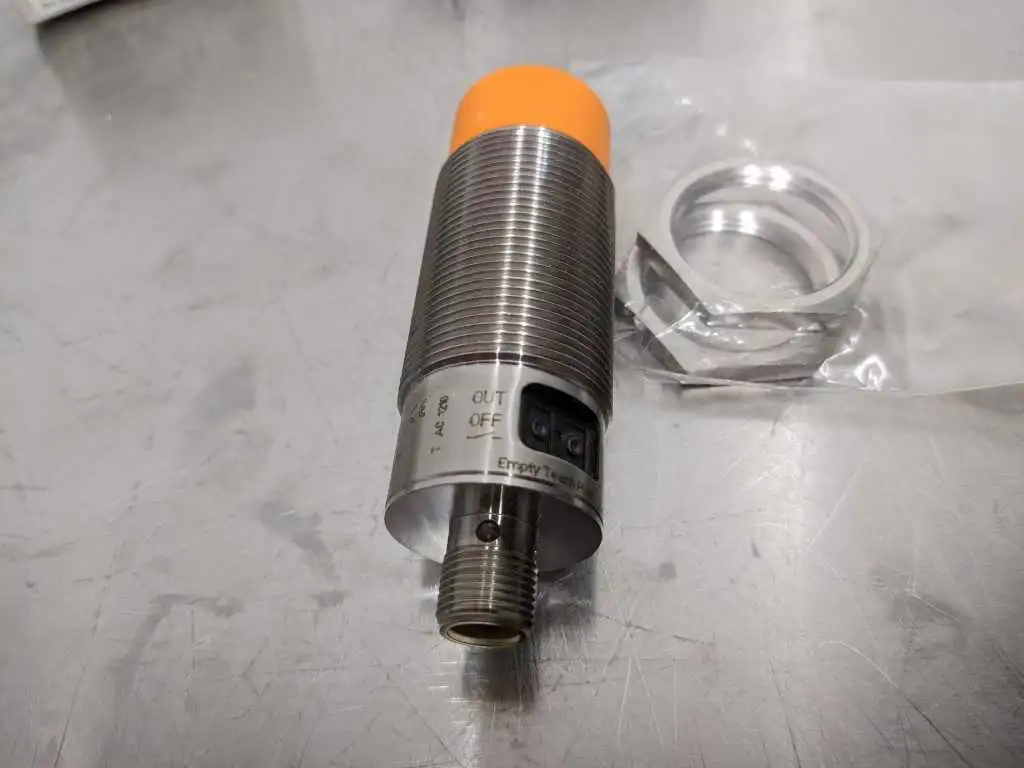

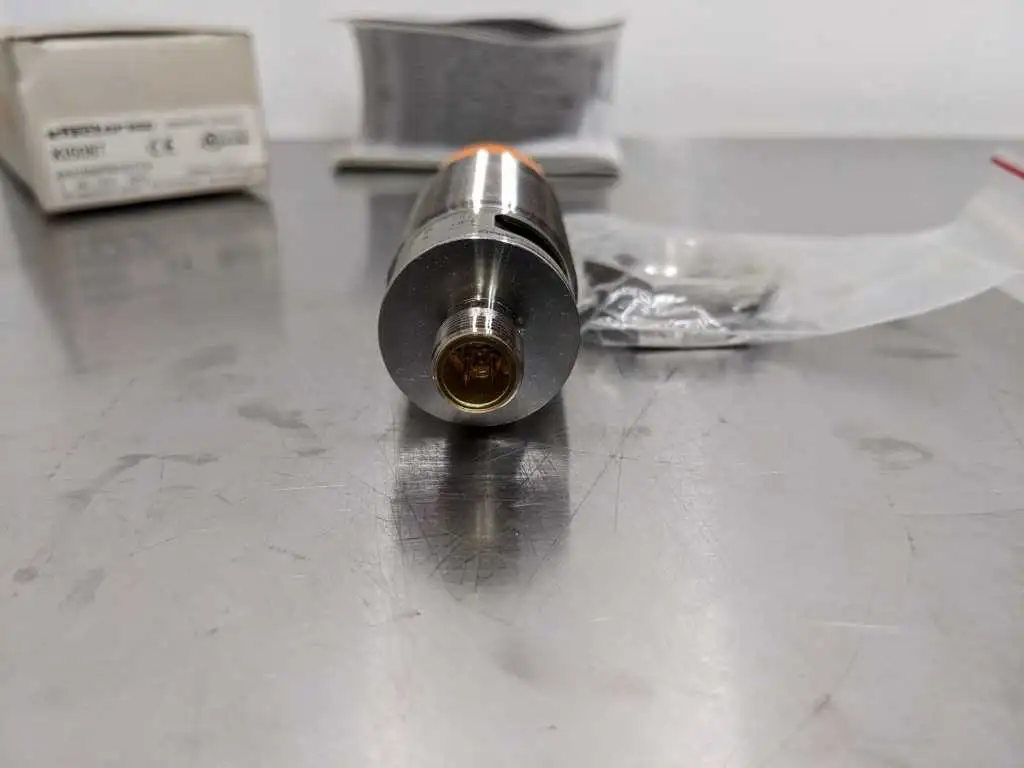

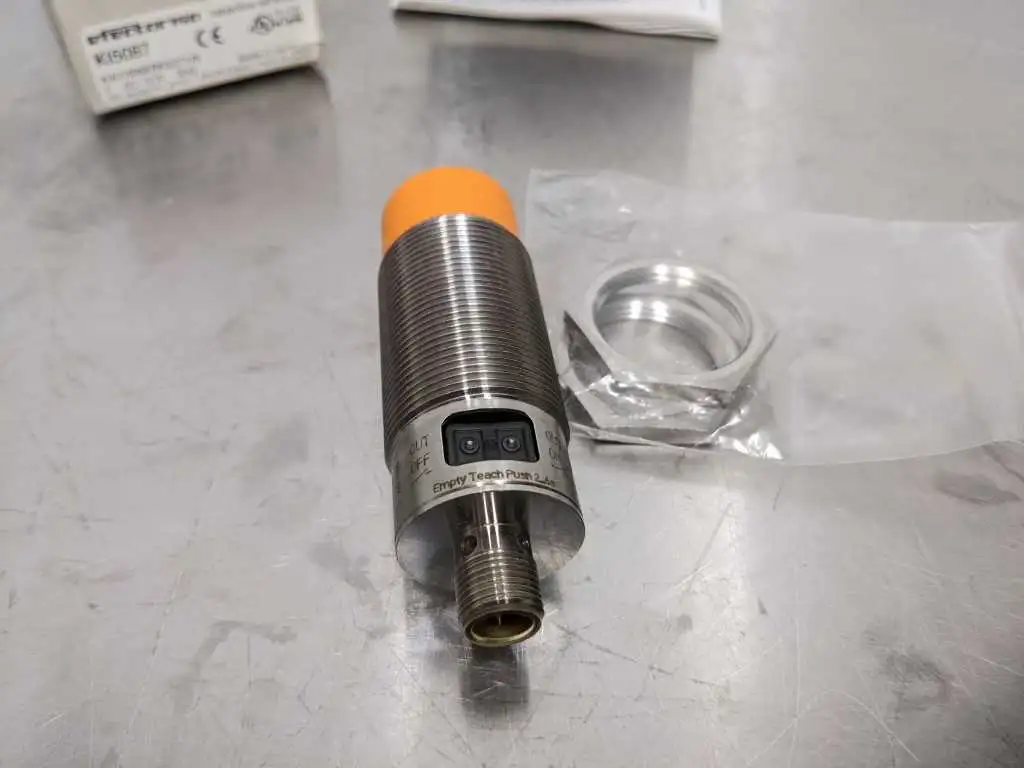

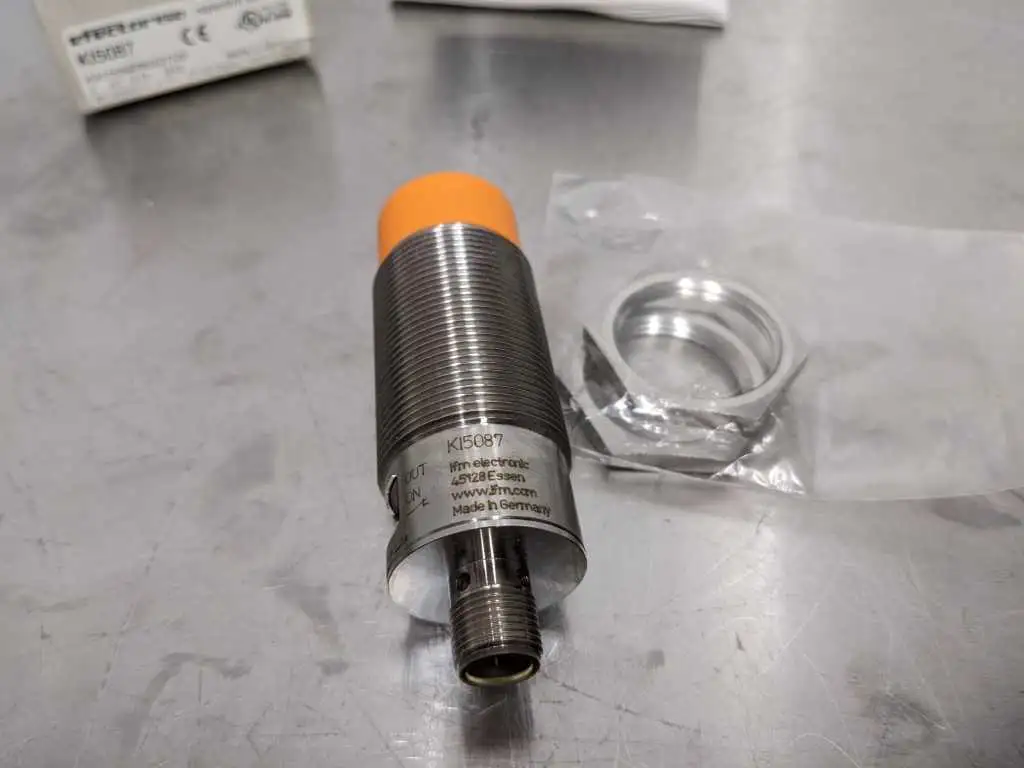

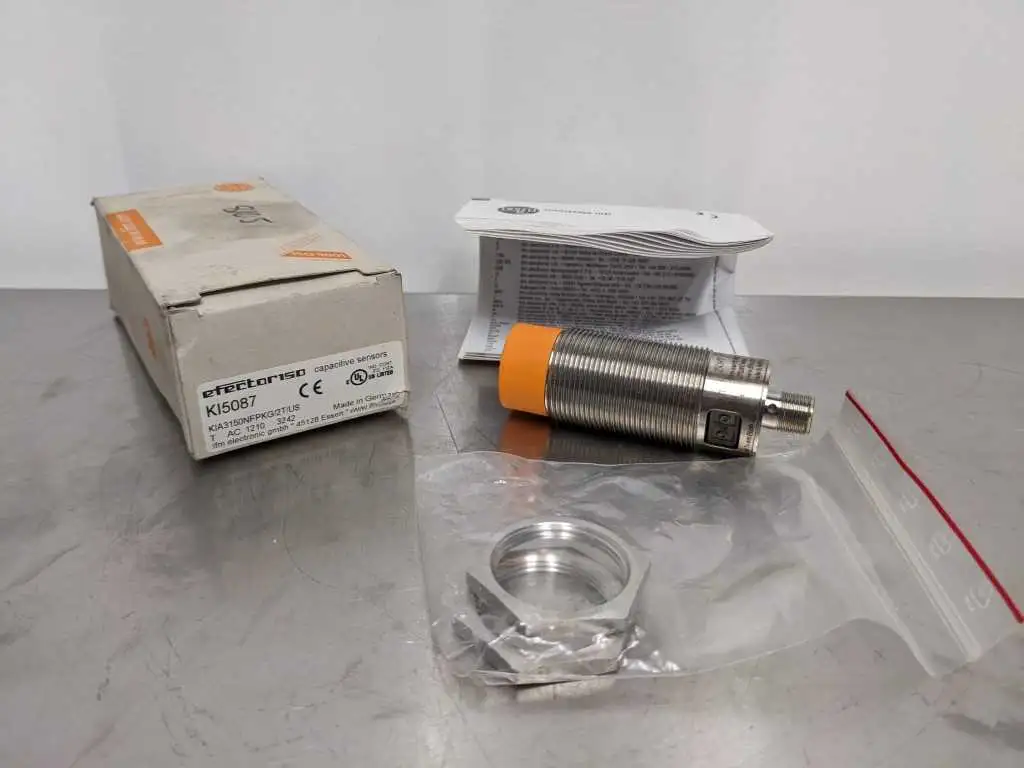

IFM Efector KI5087 Capacitive Sensor KIA3150NFPKG/2T/US efector150

Product Details for IFM Efector KI5087 Capacitive Sensor KIA3150NFPKG/2T/US efector150

SKU: 10934-2
Condition: New Surplus Manufacturer Packaging
Brand: IFM Efector
Model: KI5087
Description: Capacitive Sensor KIA3150NFPKG/2T/US efector150

Origin: Germany

Notes: Easy adjustment to the empty and full state via pushbutton or IO-Link
Output function normally open / normally closed programmable
Clearly visible indication of the switching status
Robust stainless steel housing for use in harsh industrial environments
Reliable level detection through non-metallic vessel walls

Product characteristics
Electrical design
PNP
Output function
normally open / closed; (selectable)
Sensing range [mm]
15
Communication interface
IO-Link
Housing
Threaded type
Dimensions [mm]
M30 x 1.5 / L = 90
Electrical data
Operating voltage [V]
10…30 DC; (10…36 DC (60 °C))
Current consumption [mA]
< 18 Protection class III Reverse polarity protection yes Measuring principle capacitive Outputs Electrical design PNP Output function normally open / closed; (selectable) Max. voltage drop switching output DC [V] 2.5 Permanent current rating of switching output DC [mA] 100 Switching frequency DC [Hz] 10 Short-circuit proof yes Overload protection yes Monitoring range Sensing range [mm] 15 Accuracy / deviations Hysteresis [% of Sr] 1...15 Switch-point drift [% of Sr] -20...20 Interfaces Communication interface IO-Link Transmission type COM1 (4,8 kBaud) IO-Link revision 1.1 SDCI standard IEC 61131-9 CDV Profiles Smart Sensor SIO mode yes Min. process cycle time [ms] 101 Supported DeviceIDs Type of operation DeviceID default 388 Operating conditions Ambient temperature [°C] -25...80 Protection IP 65; IP 67 Tests / approvals EMC EN 61000-4-2 ESD 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B Vibration resistance EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude, vibration duration 5 min., 30 min. per axis with resonance or 55 Hz Shock resistance EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z) MTTF [years] 719 Mechanical data Weight [g] 119.2 Housing Threaded type Mounting non-flush mountable Dimensions [mm] M30 x 1.5 / L = 90 Thread designation M30 x 1.5 Material housing: stainless steel (1.4404 / 316L); Pushbuttons: TPE-U; cover: PBT; LED window: PEI Displays / operating elements Display Switching status 1 x LED, yellow Teach function yes Electronic lock yes Accessories Items supplied lock nuts: 2 Remarks Pack quantity 1 pcs. Electrical connection - plug Connection Connector: 1 x M12; coding: A *Actual product may vary from images.* NEO Surplus is not an authorized distributor, representative, reseller, or affiliated with IFM Efector or any manufacturer, brand, or product. Items being sold are not covered under any manufacturer warranty. All trademarks, brand names and brands appearing herein are the property of their respective owners. We do our best to get all the information in this listing correct. If you see an error or have any questions, please contact us.
