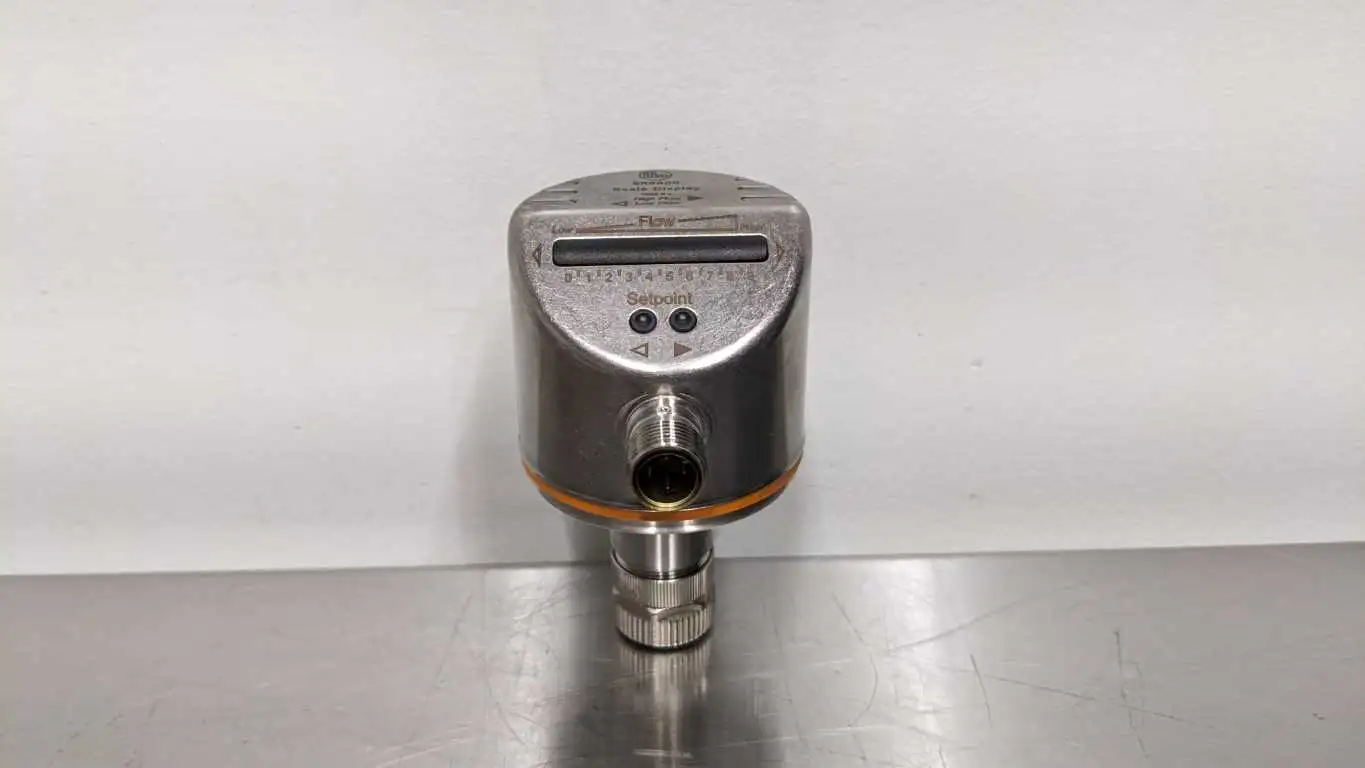

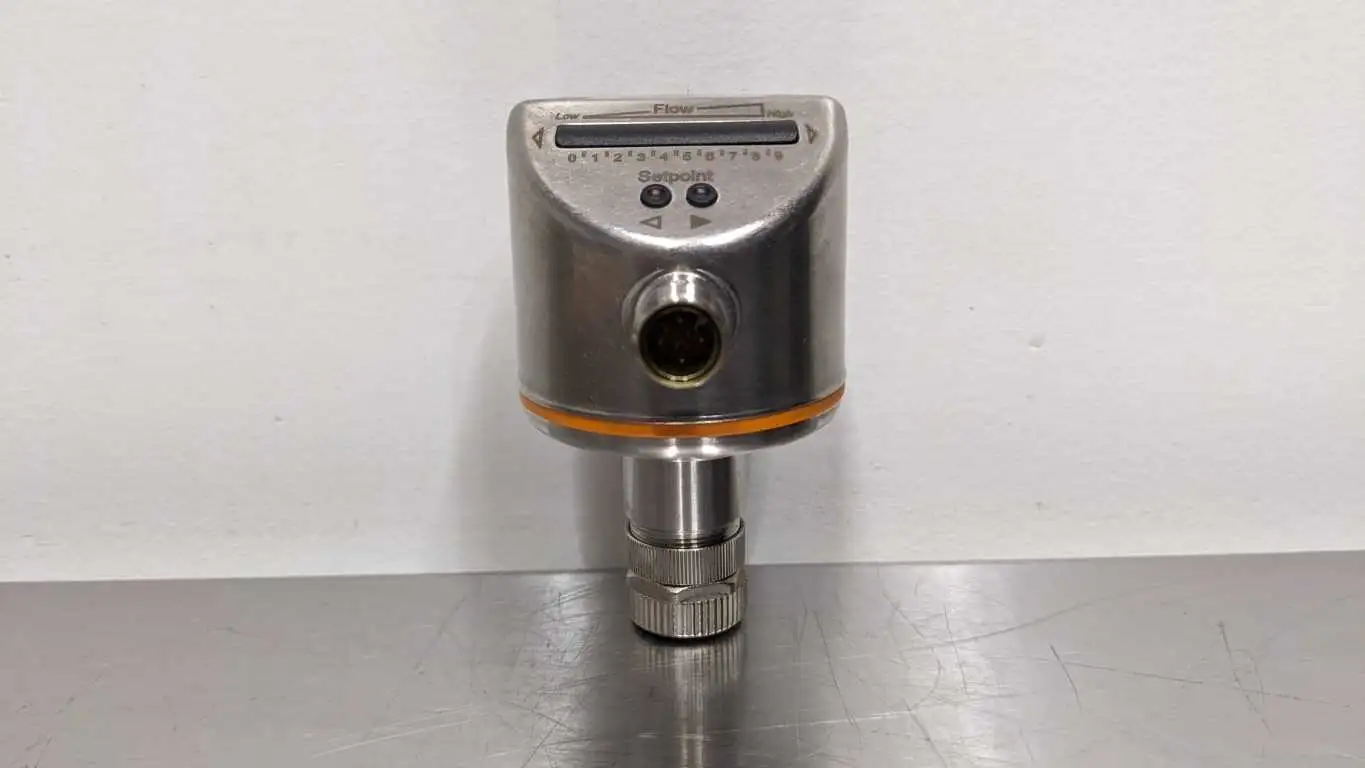

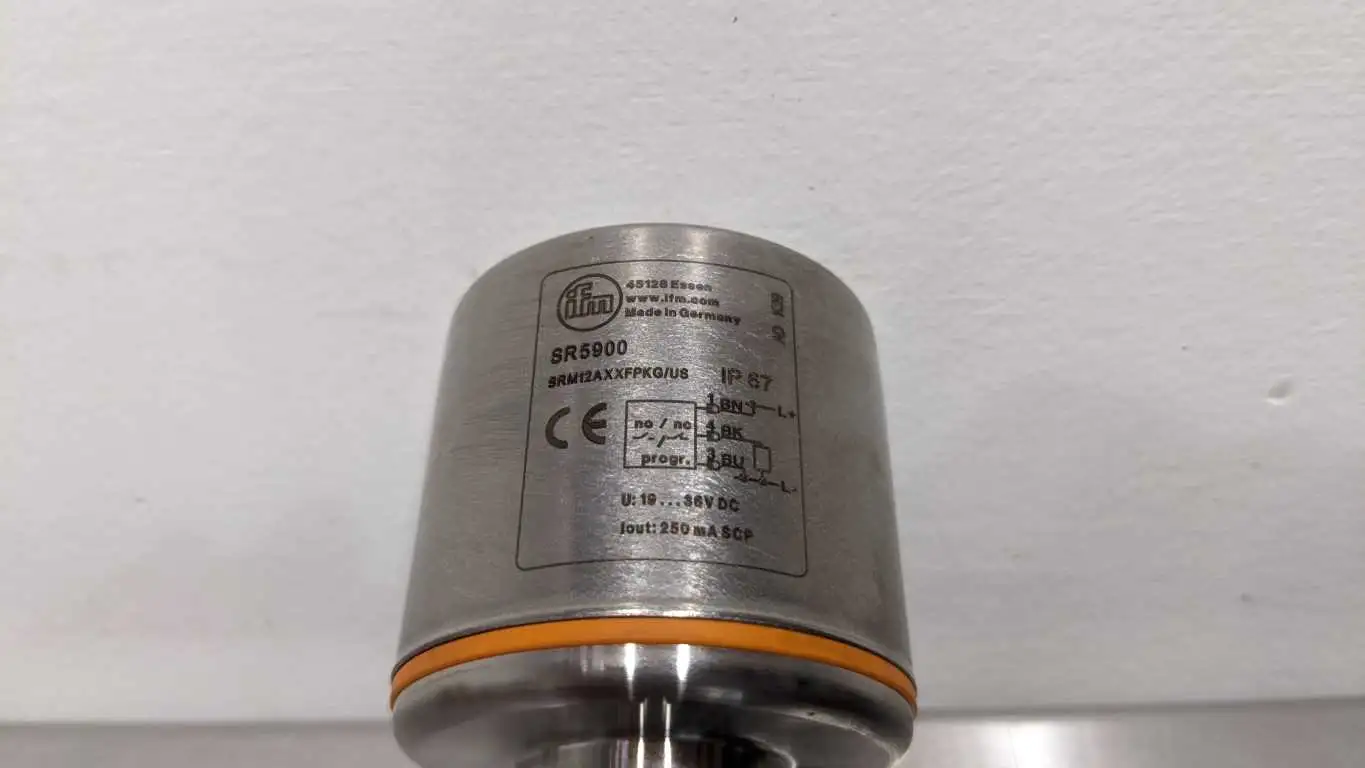

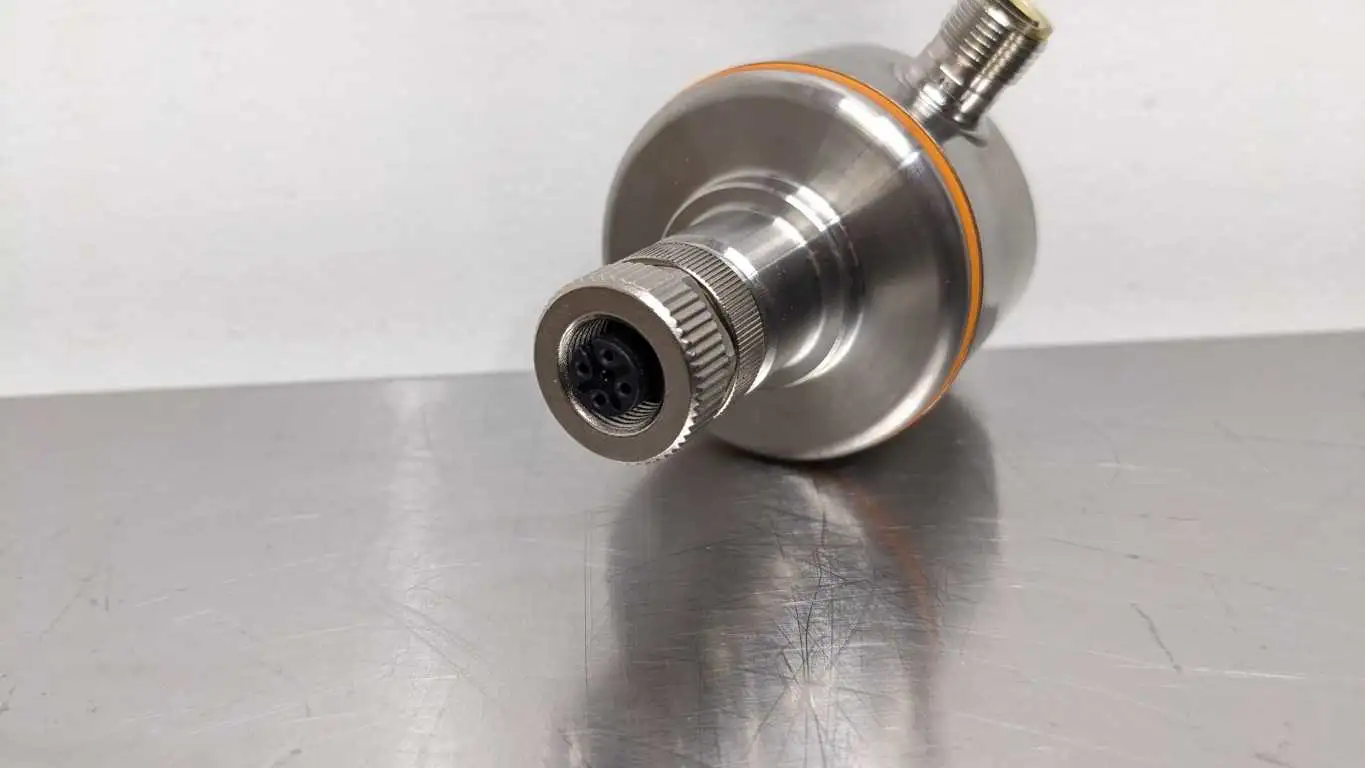

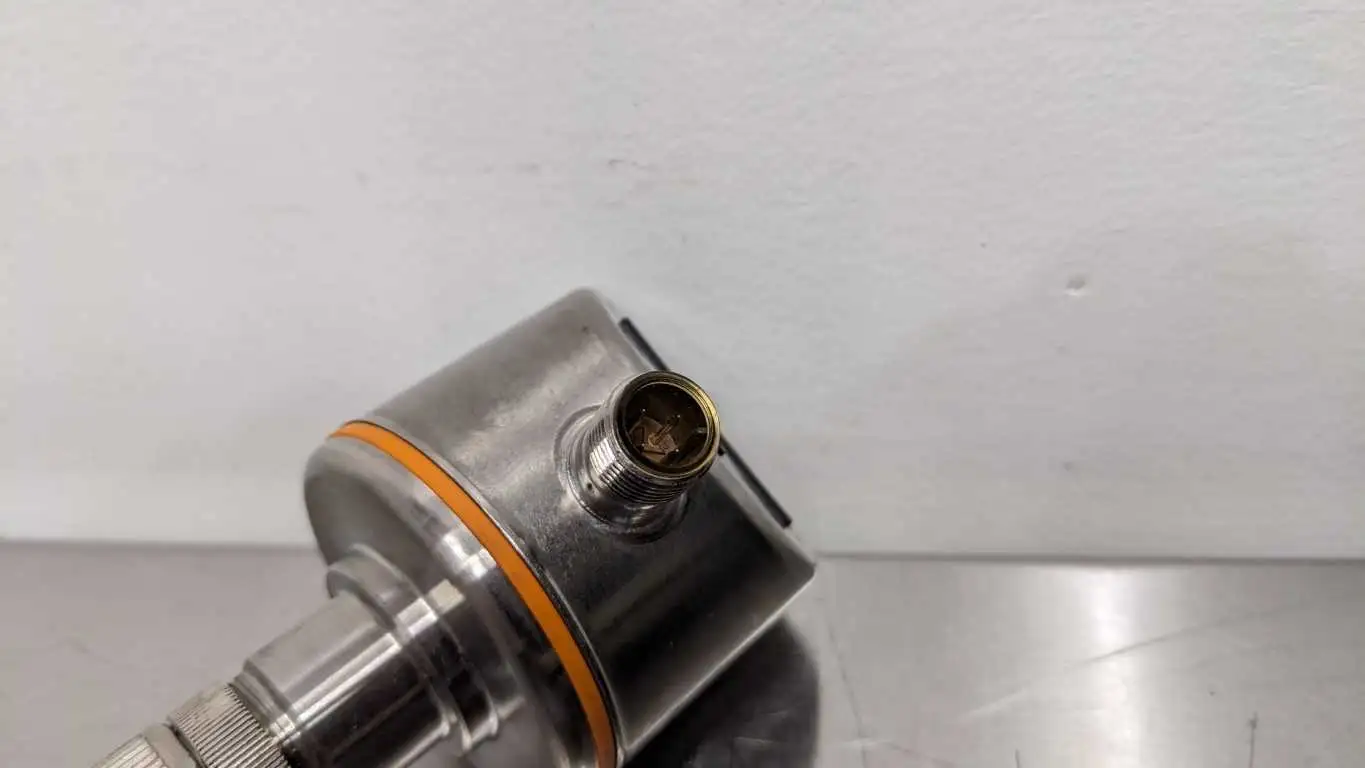

IFM Efector SR5900 Control Monitor for Flow Sensors SRM12XXBFPKG

Product Details for IFM Efector SR5900 Control Monitor for Flow Sensors SRM12XXBFPKG

SKU: 11484-2

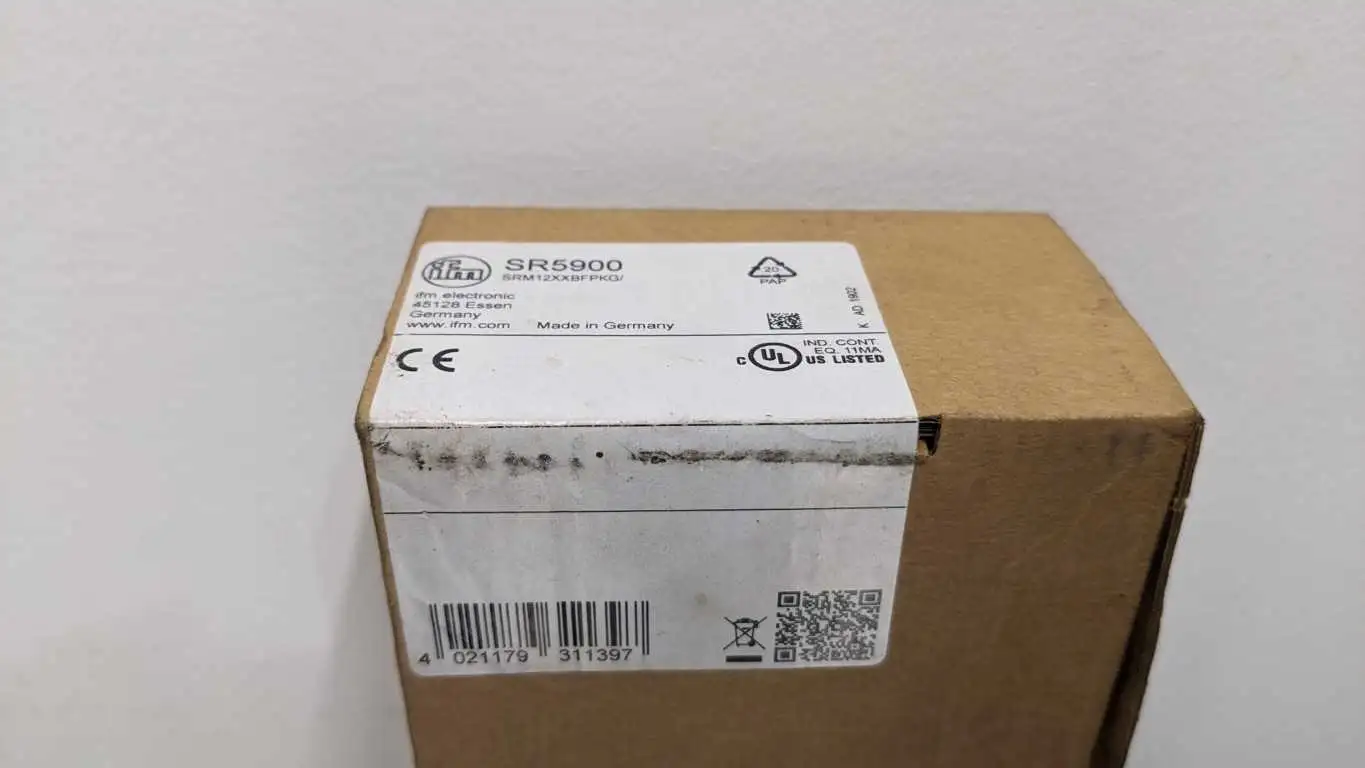

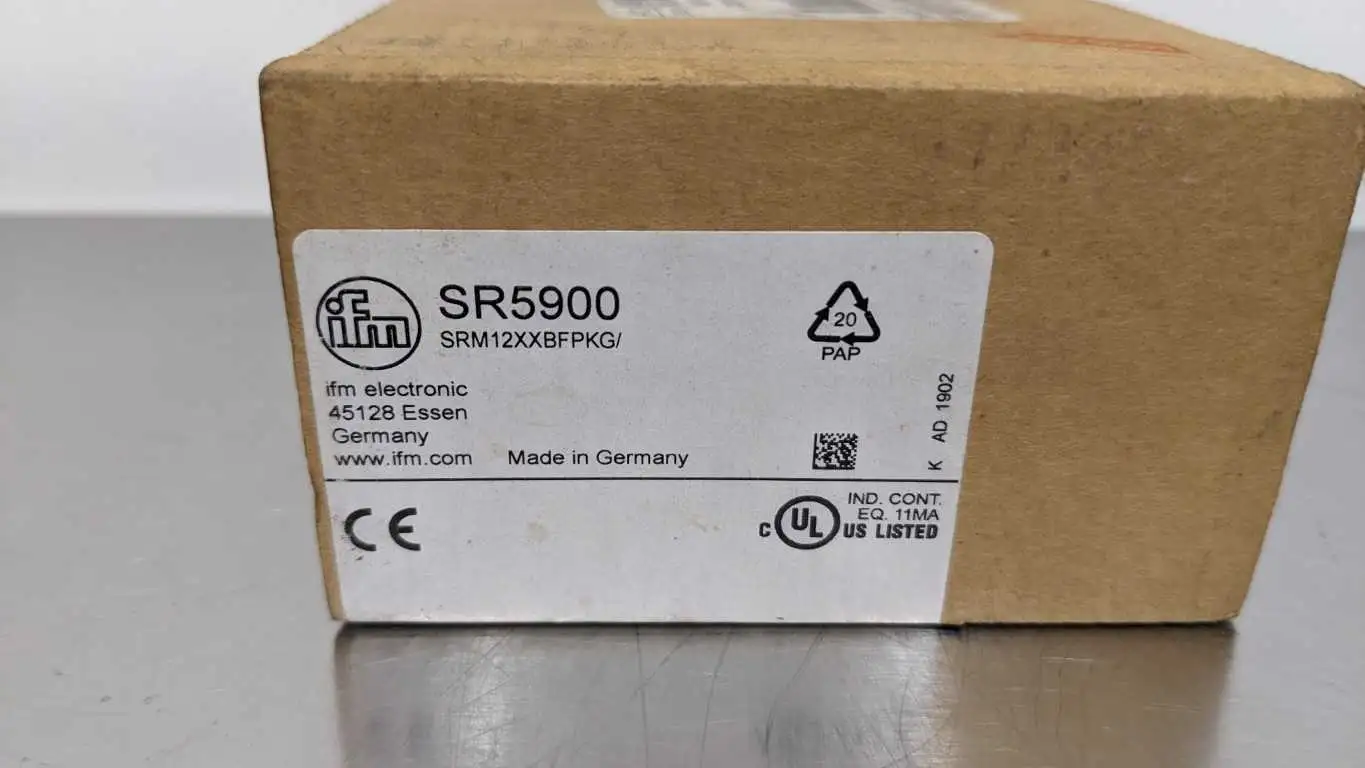

Condition: New Surplus Manufacturer Packaging
Brand: IFM Efector
Model: SR5900
Description: Control Monitor for Flow Sensors SRM12XXBFPKG

Origin: Germany
EAN: 4021179311397

Notes: From MFG:

Reliable monitoring of liquids and gases in pipes
For the connection of flow sensors with large immersion depths
For sensors made of ceramics, high-grade stainless steel and titanium
Easy setting of the switch points for quick set-up

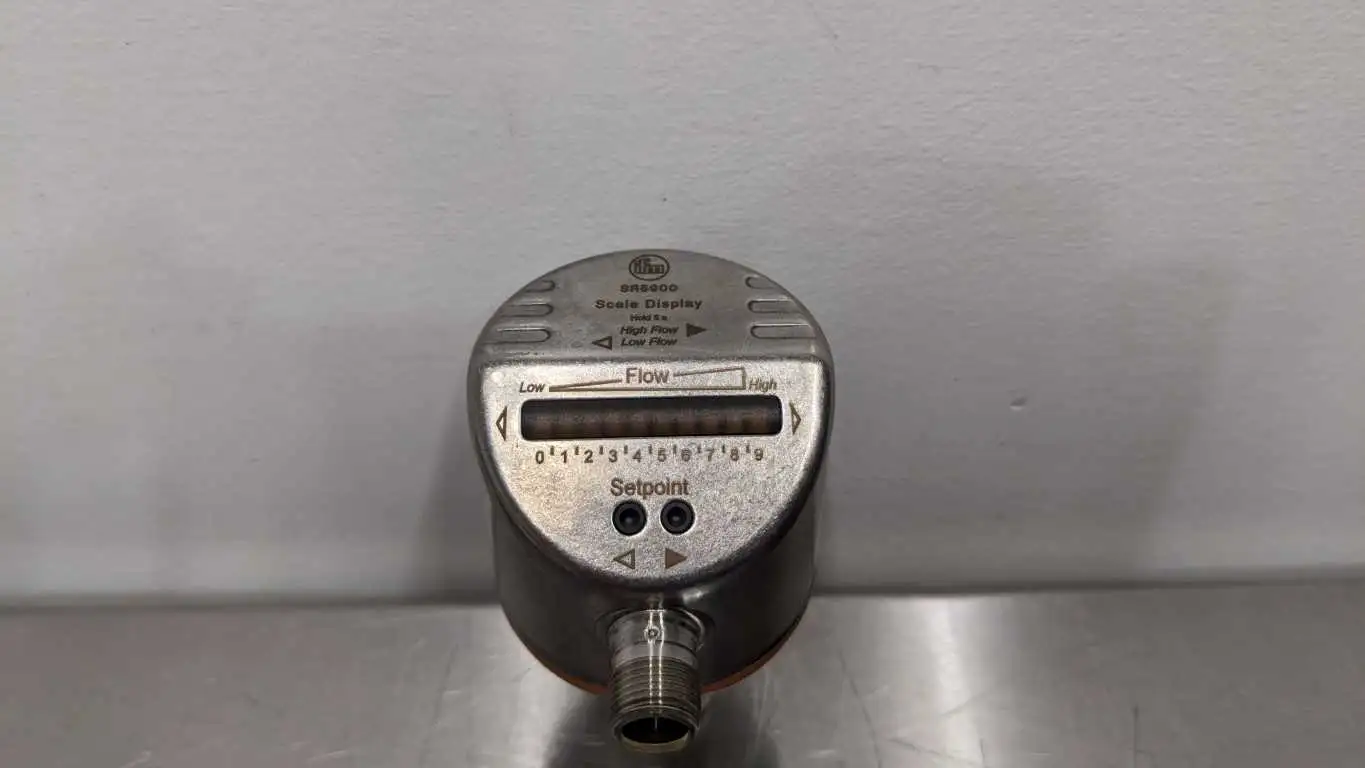

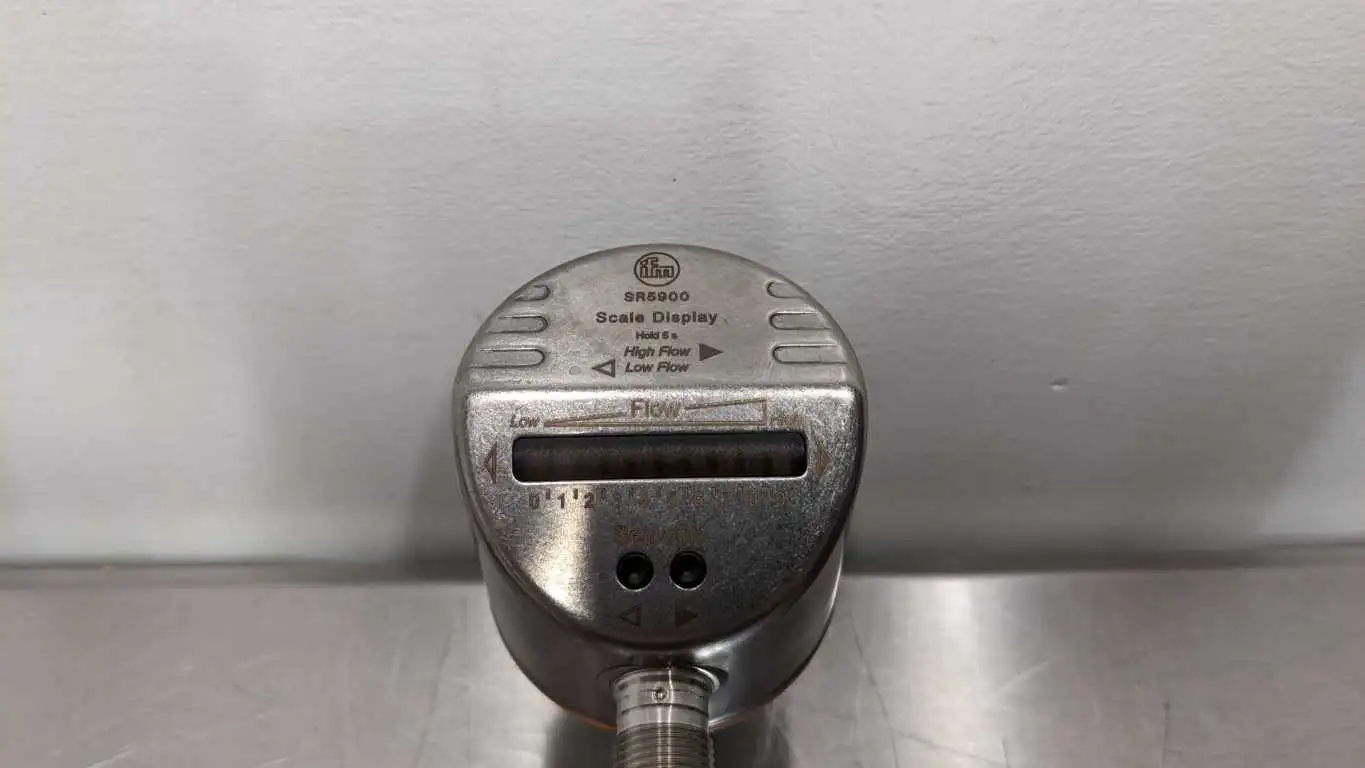

LED bar graph for indication of switch point and flow

Application
Flow monitoring; Wire break monitoring
Electrical data
Operating voltage [V]
19…36 DC
Current consumption [mA]
< 70 Protection class III Reverse polarity protection yes Power-on delay time [s] 10 Number of channels 1 Outputs Electrical design PNP Max. voltage drop switching output DC [V] 2.5 Permanent current rating of switching output DC [mA] 250 Switching function flow monitoring output switches when flow is present: ON for output function = normally open / OFF for output function = normally closed Short-circuit protection yes Overload protection yes Software / programming Adjustment of the switch point pushbuttons Operating conditions Ambient temperature [°C] -20...60 Protection IP 67; (with sensor attached) Tests / approvals EMC EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V Shock resistance DIN IEC 68-2-27 30 g (6 ms) Vibration resistance DIN IEC 68-2-6 5 g (55...2000 Hz) MTTF [years] 342 Mechanical data Weight [g] 225.5 Material stainless steel (1.4404 / 316L); stainless steel (1.4301 / 304); PC; PBT-GF20; EPDM/X; brass Displays / operating elements Display Function LED, bar graph Switching status LED, orange flash in case of wire break Remarks Remarks connection for flow sensor without short-circuit protection / reverse polarity protection The flow sensor must be directly connected to the control monitor. A connection by means of extension cables is not allowed. Pack quantity 1 pcs. Electrical connection Connection Connector: 1 x M12; coding: A NEO Surplus is not an authorized distributor, representative, reseller, or affiliated with IFM Efector or any manufacturer, brand, or product. Items being sold are not covered under any manufacturer warranty. All trademarks, brand names and brands appearing herein are the property of their respective owners. We do our best to get all the information in this listing correct. If you see an error or have any questions, please contact us.
