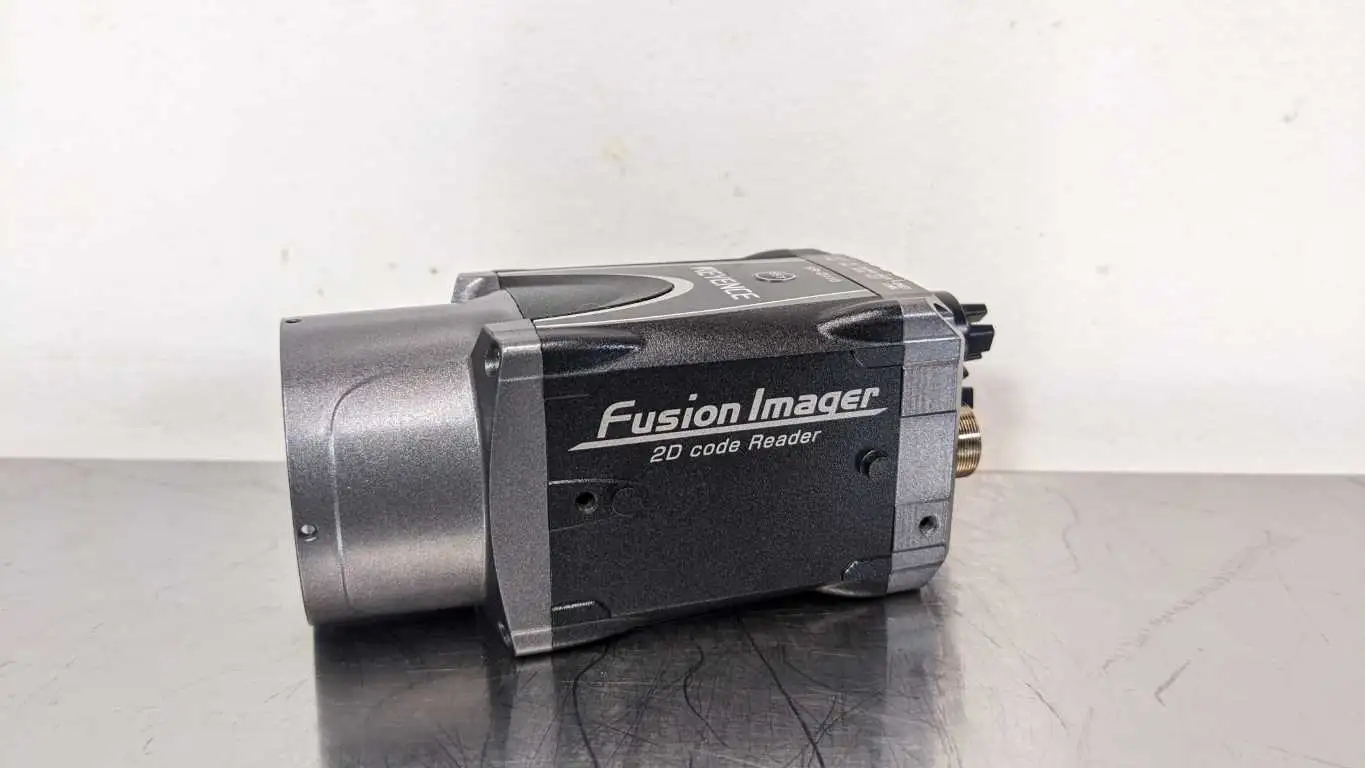

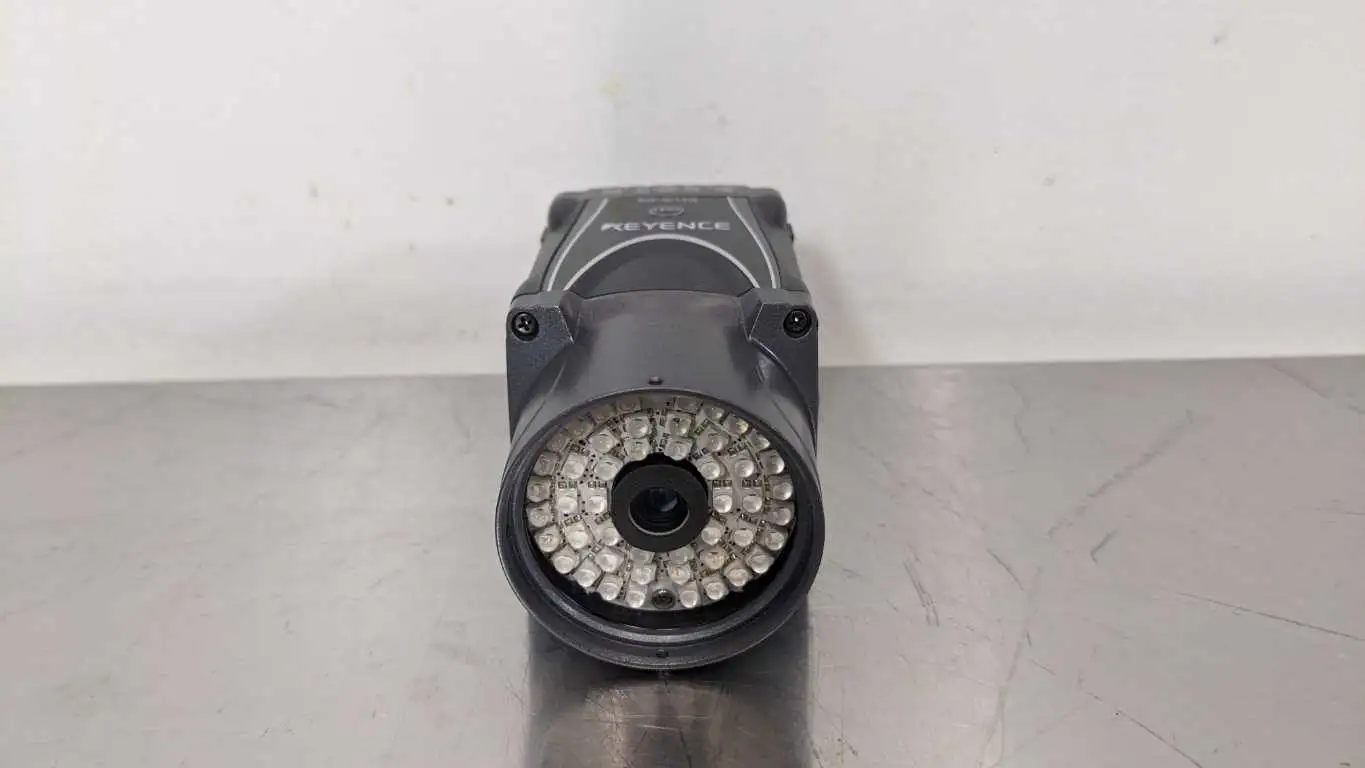

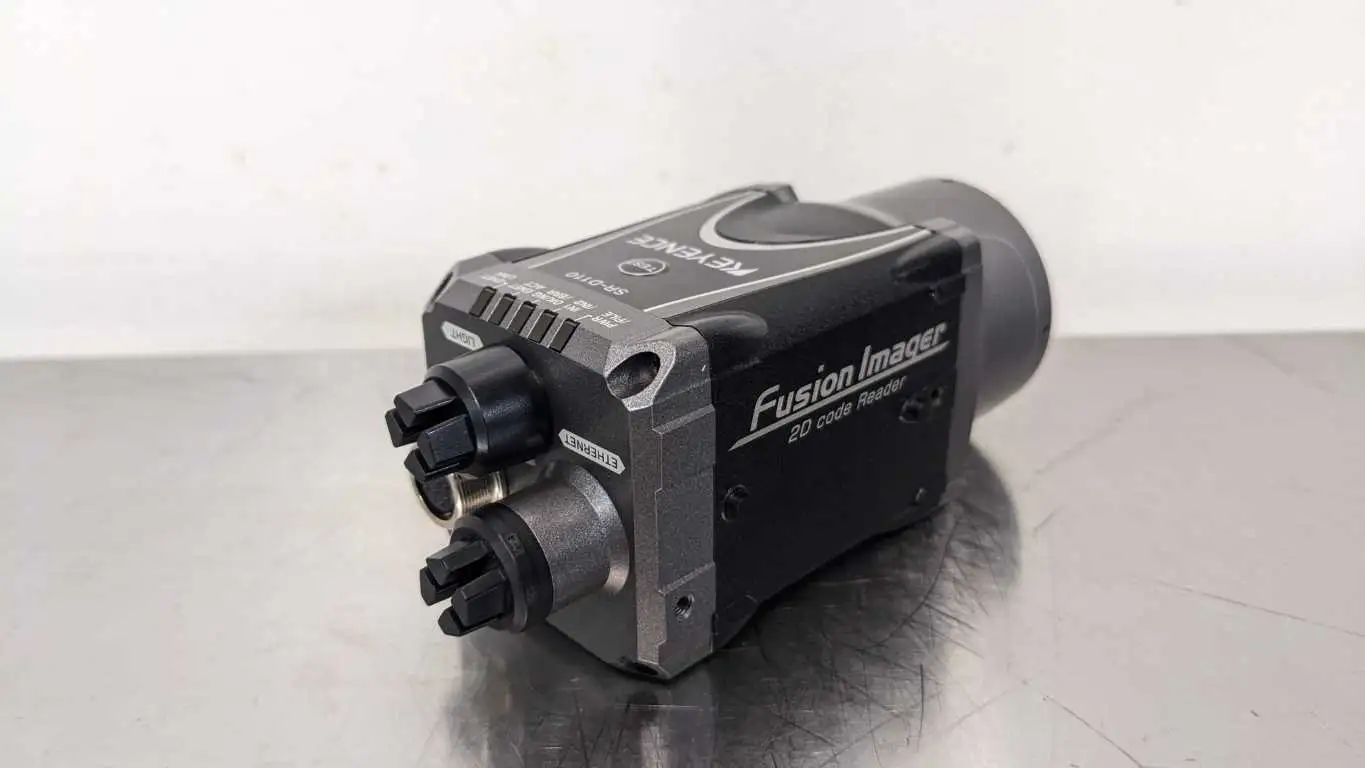

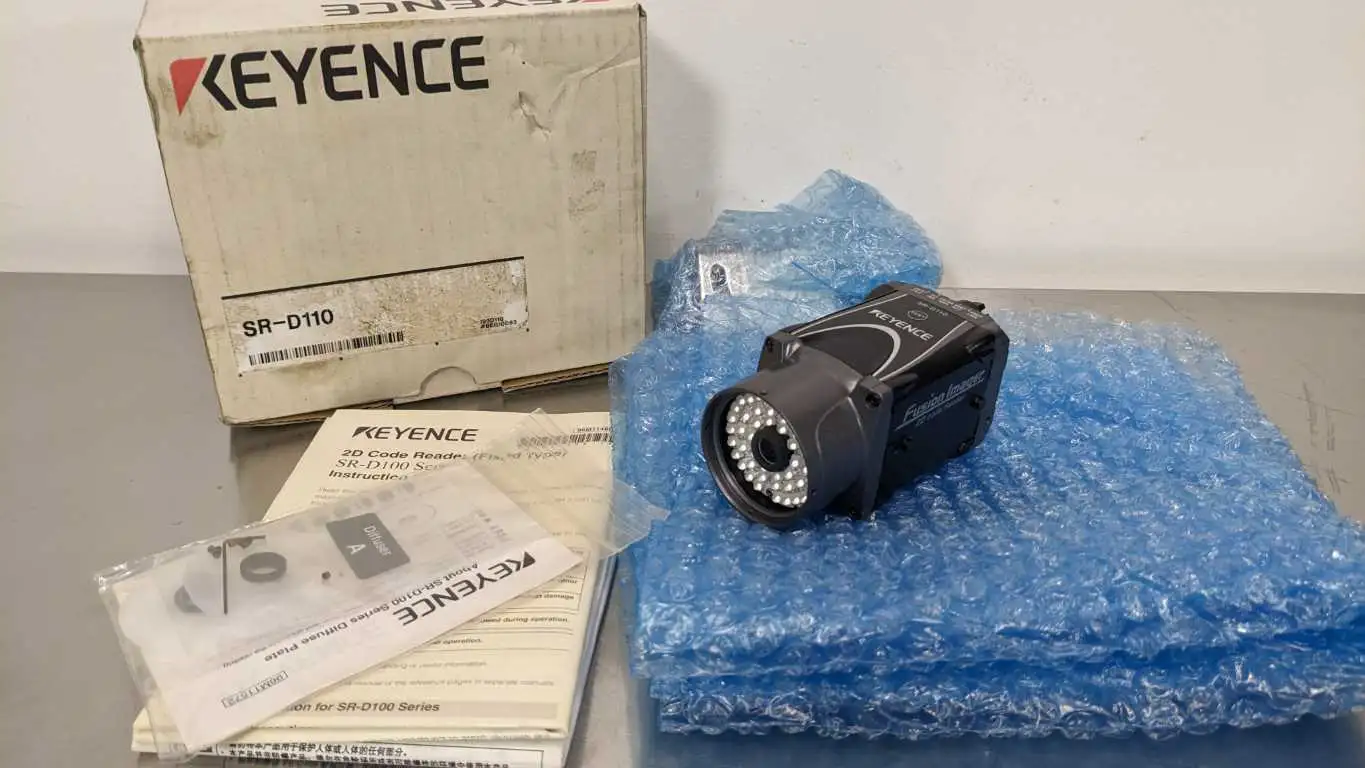

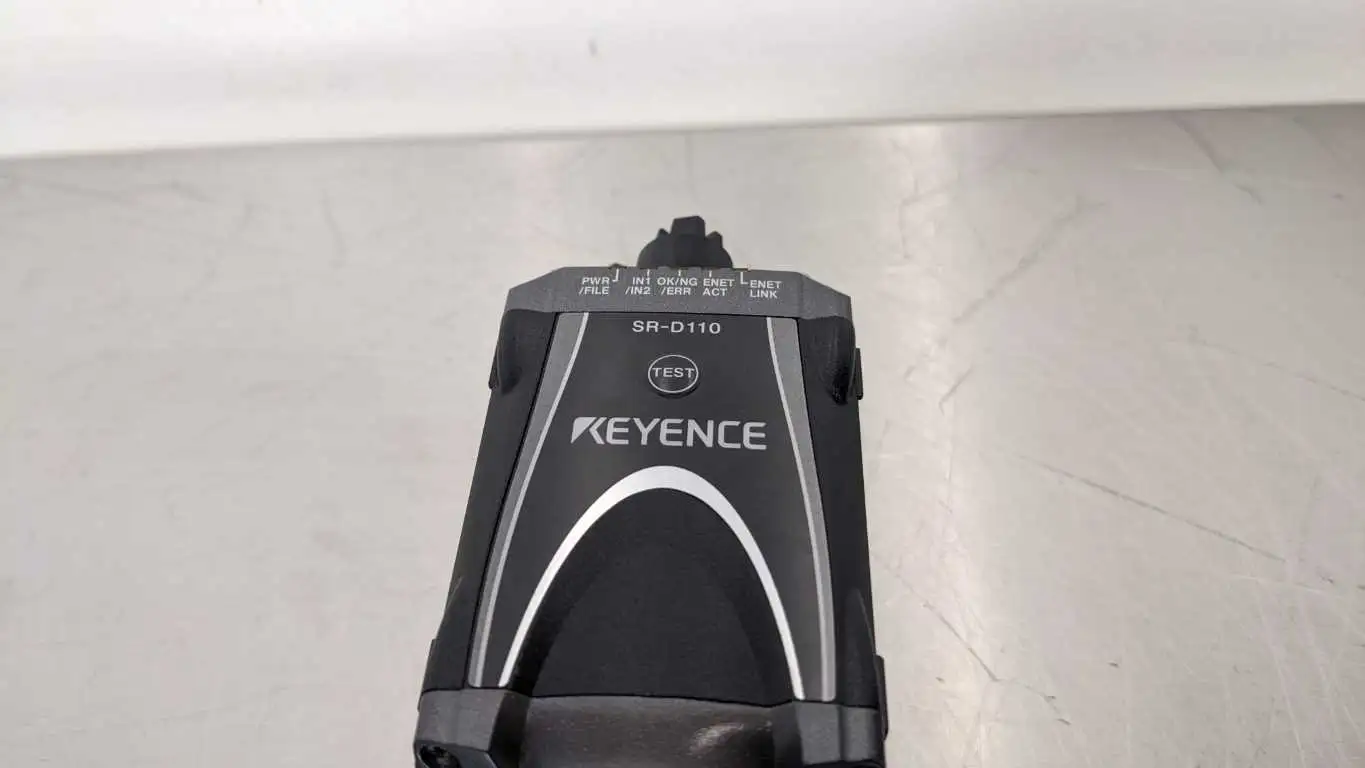

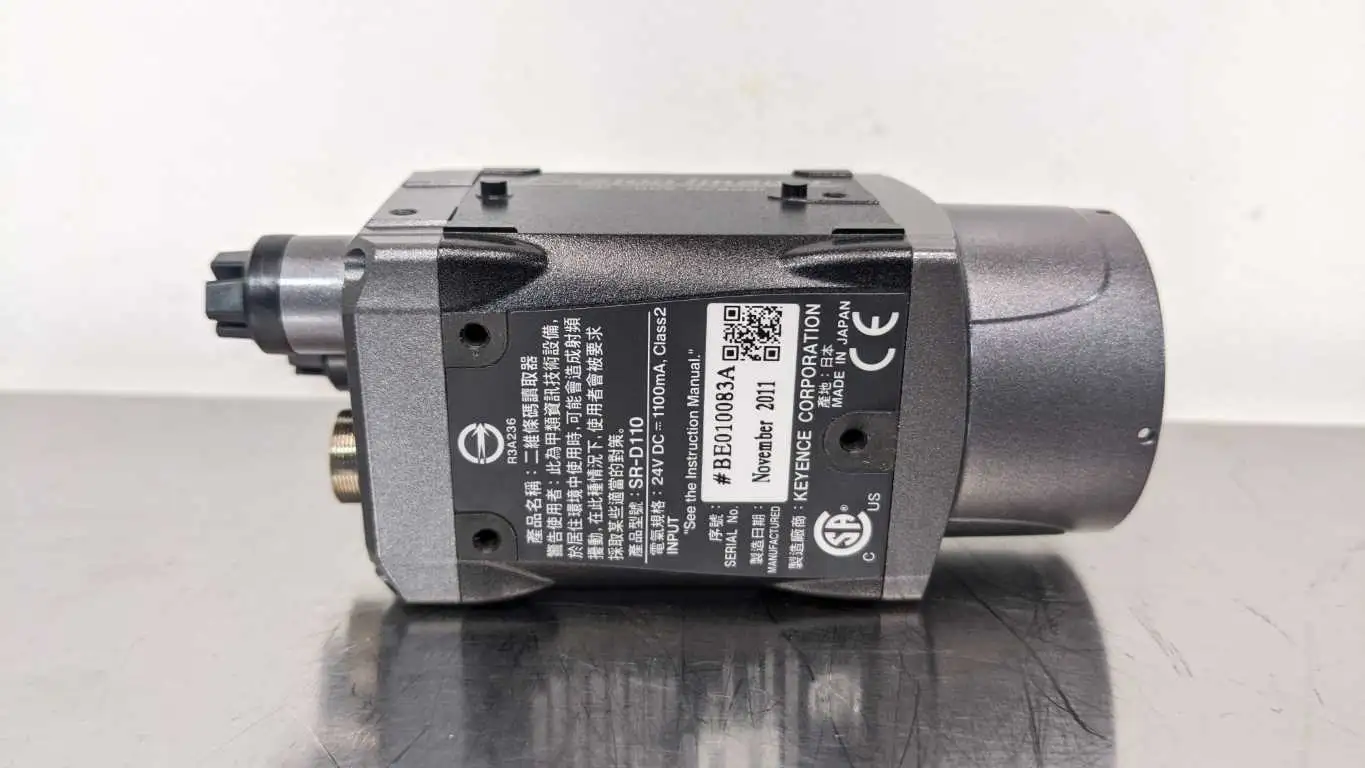

Keyence SR-D110 2D Code Reader Fusion Imager
Brand: Keyence | Model: SR-D110 | Condition: New | NEO SKU: 12233-2
Original price was: $441.19.$344.96Current price is: $344.96.
1 in stock
Free Shipping on orders over $50.
*(Domestic only)
Need it fast? Next Day Air available at check out.
Same Day Handling on orders prior to 2pm Eastern Monday – Friday
1 in stock
NEO SKU: 12233-2 | Category: Camera & CCTV Testers
Product Details for New Keyence SR-D110 2D Code Reader Fusion Imager:
Condition: New
Brand: Keyence
Model: SR-D110
Country of Origin: Japan
MFG Product Notes
Model: SR-D110
Type: Wide-field type
Internal memory
RAM: Max. saved images: 80
ROM: Max. saved images: 1000
Illumination
Light source: High-intensity red LED
Reading
Supported codes: QR, MicroQR, DataMatrix (ECC200), GS1 DtaMatrix
Focal distance: 150 mm 5.91″
Cell size (focal position): 0.22 mm 0.009″
View range (focal position): 47.4 × 30.3 mm 1.87″ x 1.19″
Serial communication
Communication standard: RS-232C compliant
Communication speed: 9600, 19200, 38400, 57600, 115200 bps
Supported protocols: Procedureless, MC protocol, SYSWAY, KVSTUDIO
Ethernet
Communication standard: Complies with IEEE802.3/100Base-TX
Protcol: TCP/IP, EtherNet/IP®, PROFINET, MC protocol, KVSTUDIO, FTP, BooTP
Input terminals
Number of terminals: 2
Input format: Two-way voltage input
Max. rating: 26.4 VDC
Min. on voltage: 15 VDC
Max. off voltage: 0.2 mA or less
Output terminals
Number of terminals: 3
Output format: PhotoMOS relay
Max. rating: 30 VDC
Max. load current: 1-output max.: 50 mA, 3-output total: 100 mA
OFF leak current: 0.1 mA max.
ON residual voltage: 1 V max.
Rating
Power voltage: 24 VDC ±10 %
Current consumption: 600 mA (SR-D100 Series standalone), 1,100 mA (with SR-DR15 attached),
850 mA (with SR-DR10 attached), 800 mA (with SR-DS3 attached)
Environmental resistance
Enclosure rating: IP65
Ambient light: Sunlight: 10,000 lux, Incandescent lamp: 6,000 lux, Fluorescent lamp: 2,000 lux
Ambient temperature: 0 to +45 °C 32 to 113 °F
Relative humidity: 35 to 95 % RH (No condensation)
Operating environment: No dust or corrosive gases present
Vibration resistance: 10 to 57 Hz, Double amplitude 0.75 mm 0.030″, 3 hours in each of the X, Y, and Z directions
Weight: Approx. 300 g (including diffuser plate)
MFG Description
Keyence is a global leader in industrial automation and inspection solutions, offering innovative products such as sensors, vision systems, and measurement instruments, known for their accuracy and reliability.
MFG URL
For more information about this product or Keyence, check out their website: https://keyence.com
Only logged in customers who have purchased this product may leave a review.
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 8 × 8 × 7 in |
| Brand | Keyence |
| Model | SR-D110 |
| Origin | Japan |
| Condition | New |
Product Details for Keyence SR-D110 2D Code Reader Fusion Imager
SKU: 12233-2
Condition: New Surplus Manufacturer Packaging
Brand: Keyence
Model: SR-D110
Description: 2D Code Reader Fusion Imager
Origin: Japan
Additional MFG Notes on Keyence SR-D110 2D Code Reader Fusion Imager:
Model: SR-D110
Type: Wide-field type
Internal memory
RAM: Max. saved images: 80
ROM: Max. saved images: 1000
Illumination
Light source: High-intensity red LED
Reading
Supported codes: QR, MicroQR, DataMatrix (ECC200), GS1 DtaMatrix
Focal distance: 150 mm 5.91″
Cell size (focal position): 0.22 mm 0.009″
View range (focal position): 47.4 × 30.3 mm 1.87″ x 1.19″
Serial communication
Communication standard: RS-232C compliant
Communication speed: 9600, 19200, 38400, 57600, 115200 bps
Supported protocols: Procedureless, MC protocol, SYSWAY, KVSTUDIO
Ethernet
Communication standard: Complies with IEEE802.3/100Base-TX
Protcol: TCP/IP, EtherNet/IP®, PROFINET, MC protocol, KVSTUDIO, FTP, BooTP
Input terminals
Number of terminals: 2
Input format: Two-way voltage input
Max. rating: 26.4 VDC
Min. on voltage: 15 VDC
Max. off voltage: 0.2 mA or less
Output terminals
Number of terminals: 3
Output format: PhotoMOS relay
Max. rating: 30 VDC
Max. load current: 1-output max.: 50 mA, 3-output total: 100 mA
OFF leak current: 0.1 mA max.
ON residual voltage: 1 V max.
Rating
Power voltage: 24 VDC ±10 %
Current consumption: 600 mA (SR-D100 Series standalone), 1,100 mA (with SR-DR15 attached),
850 mA (with SR-DR10 attached), 800 mA (with SR-DS3 attached)
Environmental resistance
Enclosure rating: IP65
Ambient light: Sunlight: 10,000 lux, Incandescent lamp: 6,000 lux, Fluorescent lamp: 2,000 lux
Ambient temperature: 0 to +45 °C 32 to 113 °F
Relative humidity: 35 to 95 % RH (No condensation)
Operating environment: No dust or corrosive gases present
Vibration resistance: 10 to 57 Hz, Double amplitude 0.75 mm 0.030″, 3 hours in each of the X, Y, and Z directions
Weight: Approx. 300 g (including diffuser plate)
