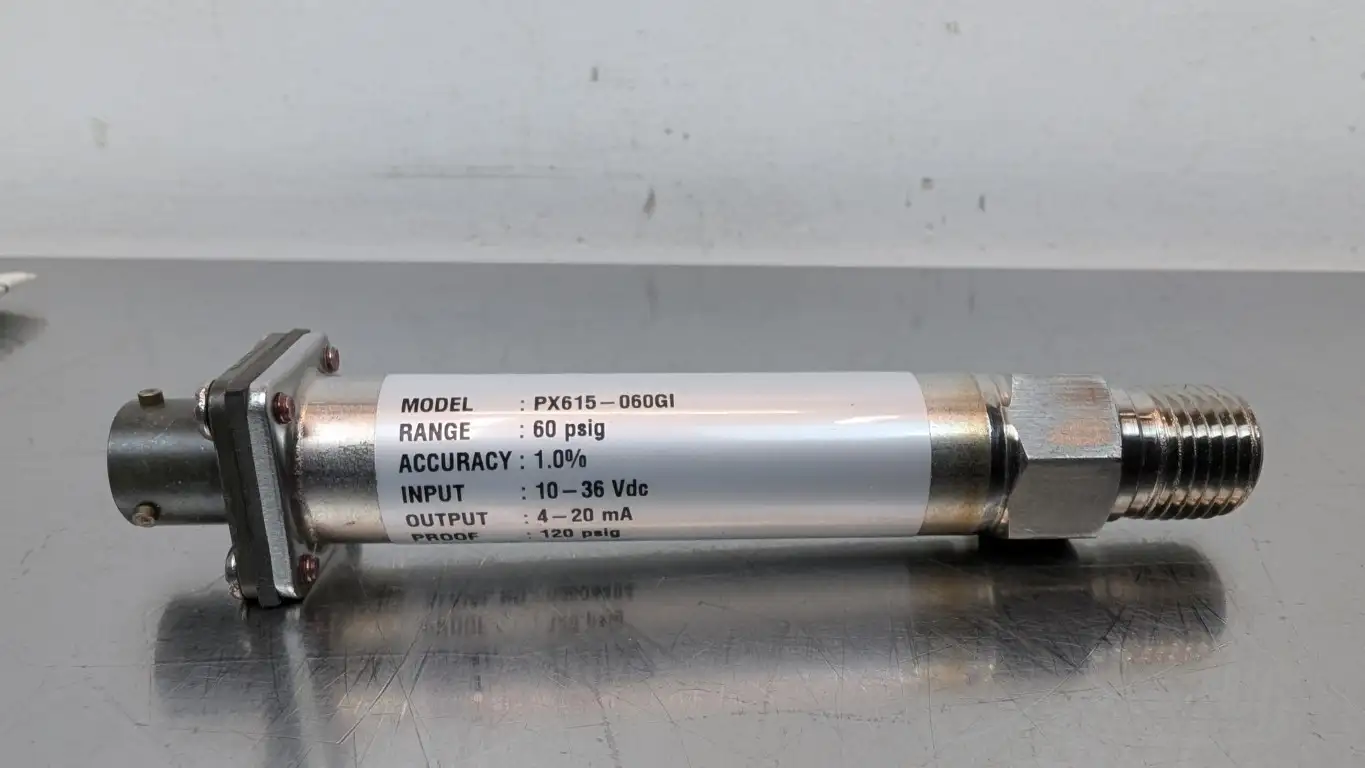

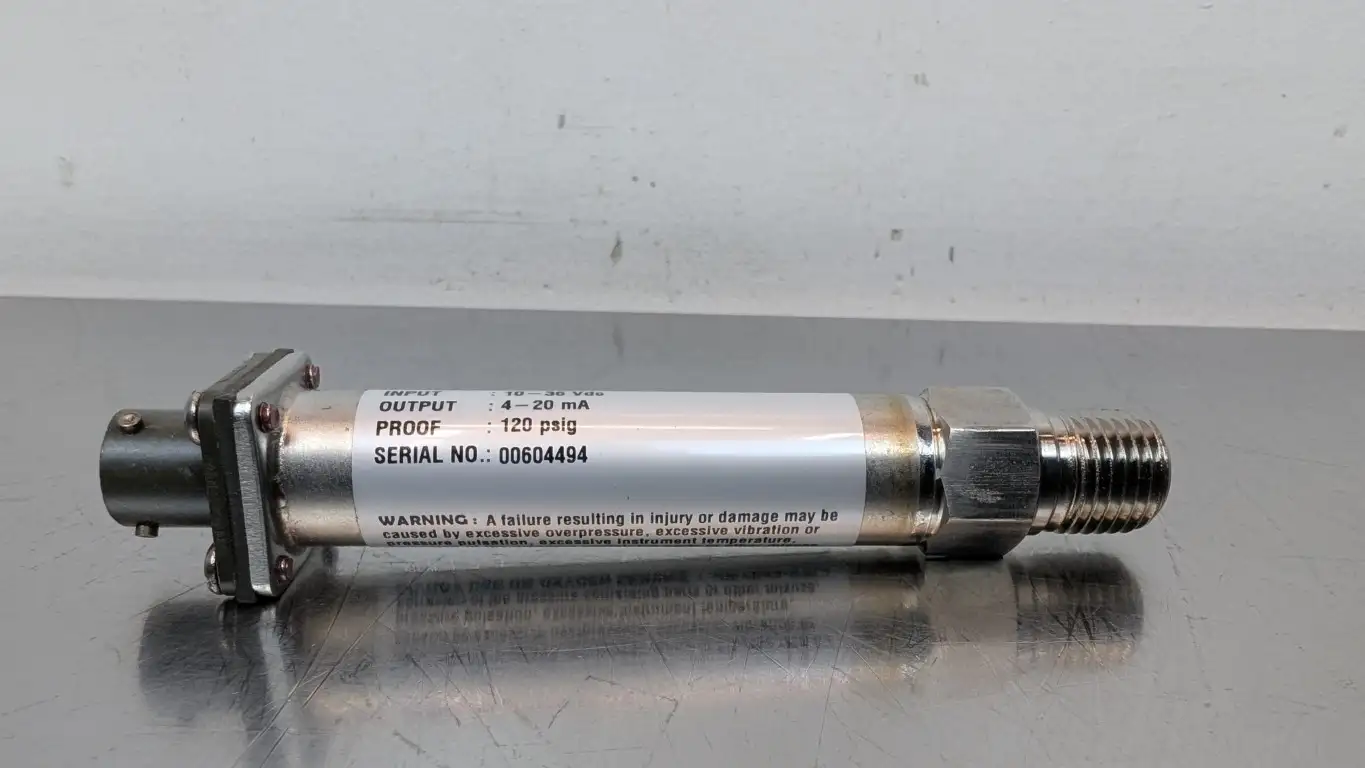

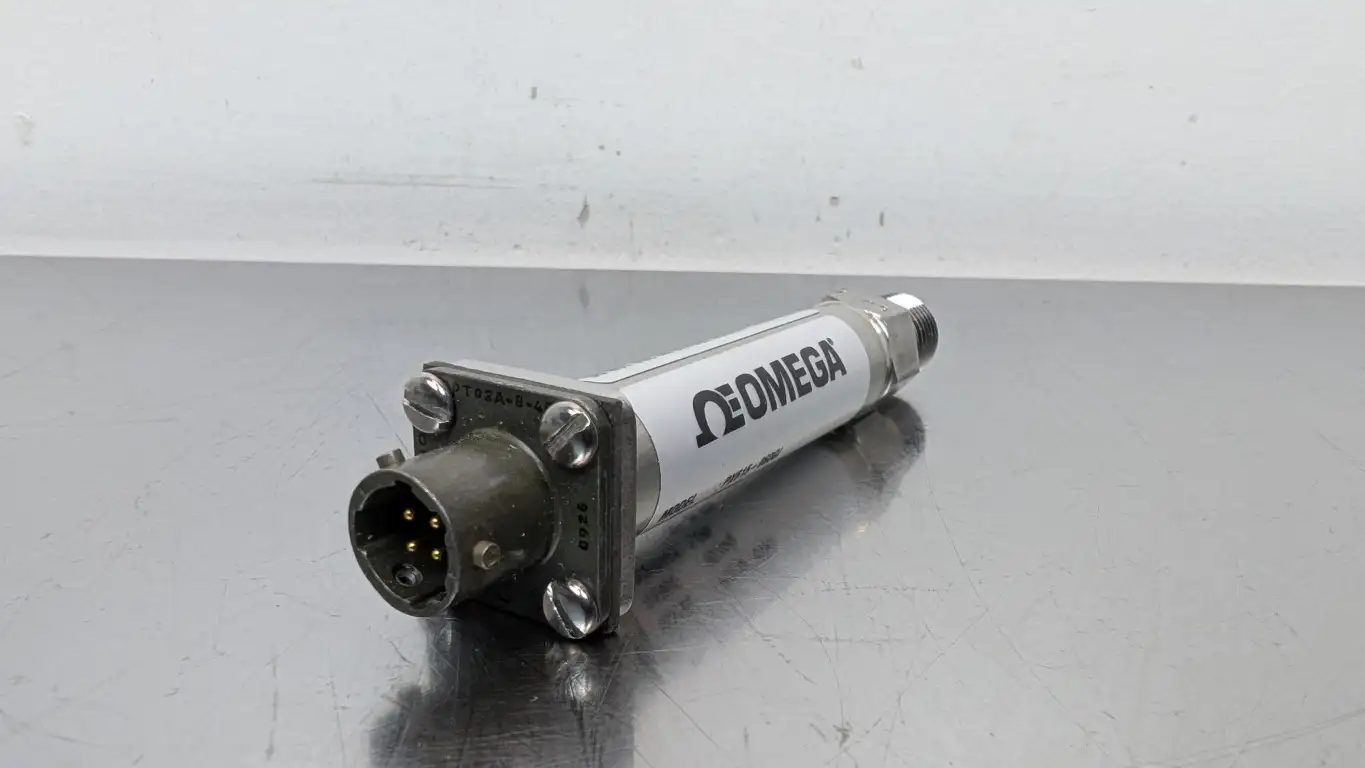

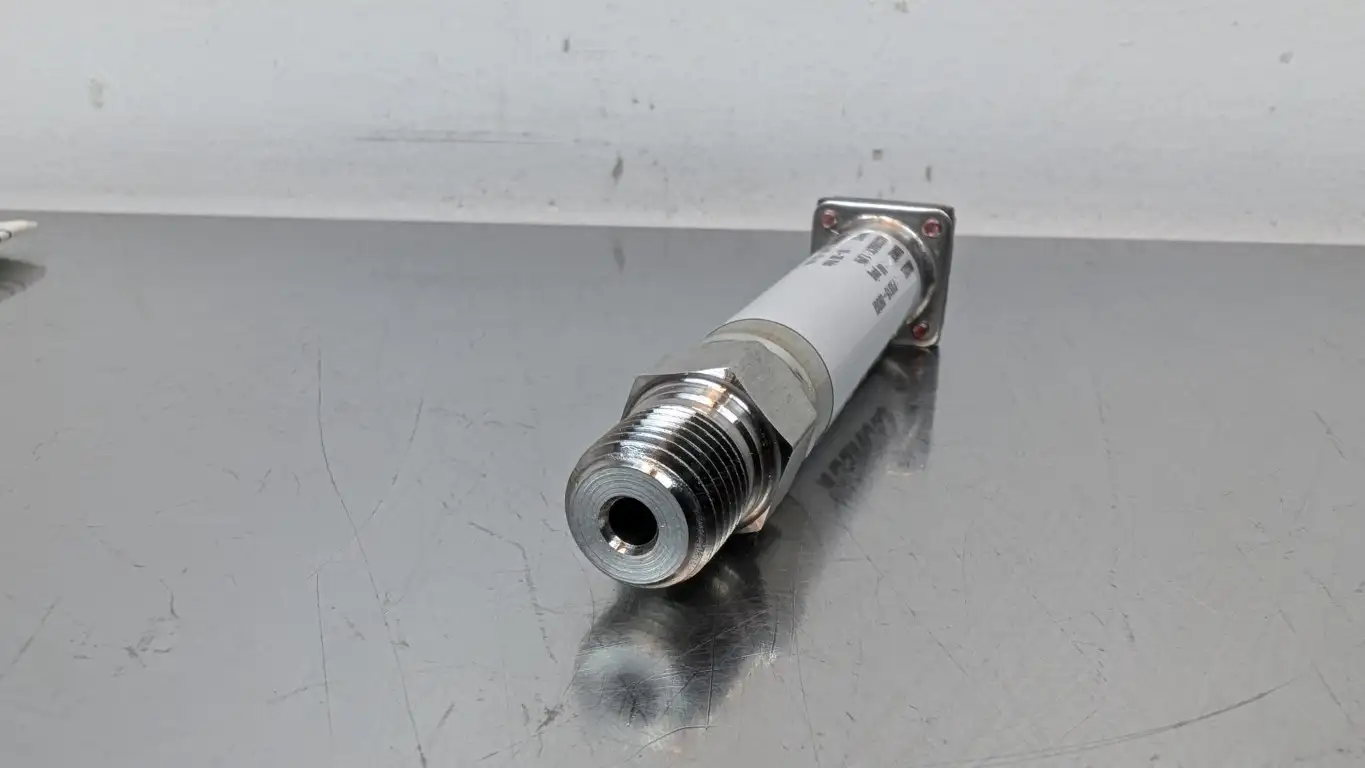

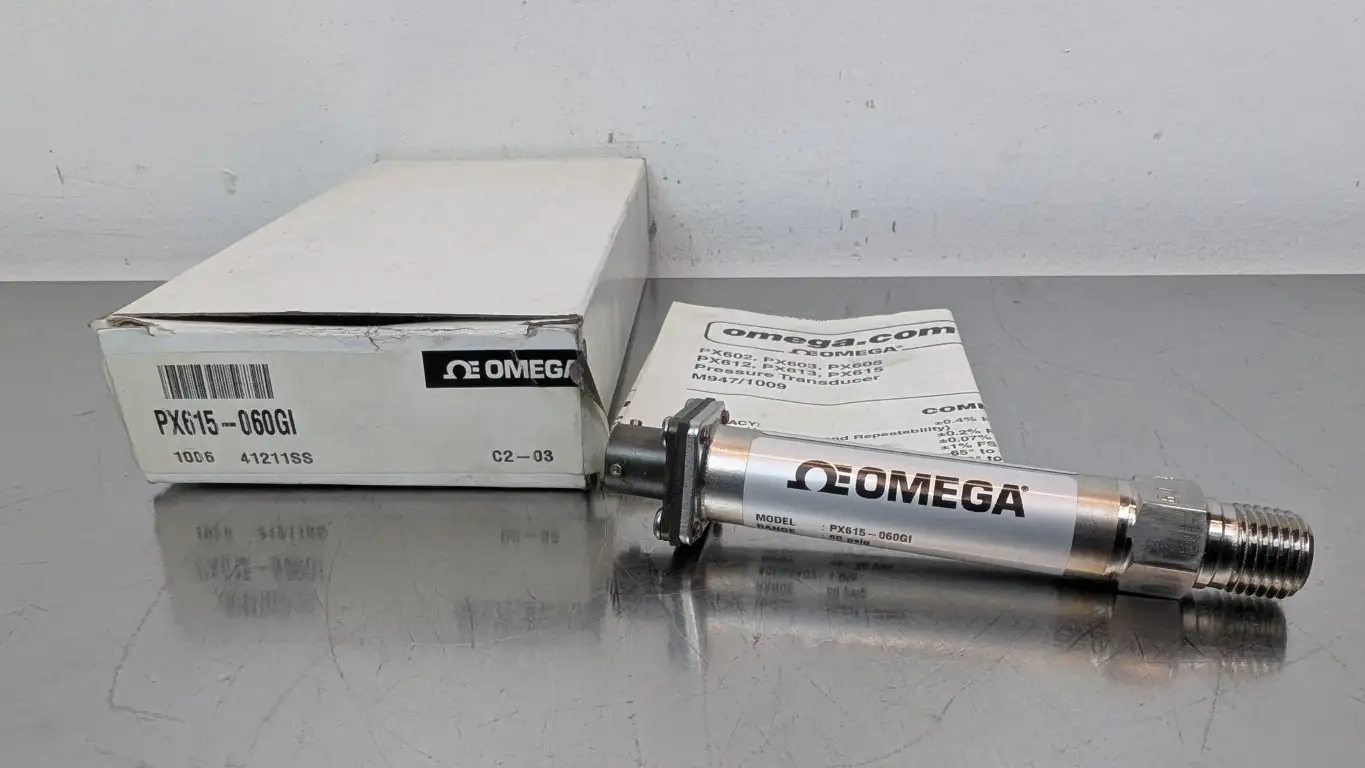

Omega PX615-060GI Pressure Transducer 60 PSI 1/4″ NPT Dwyer 10-36VDC 4-20mA
Brand: Omega | Model: PX615-060GI | Condition: New | NEO SKU: 15033-2
Original price was: $470.60.$375.96Current price is: $375.96.
1 in stock
Free Shipping on orders over $50.
*(Domestic only)
Need it fast? Next Day Air available at check out.
Same Day Handling on orders prior to 2pm Eastern Monday – Friday
1 in stock
NEO SKU: 15033-2 | Category: Pressure Switches
Omega PX615-060GI Pressure Transducer 60 PSI 1/4″ NPT Dwyer 10-36VDC 4-20mA - New
Product Details
Condition: New
Brand: Omega
Secondary Brand: Dwyer
Model: PX615-060GI
Capacity: 60 PSI 1/4″ NPT
Electrical
Input
Volts: 10-36VDC
Amps: 4-20mA
MFG Product Notes
Brand OMEGA Engineering
Accuracy ± 0.4 %
Accuracy Class > 0.25%
Accuracy Detail ± 0.4% BFSL
Additional Features 1 None
Burst Pressure 8x Full Scale
Burst Pressure Note 800% FS
Cable Length 0.9 m
Compensated Temperature, Max 82 °C
Compensated Temperature, Min -29 °C
Current Draw <3.0 mA
Electrical Connection MIL-26482-I 8-4P
Electrical Output 4 to 20 mA
Electrical Output Note None
Enclosure Material 17-4 PH Stainless Steel
Gauge Type Thin-film polysilicone Piezoresistive
Hysteresis ± 0.2%
Insulation Resistance 100 MΩ
Mating Connector MIL-26482-I 8-4S
Measurement Pressure Type Gauge
Measurement Pressure, Max 60 psi
Measurement Pressure, Min 0 psi
Operating Temperature, Max 90 °C
Operating Temperature, Min -48 °C
Output Signal Current
Pressure Cycles 100 million
Process Connection Size 1/4 in
Process Connection Type NPT Male
Proof Pressure 2x Full Scale
Proof Pressure Note 200% FS
Repeatability Error ± 0.05% full scale
Response Time 5 ms
Stability ± 1.0%
Supply Power Note 10 to 36 Vdc unregulated
Supply Voltage 10 to 36 Vdc
Thermal Effect on Span error, Max ± 0.07% FS/°C
Thermal Effect on Zero error, Max ± 0.07% FS/°C , ± 0.07% FS/°C
Weight 128 g
Only logged in customers who have purchased this product may leave a review.
Related Products
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 7 × 5 in |
| Brand | Omega |
| Model | PX615-060GI |
| Input Volts | 10-36VDC |
| Input Amps | 4-20mA |
| Capacity | 60 PSI 1/4" NPT |
| Condition | New |
| Secondary Brand | Dwyer |
Omega PX615-060GI Pressure Transducer 60 PSI 1/4″ NPT Dwyer 10-36VDC 4-20mA
Product Details
SKU: 15033-2
Condition: New Surplus Manufacturer Packaging
Brand: Omega| Dwyer
Model: PX615-060GI
Additional Description: 10-36VDC 4-20mA
Description: Pressure Transducer
Electrical
Input Volts: 10-36VDC
Input Amps: 4-20mA
Capacity: 60 PSI 1/4″ NPT
Additional MFG Notes on Omega PX615-060GI Pressure Transducer 60 PSI 1/4″ NPT Dwyer 10-36VDC 4-20mA:
Brand OMEGA Engineering
Accuracy ± 0.4 %
Accuracy Class > 0.25%
Accuracy Detail ± 0.4% BFSL
Additional Features 1 None
Burst Pressure 8x Full Scale
Burst Pressure Note 800% FS
Cable Length 0.9 m
Compensated Temperature, Max 82 °C
Compensated Temperature, Min -29 °C
Current Draw <3.0 mA
Electrical Connection MIL-26482-I 8-4P
Electrical Output 4 to 20 mA
Electrical Output Note None
Enclosure Material 17-4 PH Stainless Steel
Gauge Type Thin-film polysilicone Piezoresistive
Hysteresis ± 0.2%
Insulation Resistance 100 MΩ
Mating Connector MIL-26482-I 8-4S
Measurement Pressure Type Gauge
Measurement Pressure, Max 60 psi
Measurement Pressure, Min 0 psi
Operating Temperature, Max 90 °C
Operating Temperature, Min -48 °C
Output Signal Current
Pressure Cycles 100 million
Process Connection Size 1/4 in
Process Connection Type NPT Male
Proof Pressure 2x Full Scale
Proof Pressure Note 200% FS
Repeatability Error ± 0.05% full scale
Response Time 5 ms
Stability ± 1.0%
Supply Power Note 10 to 36 Vdc unregulated
Supply Voltage 10 to 36 Vdc
Thermal Effect on Span error, Max ± 0.07% FS/°C
Thermal Effect on Zero error, Max ± 0.07% FS/°C , ± 0.07% FS/°C
Weight 128 g
NEO Surplus is not an authorized distributor, representative, reseller, or affiliated with Omega or any manufacturer, brand, or product. Items being sold are not covered under any manufacturer warranty. All trademarks, brand names and brands appearing herein are the property of their respective owners.
We do our best to get all the information in this listing correct. If you see an error or have any questions, please contact us.
FAQ’s
Looking for a replacement Omega PX615-060GI with fast shipping?
NEO Surplus will ship in stock items the same day if purchased by 2pm ET, Monday – Friday.
What is the HP rating for Omega PX615-060GI?
HP:
NEO Surplus is not an authorized distributor, representative, reseller, or affiliated with Omega or any manufacturer, brand, or product. Items being sold are not covered under any manufacturer warranty. All trademarks, brand names and brands appearing herein are the property of their respective owners.
NEO Surplus buys surplus MRO items and then resells them on the secondary parts markets.
We do our best to get all the information in this listing correct. If you have any questions or see an error, please contact us.
Reviews
There are no reviews yet.
