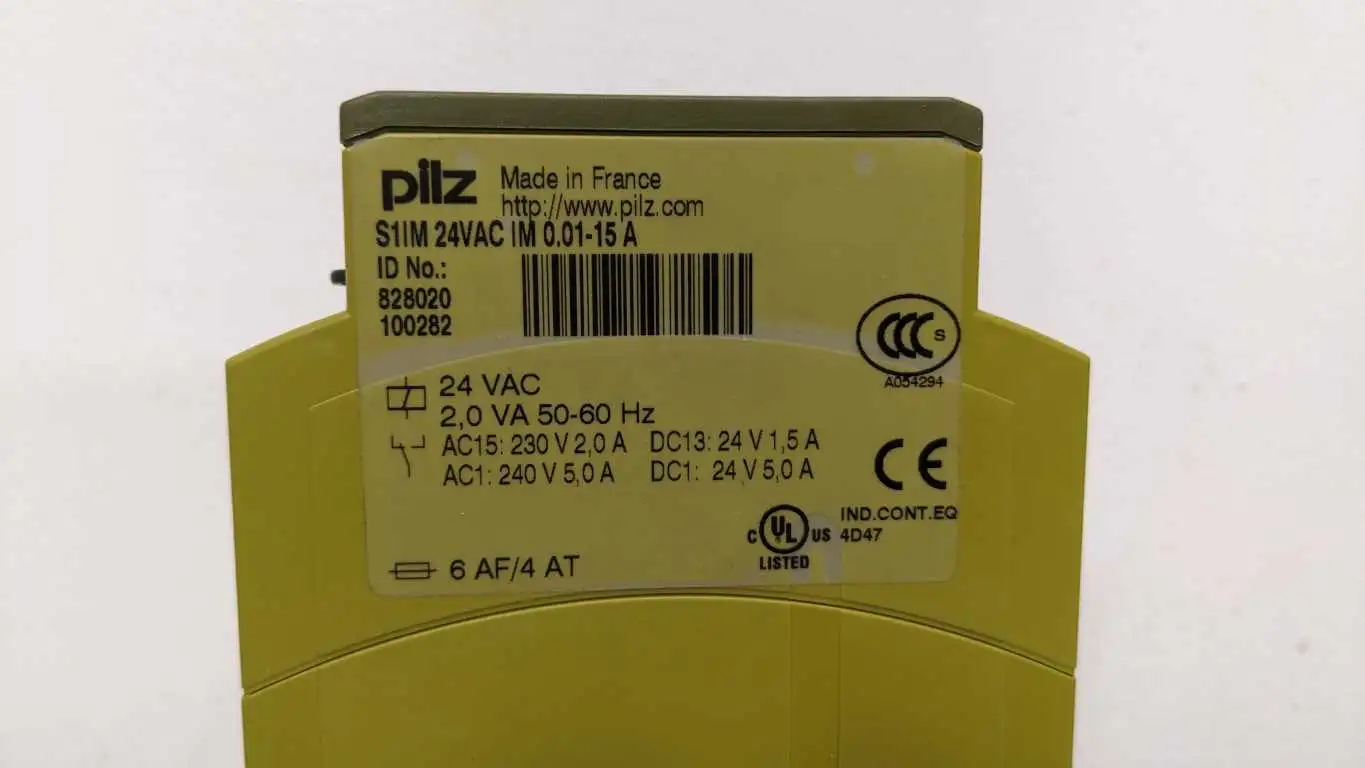

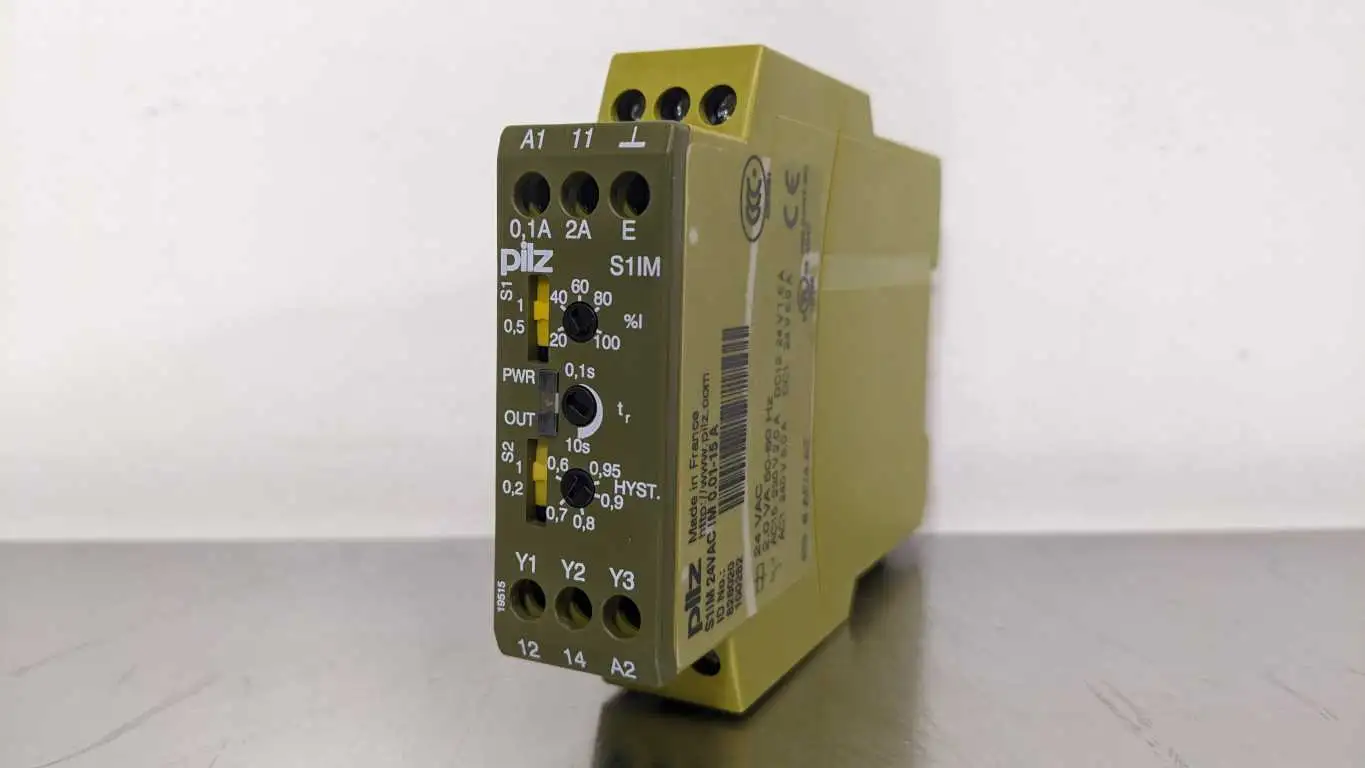

Pilz 828020 Voltage Monitoring Relay 24VAC 2.0A S1/M 24VAC IM 0.01-15A
Original price was: $264.71.$211.48Current price is: $211.48.
1 in stock
Free Shipping on orders over $50.
*(Domestic only)
Need it fast? Next Day Air available at check out.
Same Day Handling on orders prior to 2pm Eastern Monday – Friday
1 in stock
NEO SKU: 12229-2 | Category: Safety Relays
Product Details for New Pilz 828020 Voltage Monitoring Relay 24VAC 2.0A S1/M 24VAC IM 0.01-15A:
MFG Product Notes
S1IM 24VAC IM 0.01-15 A
Product ID: 828020

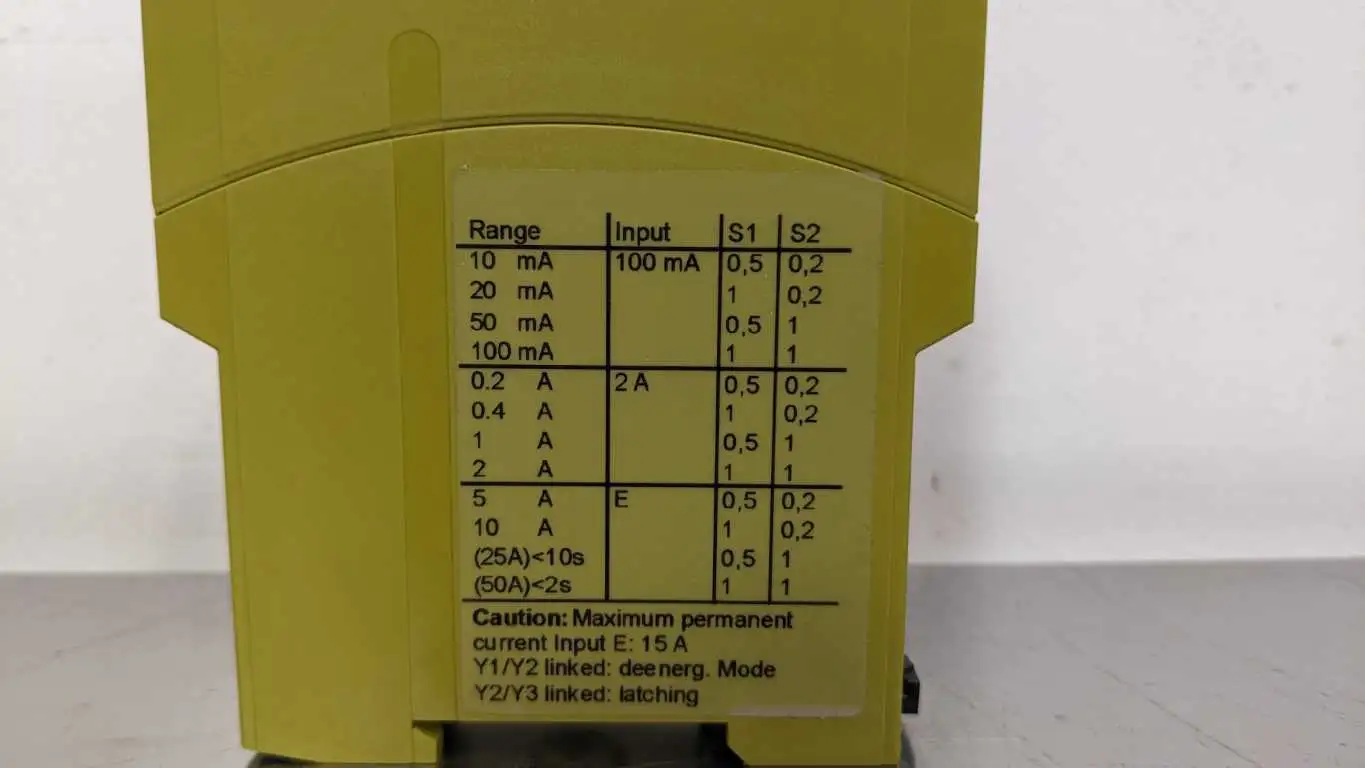

Voltage monitoring relay, to monitor max. current values, 12 measuring ranges 0.01 – 15 A selectable, 0, 40 – 400 Hz, width = 22.5mm, UB = 24 V AC.
General data
Approval CE
CCC
UKCA
cULus Listed
Technical data
Electrical data
Supply voltage (V) 24 V
Type of supply voltage U1 AC
Power consumption AC 2 VA
Max. device circuit breaker Max. conductor cross section
Relay outputs
Utilisation cat. AC/DC1 stand. EN 60947-4-1
Utilisation cat. AC15/DC13sta. EN 60947-5-1
Safety contacts: AC at UL 240 VAC Res. NO Side Only
Safety contacts: pilot duty B300, R300
Relay contact material AgCdO
Addit. contact details relay + 3.0 ยตm Au
Environmental data
Climatic suitability to … EN 60068-2-78
Ambient temperature -15 – 55 ยฐC
Condensation permitted? Not permitted
EMC to standard … EN 60947-5-1
EN 61000-6-2
Vibration to standard … EN 60068-2-6
Clearance & creepage dist. to EN 60947-1
Protection type, mounting
Protection type, housing
Terminal protection type
Mechanical data
Mounting position any
Housing material lower section PPO UL 94 V0
Housing material front plate ABS UL 94 V0
Housing material upper part PPO UL 94 V0
Connection terminal Screw terminal
Terminal style fixed
Flex. cond. c/s AWG info 24 – 10 AWG
Height dimension 87 mm
Width dimension 22.5 mm
Depth dimension 121 mm
Net weight 160 g
Gross weight 170 g
MFG Description
Pilz designs and manufactures high-quality safety automation products, including safety relays, sensors, and control systems, providing reliable solutions for machine safety and industrial automation.
MFG URL
For more information about this product or Pilz, check out their website: https://pilz.com
Only logged in customers who have purchased this product may leave a review.
Related Products
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 8 × 7 in |
| Brand | |
| Model | 828020 |
| Hertz | 50/60 |
| Input Volts | 24VAC |
| Input Amps | 2.0A |
| Condition | New |
Product Details for Pilz 828020 Voltage Monitoring Relay 24VAC 2.0A S1/M 24VAC IM 0.01-15A
SKU: 12229-2

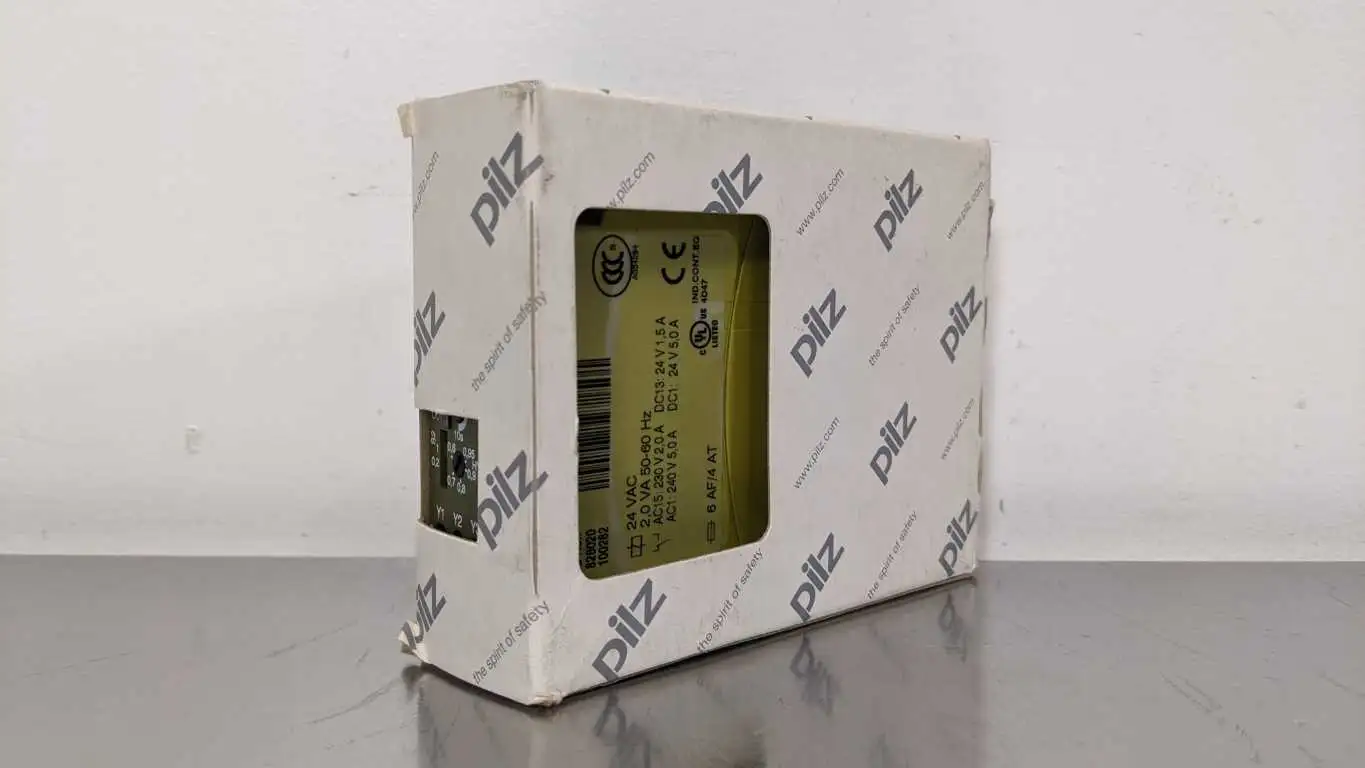

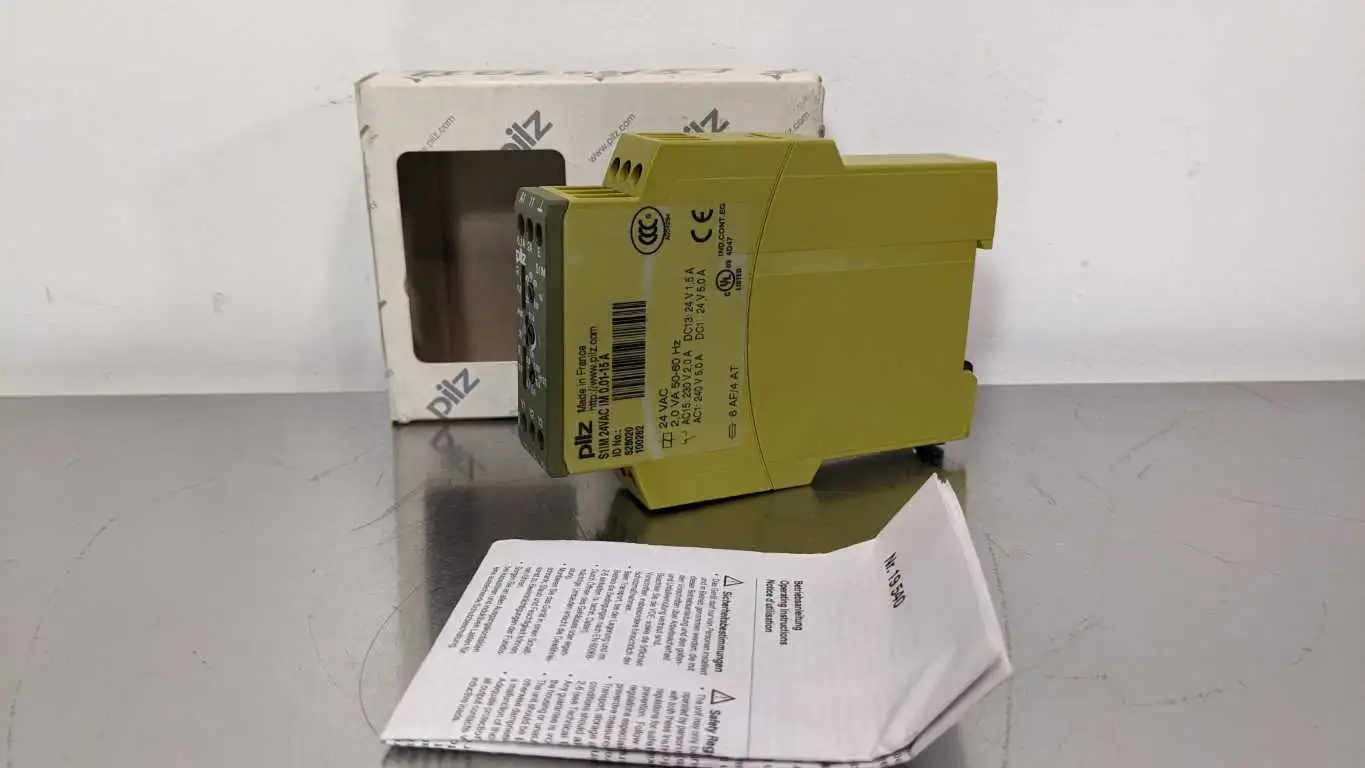

Condition: New Surplus Manufacturer Packaging
Brand: Pilz
Model: 828020
Additional Description: 24VAC 2.0A
Description: Voltage Monitoring Relay S1/M 24VAC IM 0.01-15A
Electrical
Hz: 50/60
Input Volts: 24VAC
Input Amps: 2.0A
Additional MFG Notes on Pilz 828020 Voltage Monitoring Relay 24VAC 2.0A S1/M 24VAC IM 0.01-15A:
S1IM 24VAC IM 0.01-15 A
Product ID: 828020
Voltage monitoring relay, to monitor max. current values, 12 measuring ranges 0.01 – 15 A selectable, 0, 40 – 400 Hz, width = 22.5mm, UB = 24 V AC.
General data
Approval CE
CCC
UKCA
cULus Listed
Technical data
Electrical data
Supply voltage (V) 24 V
Type of supply voltage U1 AC
Power consumption AC 2 VA
Max. device circuit breaker Max. conductor cross section
Relay outputs
Utilisation cat. AC/DC1 stand. EN 60947-4-1
Utilisation cat. AC15/DC13sta. EN 60947-5-1
Safety contacts: AC at UL 240 VAC Res. NO Side Only
Safety contacts: pilot duty B300, R300
Relay contact material AgCdO
Addit. contact details relay + 3.0 ยตm Au
Environmental data
Climatic suitability to … EN 60068-2-78
Ambient temperature -15 – 55 ยฐC
Condensation permitted? Not permitted
EMC to standard … EN 60947-5-1
EN 61000-6-2
Vibration to standard … EN 60068-2-6
Clearance & creepage dist. to EN 60947-1
Protection type, mounting
Protection type, housing
Terminal protection type
Mechanical data
Mounting position any
Housing material lower section PPO UL 94 V0
Housing material front plate ABS UL 94 V0
Housing material upper part PPO UL 94 V0
Connection terminal Screw terminal
Terminal style fixed
Flex. cond. c/s AWG info 24 – 10 AWG
Height dimension 87 mm
Width dimension 22.5 mm
Depth dimension 121 mm
Net weight 160 g
Gross weight 170 g
