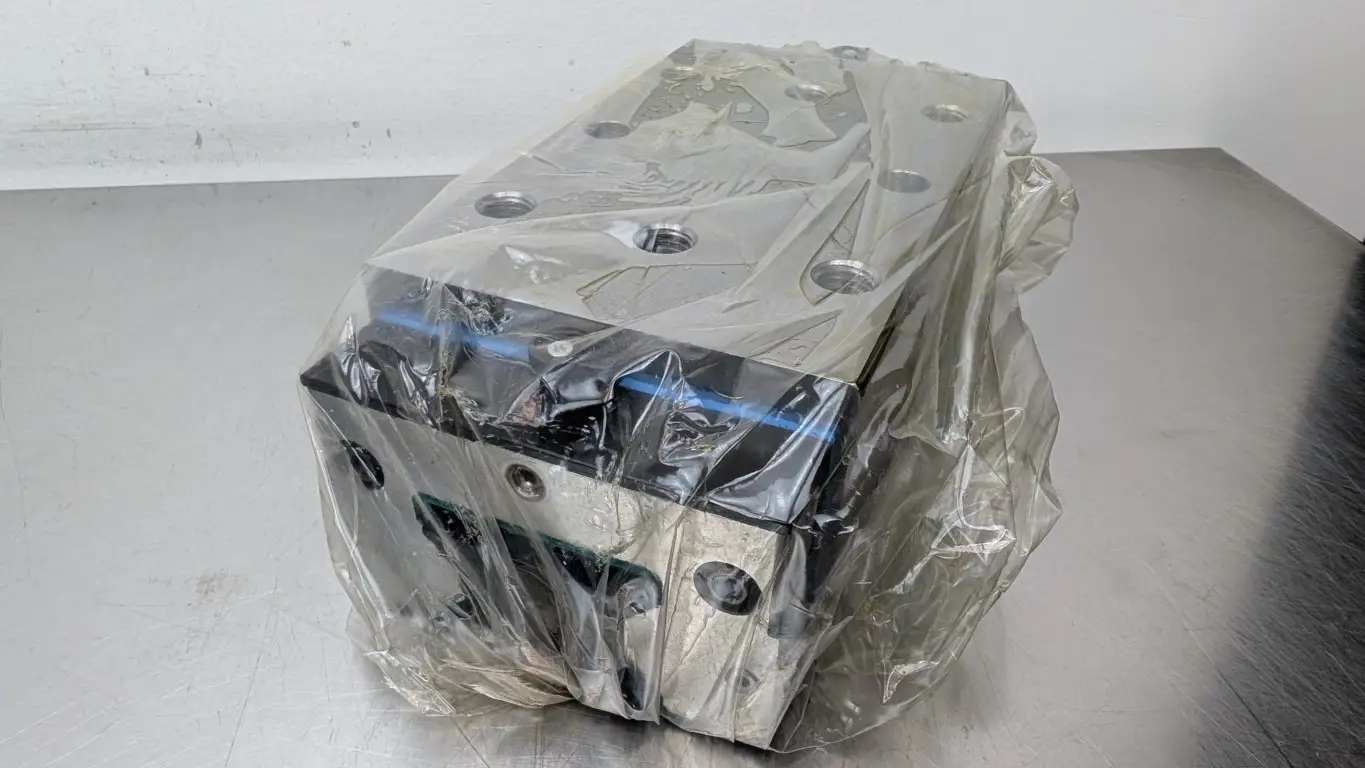

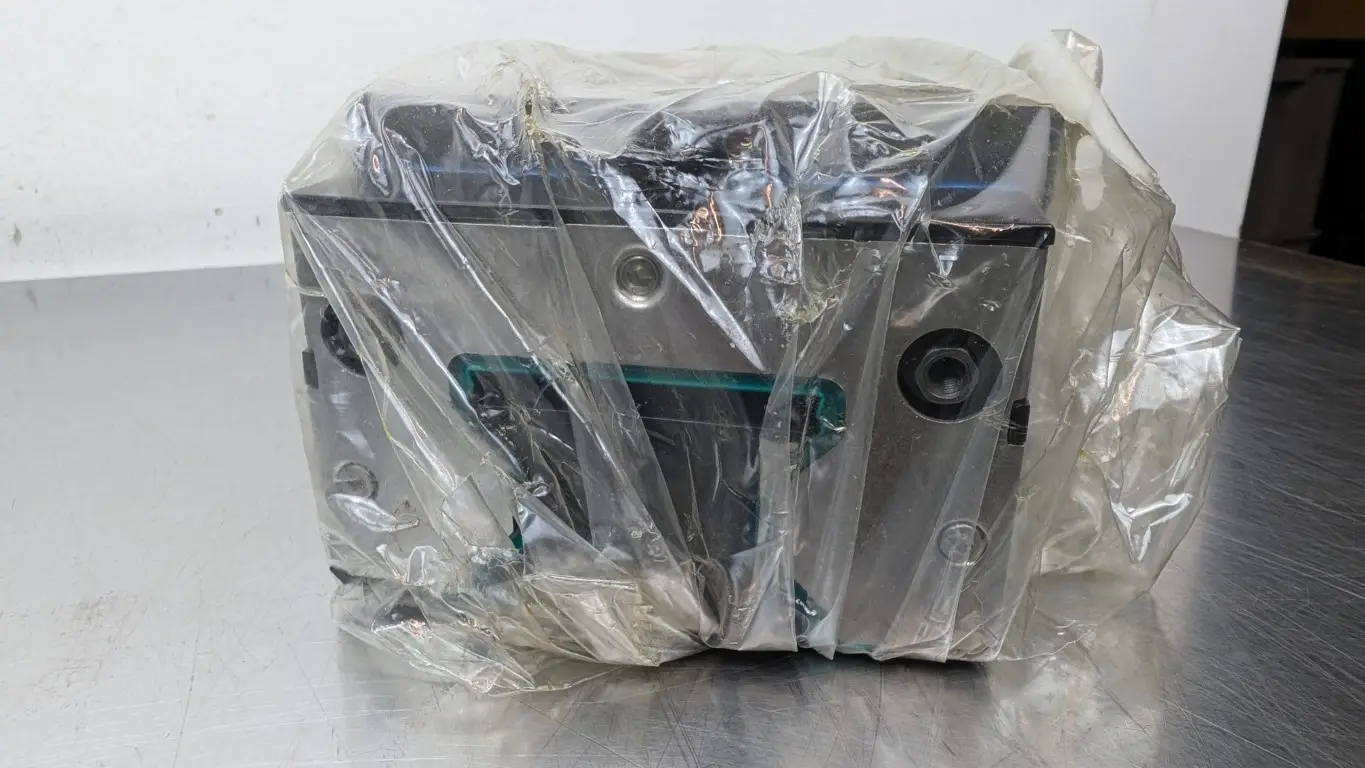

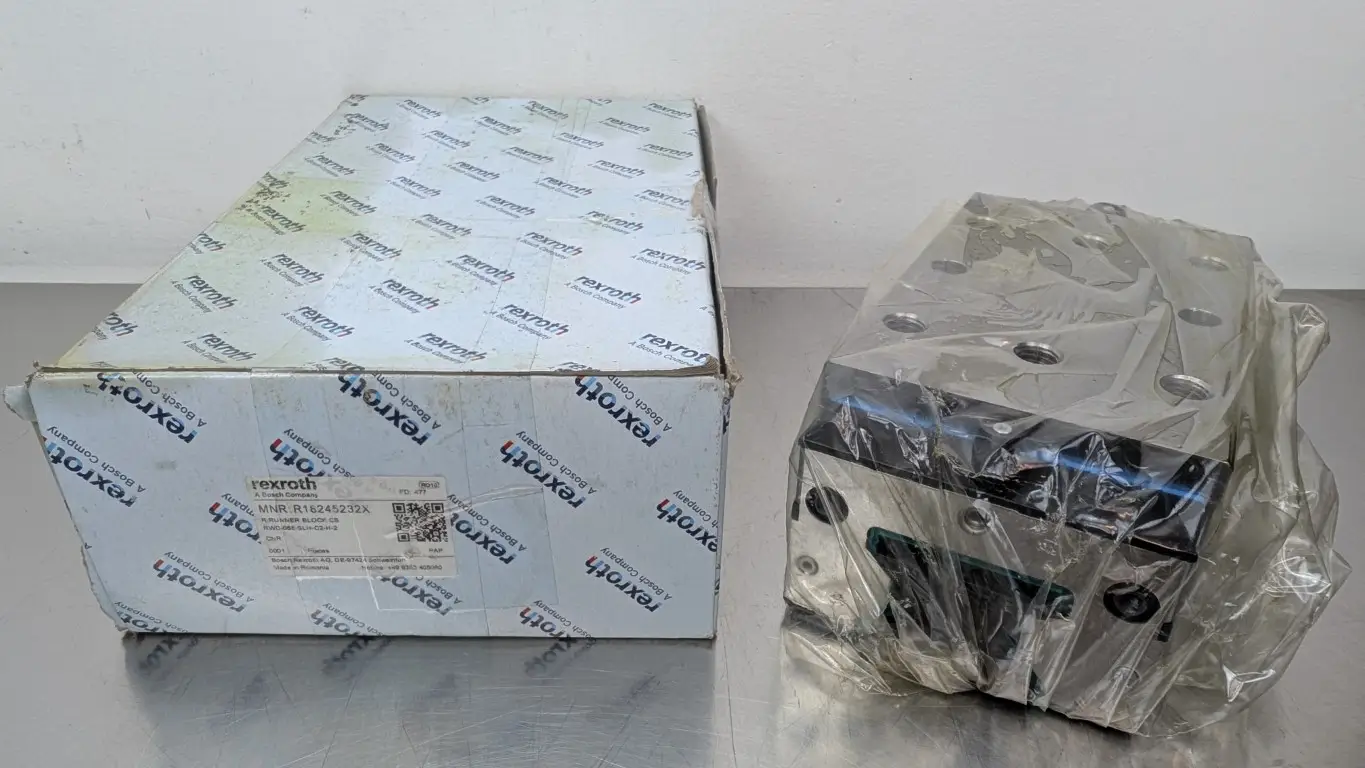

Rexroth R18245232X Roller Runner Block Bearing RWD-055-SLH-C2-H-2

Rexroth R18245232X Roller Runner Block Bearing RWD-055-SLH-C2-H-2

Product Details

NEO SKU: 15451-2
Condition: New
Brand: Rexroth

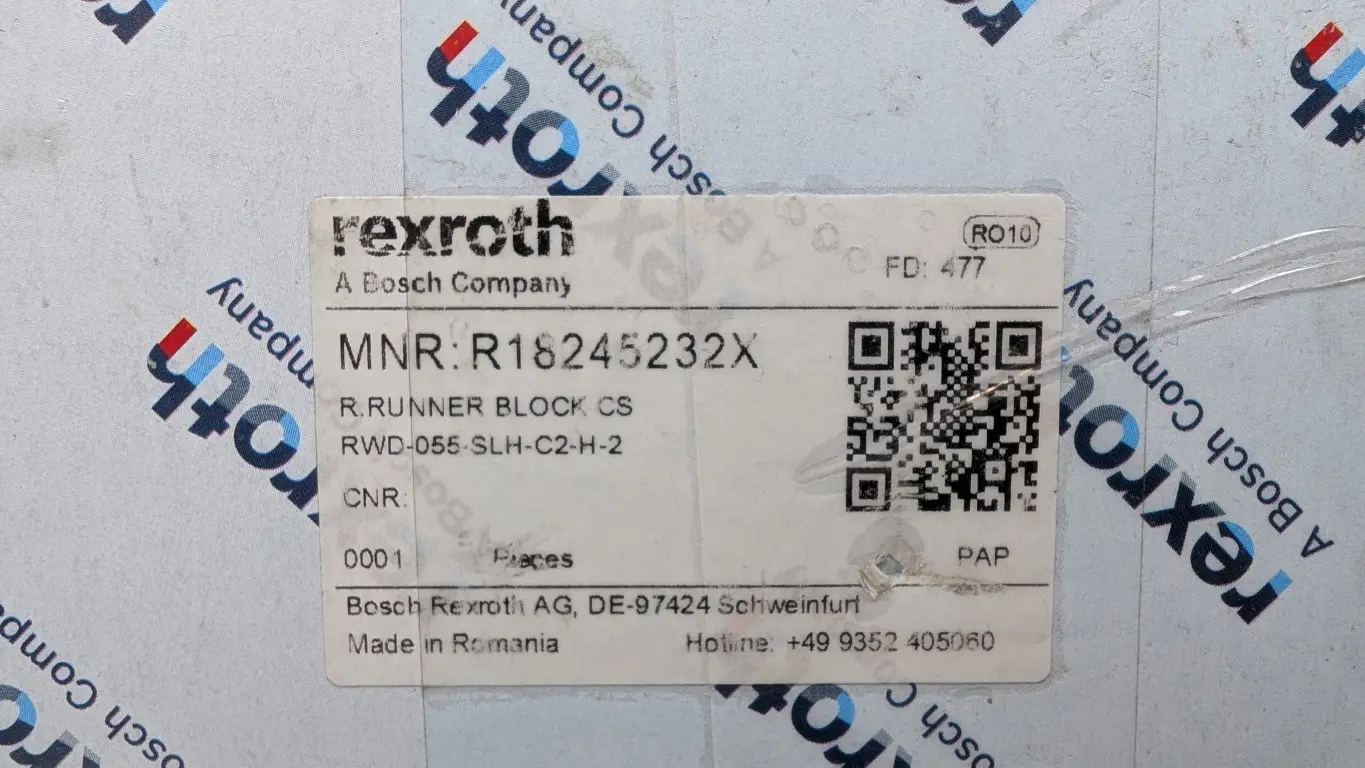

Model: R18245232X
MPN: RWD-055-SLH-C2-H-2
Description: Roller Runner Block Bearing

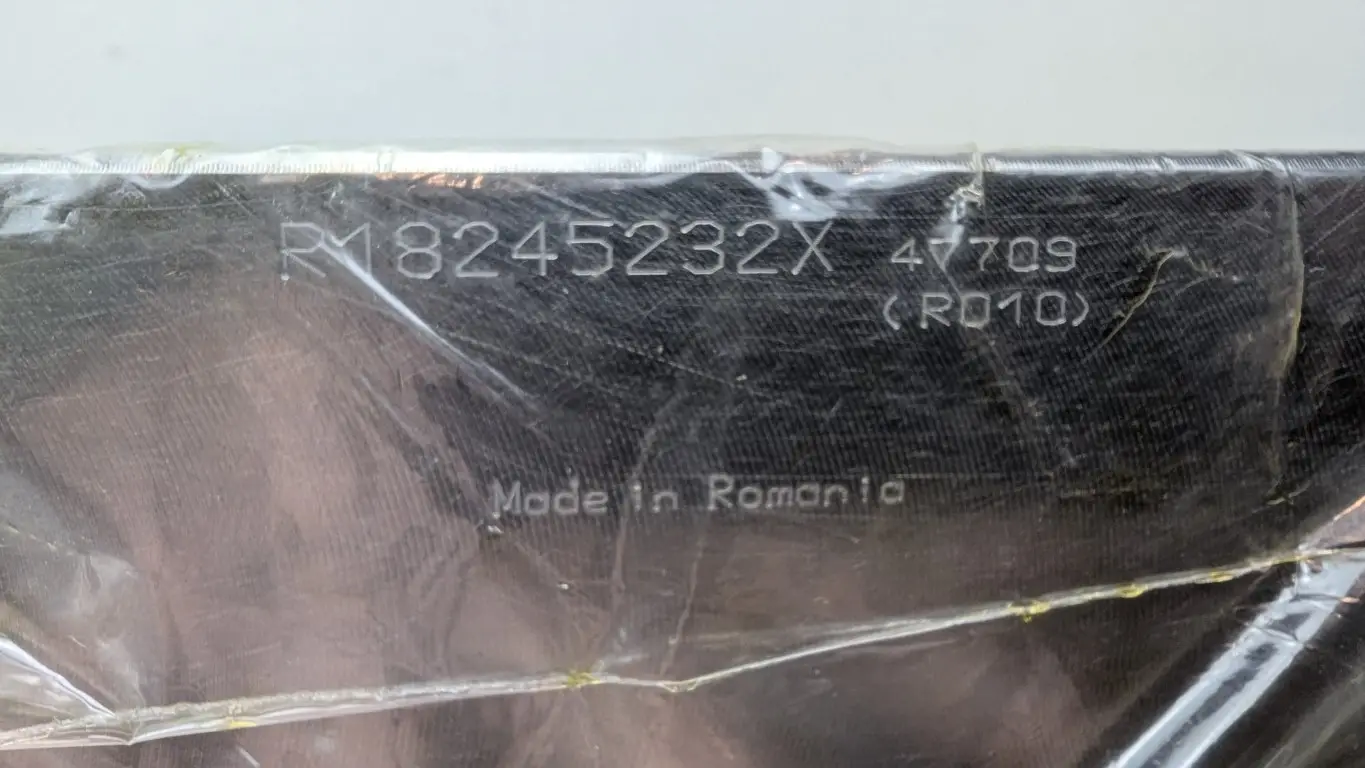

Origin: Romania
Manufacturer Notes: Runner block or guide rail: Runner block
Linear guide type: Roller rail system
Nominal size: 55
Format: SLH – slimline, long, high
Ball chain: Without roller chain
Material (profiled rail systems): Carbon steel
Preload force: 12900
Preload class: C2 – Average preload
Accuracy class: H – Highly accurate
Self-aligning for compensation of misalignments: Without self-alignment
Width of runner block: 100
Length of runner block: 209.65
Height of runner block: 68
Height of runner block with guide rail: 80
Lubrication: With preservation and without initial lubrication
Dynamic load capacity C: 174000
Footnote dynamic load capacity C: Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23.
Dynamic torsional moment load capacity Mt footnote: Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23.
Static longitudinal moment load capacity ML0: 9520
Static torsional moment load capacity Mt0: 10990
Max. acceleration amax: 150
Note: Max. acceleration amax: Requirement: There must be preload, even during operation under load.
Maximum permissible linear speed vmax: 4
Dynamic torsional moment load capacity Mt: 5100
Dynamic longitudinal moment load capacity ML: 4420
Dynamic longitudinal moment load capacity ML footnote: Determination of the dynamic load capacities and load moments is based on a 100,000 m travel as per DIN ISO 14728-1. Often only 50,000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.23.
Seal: DS – double-lip seal
Static load rating C0: 374900
Permissible ambient temperature: -10 °C … +80 °C
Footnote permissible ambient temperature (min … max): 100 °C admissible for short time. For operation at lower minus temperatures, please consult us.
Friction coefficient μ: 0,0004 … 0,001
Footnote friction coefficient μ: Without friction of seal
Footnote friction force FR: Guideline value for frictional drags of the complete, sealed and lubricated roller runner block.
Pitch T guide rail: 60
Friction force: 45
Friction coefficient μ min.: 0.0004
Friction coefficient μ max.: 0.001
Productgroup ID: 17
Permissible ambient temperature (max): 80
Permissible ambient temperature (min): -10
Version: Roller rail systems
Weight: 6.8
Size A (profiled rail systems): 100
Size A1 (profiled rail systems): 50
Size A2 (profiled rail systems): 53
Size A3 (profiled rail systems): 23.5
Size B (profiled rail systems): 209.65
Size B1: 162.1
Size E1 (profiled rail systems): 75
Size E2 (profiled rail systems): 95
Size E8 (profiled rail systems): 74.2
Size E9 (profiled rail systems): 28.85
Size H (profiled rail system): 80
Size H1 (profiled rail systems): 68
Size H2 with cover strip (profiled rail systems): 47.85
Size H2 with cover strip (profiled rail systems): 47.55
Size K1 (profiled rail systems): 41.25
Size K2 (profiled rail systems): 44.4
Size N3 (profiled rail systems): 19
Size N5 (profiled rail systems): 19
Size N6 (profiled rail systems): 28.7
Size N6 tolerance (profiled rail systems): ±0.5
Size N6 with tolerance (profiled rail systems): 28,7 mm ±0,5
Size S2 (profiled rail systems): M12
Size diameter S5 (profiled rail systems): 16
Size S9 thread diameter (profiled rail systems): M5
Footnote of size T (profiled rail systems): T = Rail separation of the Roller Guide Rail
Size T1 min (profiled rail systems): 20
Size V1: 12

*Actual product may vary from images.*
