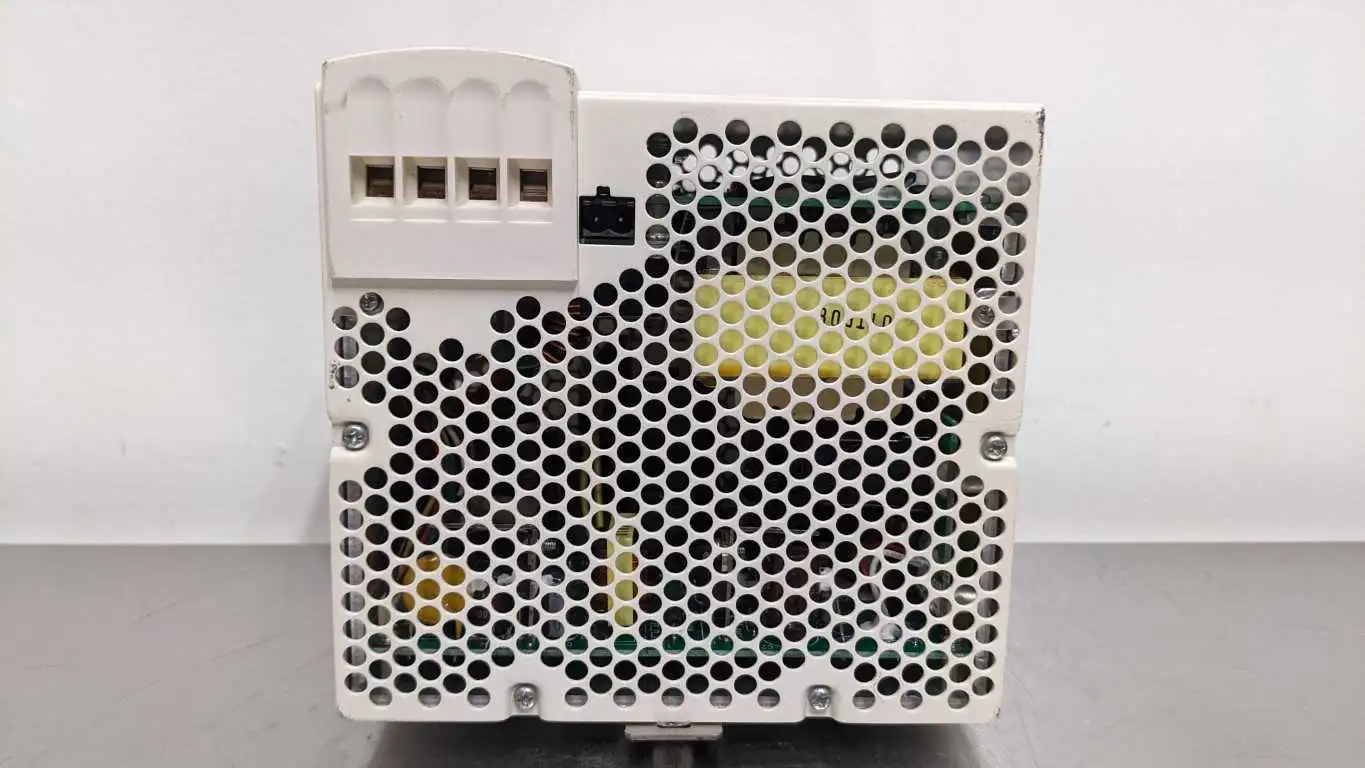

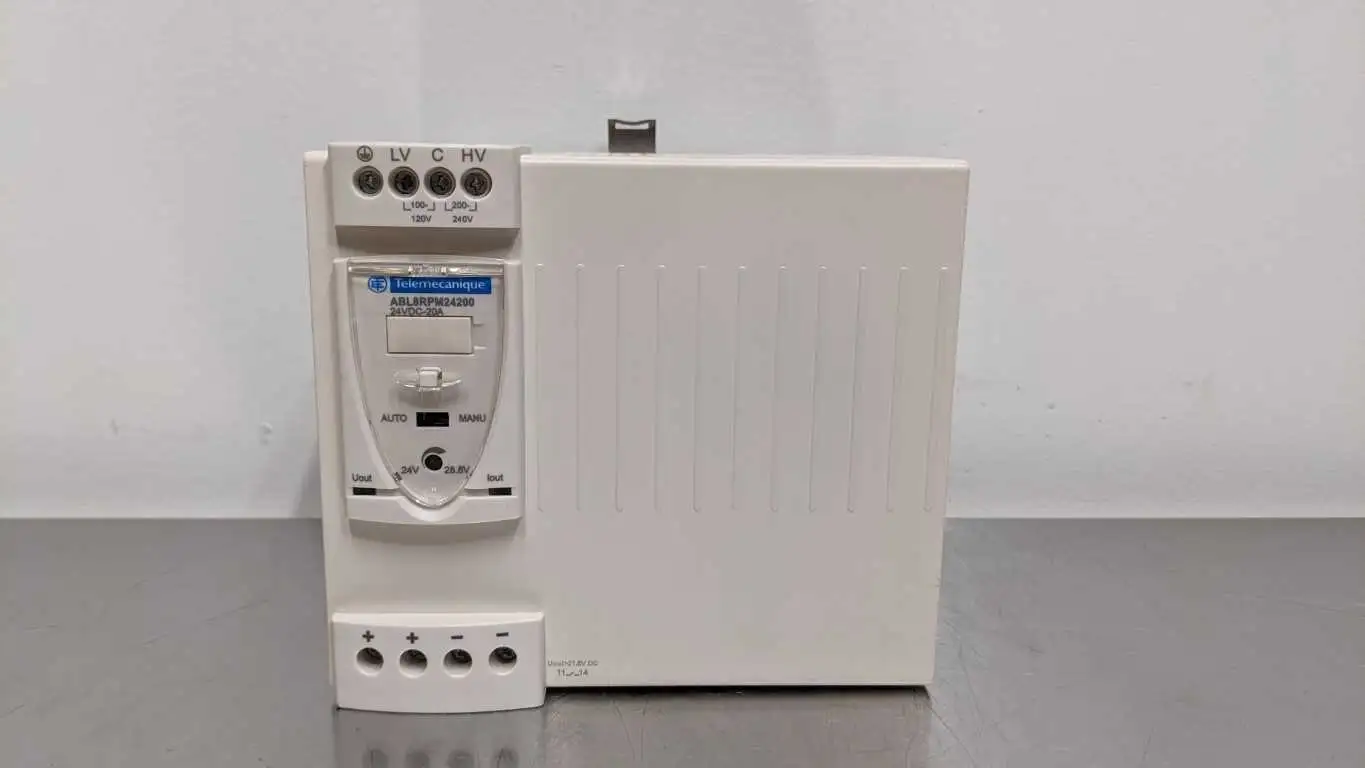

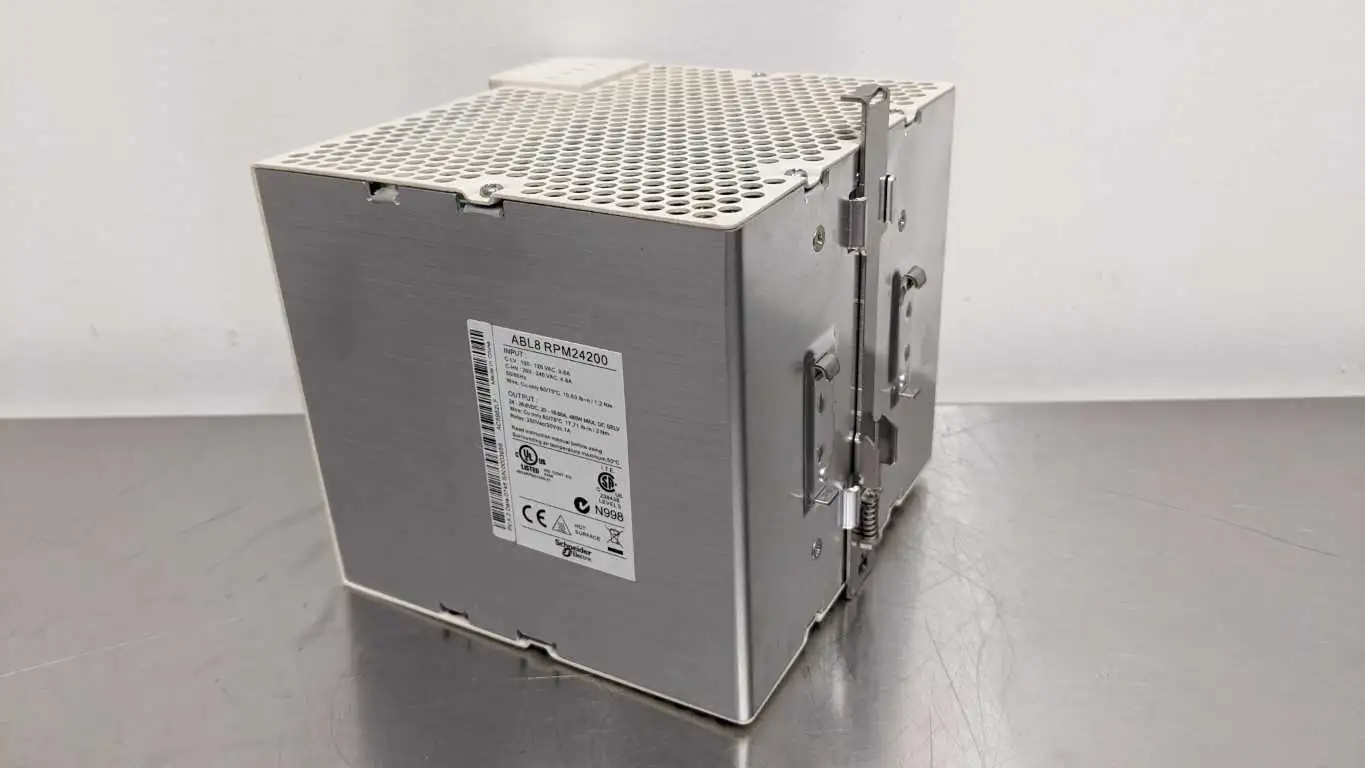

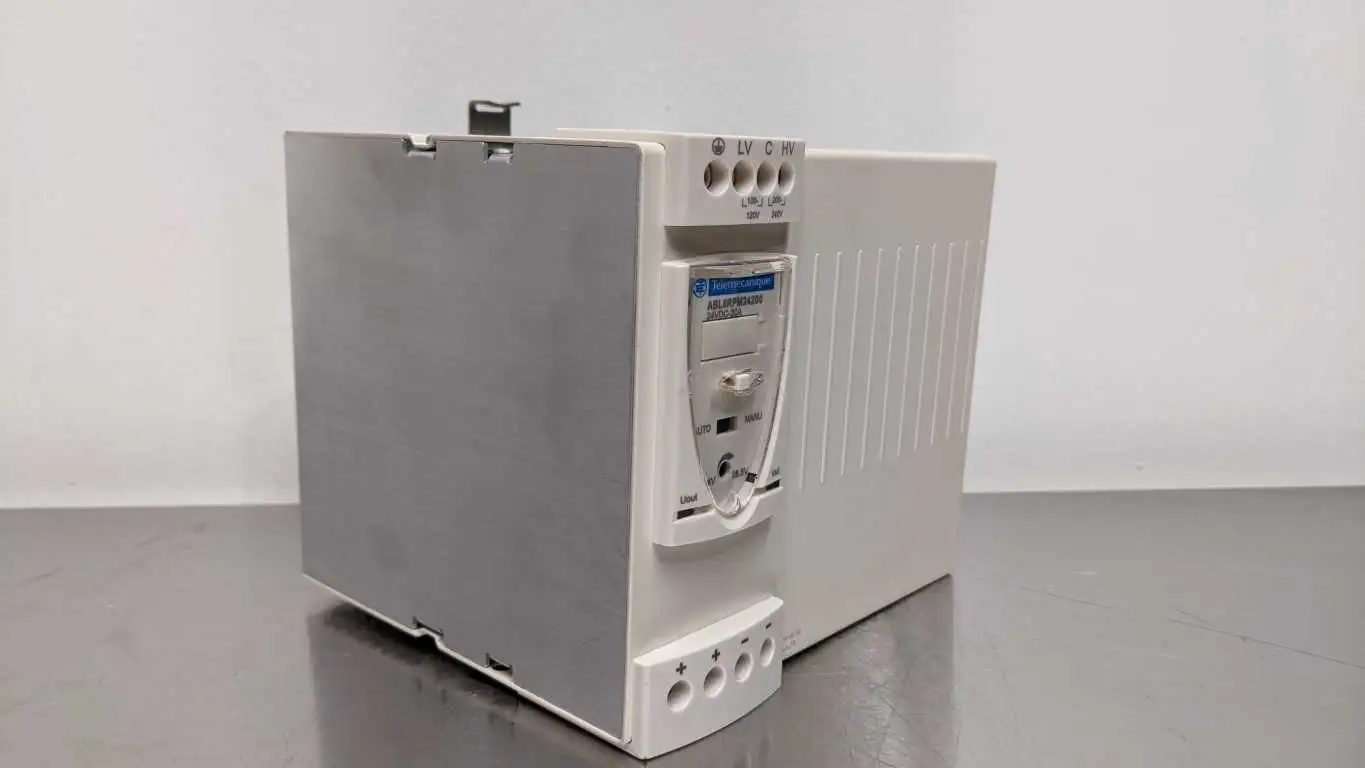

Schneider Electric ABL8 RPM24200 Regulated Power Supply

Product Details for Schneider Electric ABL8 RPM24200 Regulated Power Supply

SKU: 11713-9
Condition: New Surplus
Condition Notes: No box, no signs of being installed.
Brand: Schneider Electric
Model: ABL8 RPM24200

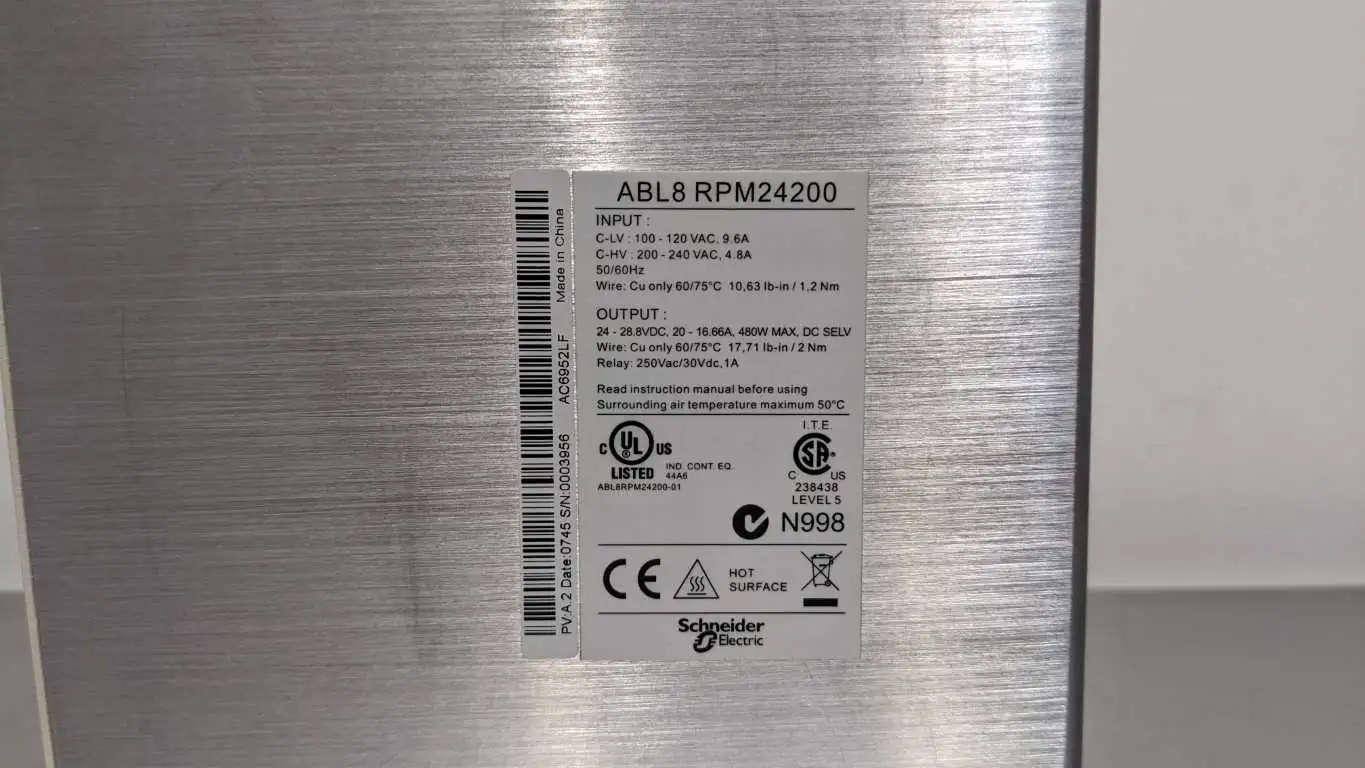

Additional Description: 100-120, 200-240 VAC 9.6/4.8A to 24-28 VDC 20-16.66A
Description: Regulated Power Supply

Electrical
Hz: 50/60
Input Volts: 100-120, 200-240 VAC
Input Amps: 9.6/4.8A
Output Volts: 24-28 VDC
Output Amps: 20-16.66A
Output Watts: 480W

Origin: China
EAN: 3389119405638

Notes: From MFG:

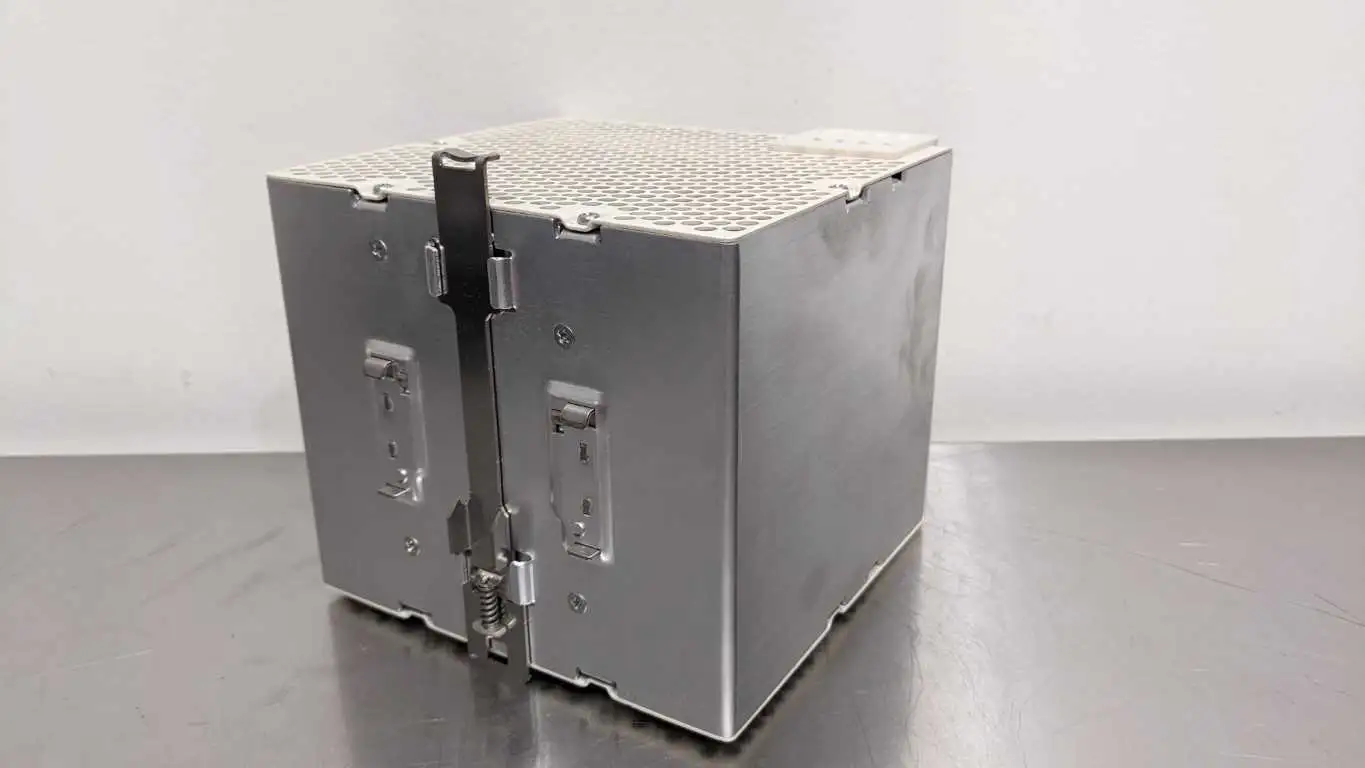

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 54mm-wide. It weighs 1,600kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD16 and GB2CD12 thermal magnetic circuit breakers The GB2CB07, GB2CD07, GB2DB07, GB2CS07, GB2CB06, GB2CD06, GB2DB06 and GB2CS06 thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Range of Product
Modicon Power Supply
Product or Component Type
Power supply
Power supply type
Regulated switch mode
Nominal input voltage
100…120 V AC single phase N-L1
200…240 V AC phase to phase L1-L2
Kw Rating
480 W
Output voltage
24 V DC
Power supply output current
20 A
Permissible temporary current boost
1.5 x In for 4 s)
Anti-harmonic filter
Low frequency harmonic currents
Complementary
Efficiency at full load
85…132 V AC
170…264 V AC
Inrush current
30 A
Power factor
0.68 at 240 V AC
0.69 at 120 V AC
Efficiency
88 %
Output voltage adjustment
24…28.8 V adjustable
Power dissipation in W
57.6 W
Provided equipment
Power factor correction filter IEC 61000-3-2
Output protection type
Against overload manual or automatic reset
Against overvoltage 30…32 V, manual reset
Against short-circuits manual or automatic reset

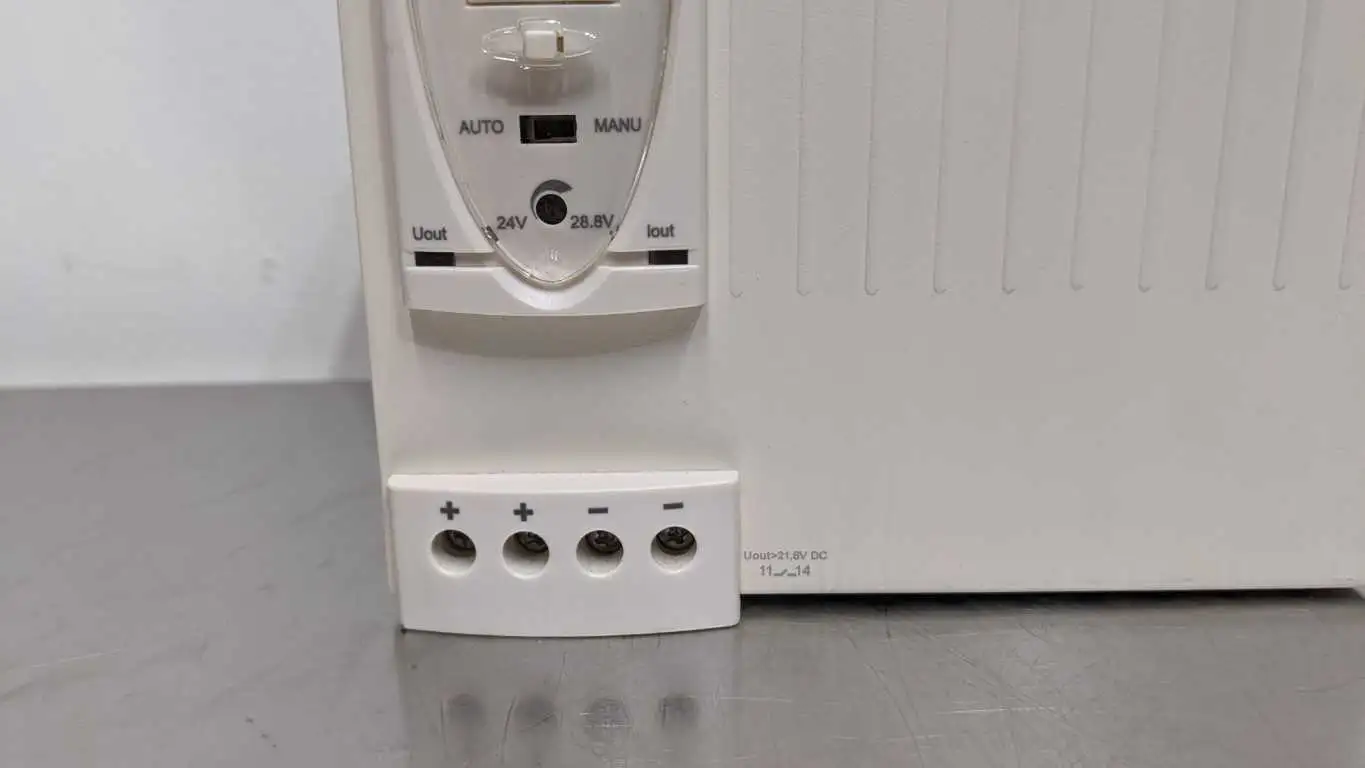

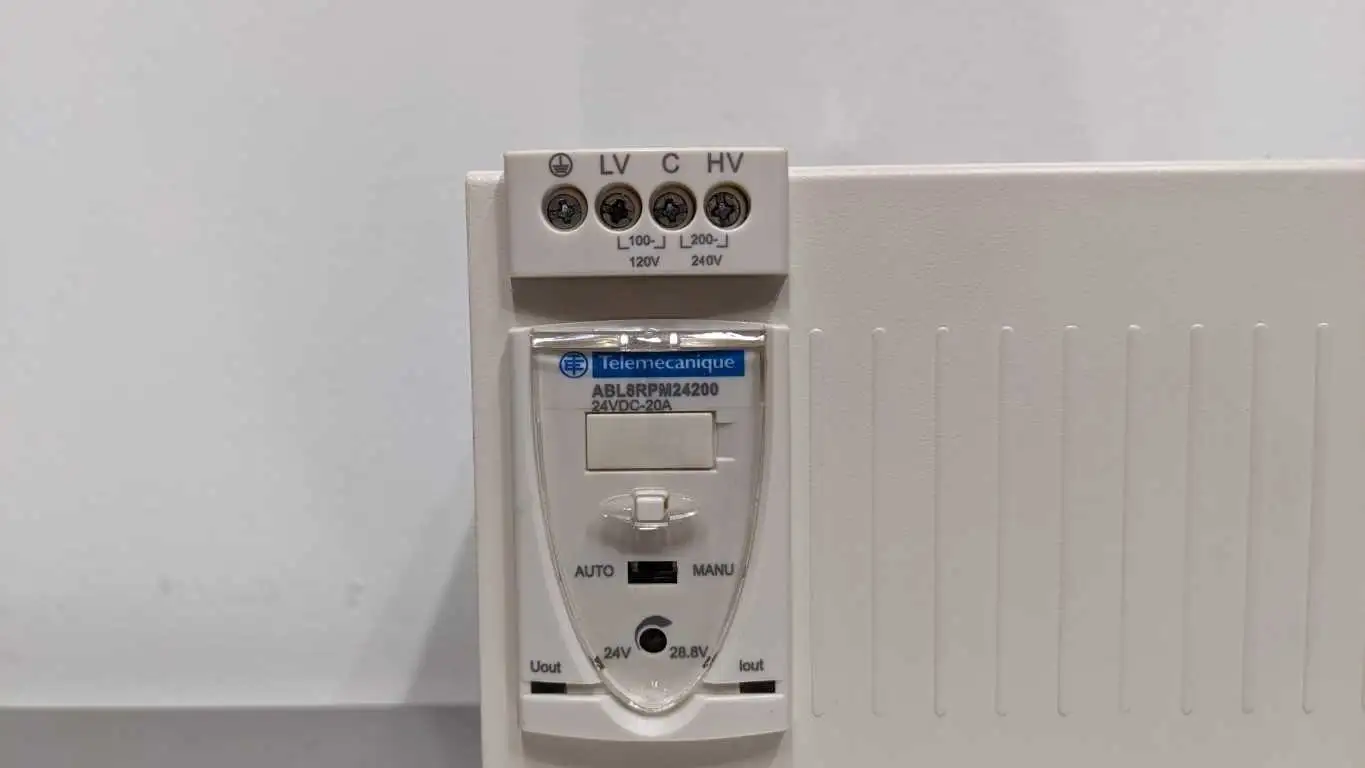

Against undervoltage tripping if U < 21.6 V Thermal automatic reset Connections - terminals Removable screw terminal block 2 x 2.5 mm², diagnostic relay Screw type terminals 3 x 0.5...3 x 4 mm², AWG 22...AWG 12) input connection Screw type terminals 1 x 0.5...1 x 4 mm², AWG 22...AWG 12) input ground connection Screw type terminals 4 x 0.5...4 x 4 mm², AWG 22...AWG 12) output connection Status LED 1 LED (green and red) output voltage 1 LED (green, red and orange) output current Depth 5.71 in (145 mm) Height 4.92 in (125 mm) Width 5.75 in (146 mm) Net Weight 3.53 lb(US) (1.6 kg) Output coupling Series Parallel Marking CE Mounting support 35 x 7.5 mm symmetrical DIN rail 35 x 15 mm symmetrical DIN rail Operating position Vertical Supply SELV EN/IEC 60950-1 SELV EN/IEC 60204-1 SELV IEC 60364-4-41 Dielectric strength 2500 V with between input and ground 3000 V with between input and output 500 V with between output and ground Environment Standards CSA C22.2 No 60950-1 UL 508 EN/IEC 62368-1 Product certifications CCSAus EAC KC RCM UL Environmental characteristic EMC EN 61000-6-1 EMC EN 61000-6-3 EMC EN 55024 EMC EN/IEC 61000-6-4 EMC EN/IEC 61204-3 Safety EN/IEC 60950-1 Safety EN/IEC 61204-3 Operating altitude 6561.68 ft (2000 m) IP degree of protection IP20 conforming to EN/IEC 60529 IP10 Ambient air temperature for operation 122…140 °F (50…60 °C) with derating factor mounting position A < 6561.68 ft (2000 m) -13…122 °F (-25…50 °C) without derating mounting position A < 6561.68 ft (2000 m) Ordering and shipping details Category 22525-ABL8 AND ABL7 POWER SUPPLIE Discount Schedule CP12 GTIN 3389119405638 Returnability Yes Country of origin PH Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 6.33 in (16.084 cm) Package 1 Width 6.97 in (17.706 cm) Package 1 Length 7.00 in (17.786 cm) Package 1 Weight 6.22 lb(US) (2.82 kg) Unit Type of Package 2 S04 Number of Units in Package 2 6 Package 2 Height 11.81 in (30 cm) Package 2 Width 15.75 in (40 cm) Package 2 Length 23.62 in (60 cm) Package 2 Weight 38.80 lb(US) (17.6 kg) Unit Type of Package 3 P06 Number of Units in Package 3 36 Package 3 Height 28.94 in (73.5 cm) Package 3 Width 23.62 in (60.0 cm) Package 3 Length 31.50 in (80.0 cm) Package 3 Weight 223.81 lb(US) (101.52 kg) NEO Surplus is not an authorized distributor, representative, reseller, or affiliated with Schneider Electric or any manufacturer, brand, or product. Items being sold are not covered under any manufacturer warranty. All trademarks, brand names and brands appearing herein are the property of their respective owners. We do our best to get all the information in this listing correct. If you see an error or have any questions, please contact us.
