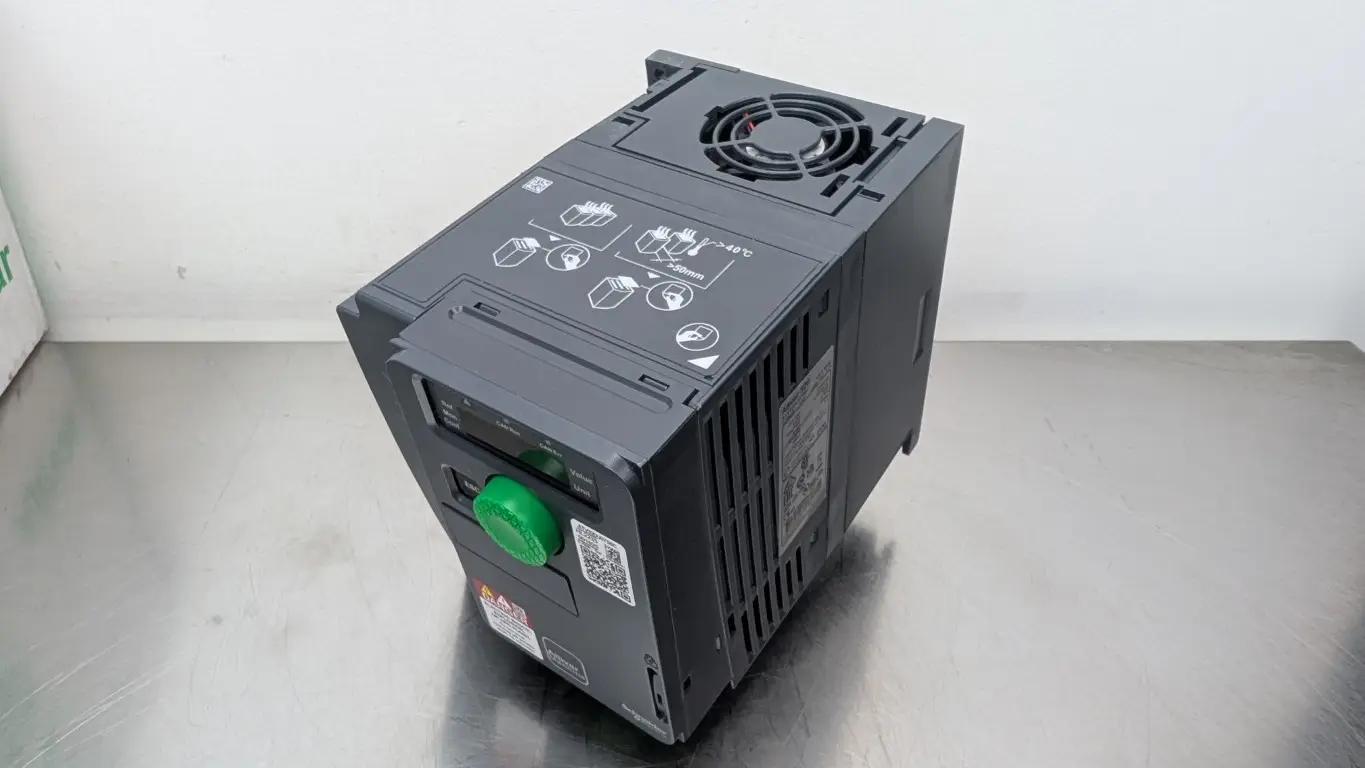

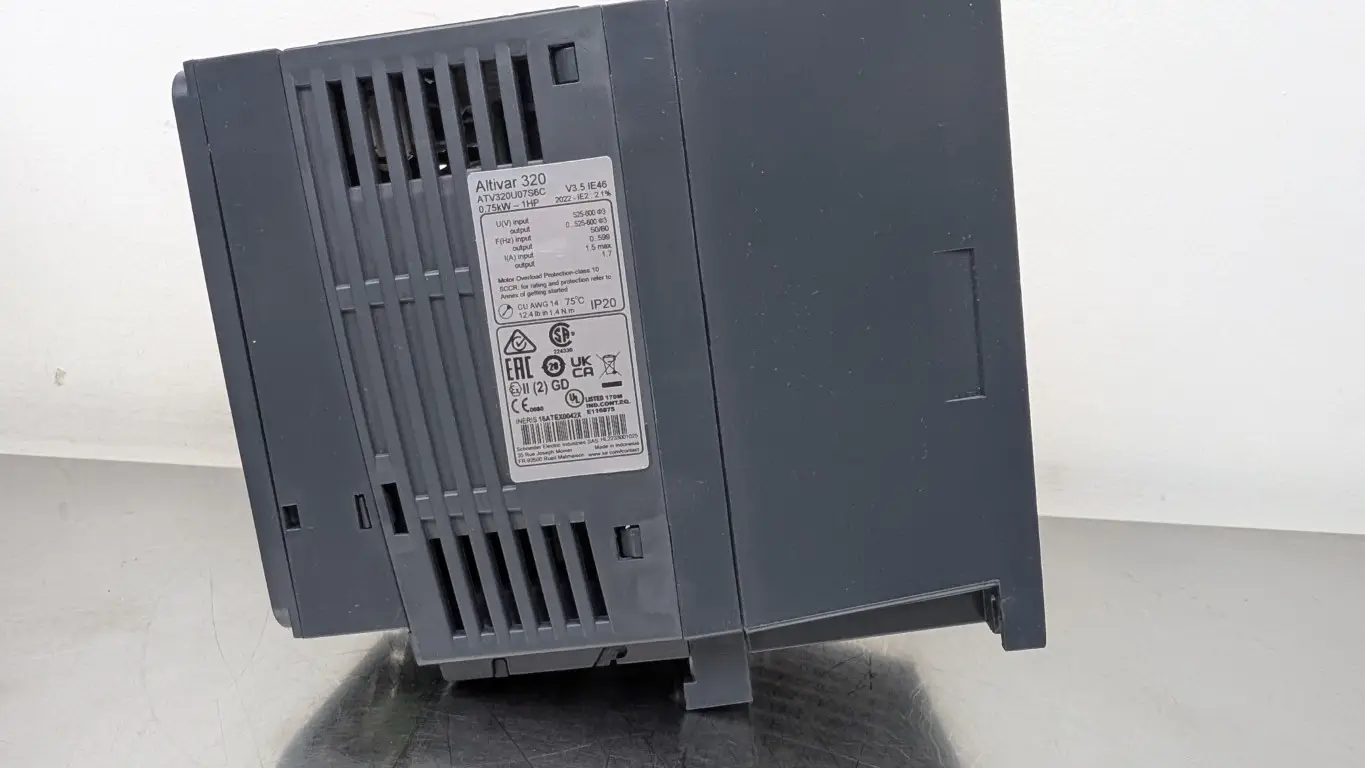

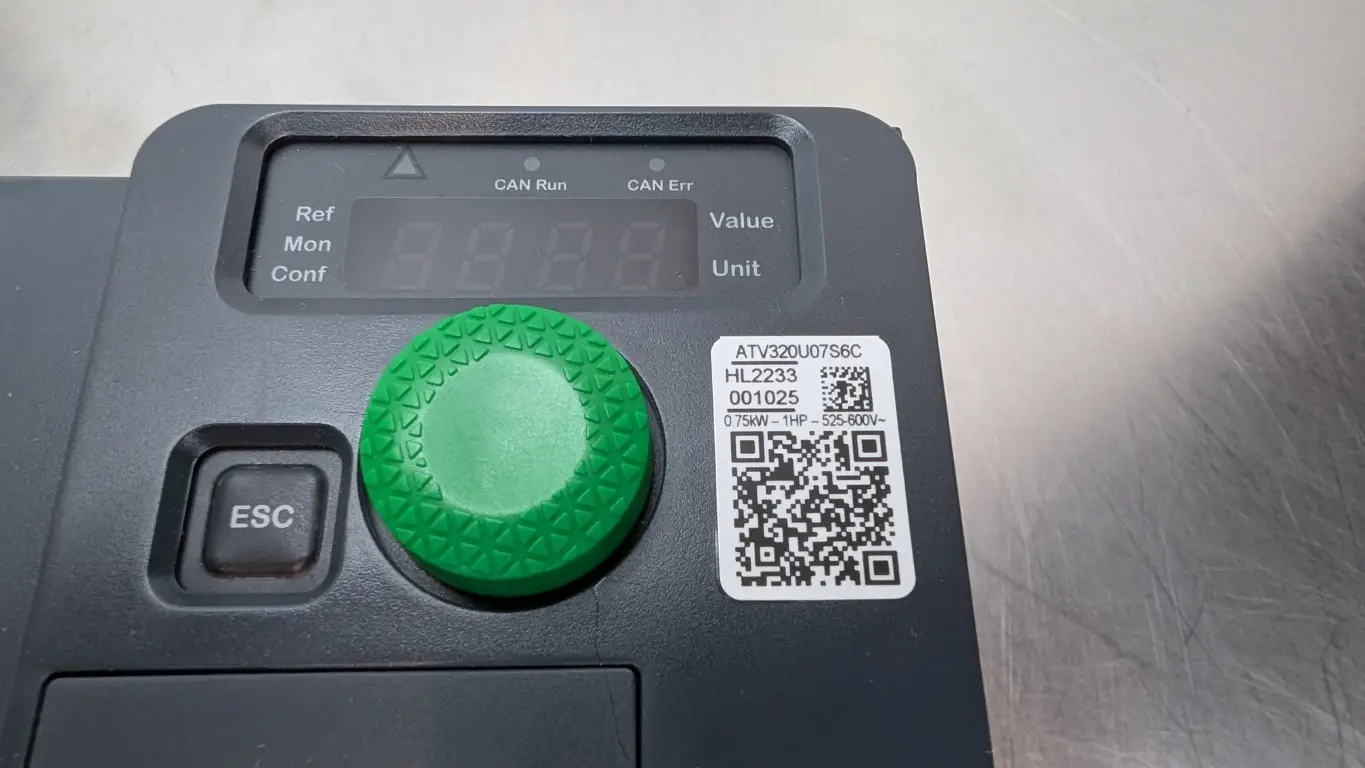

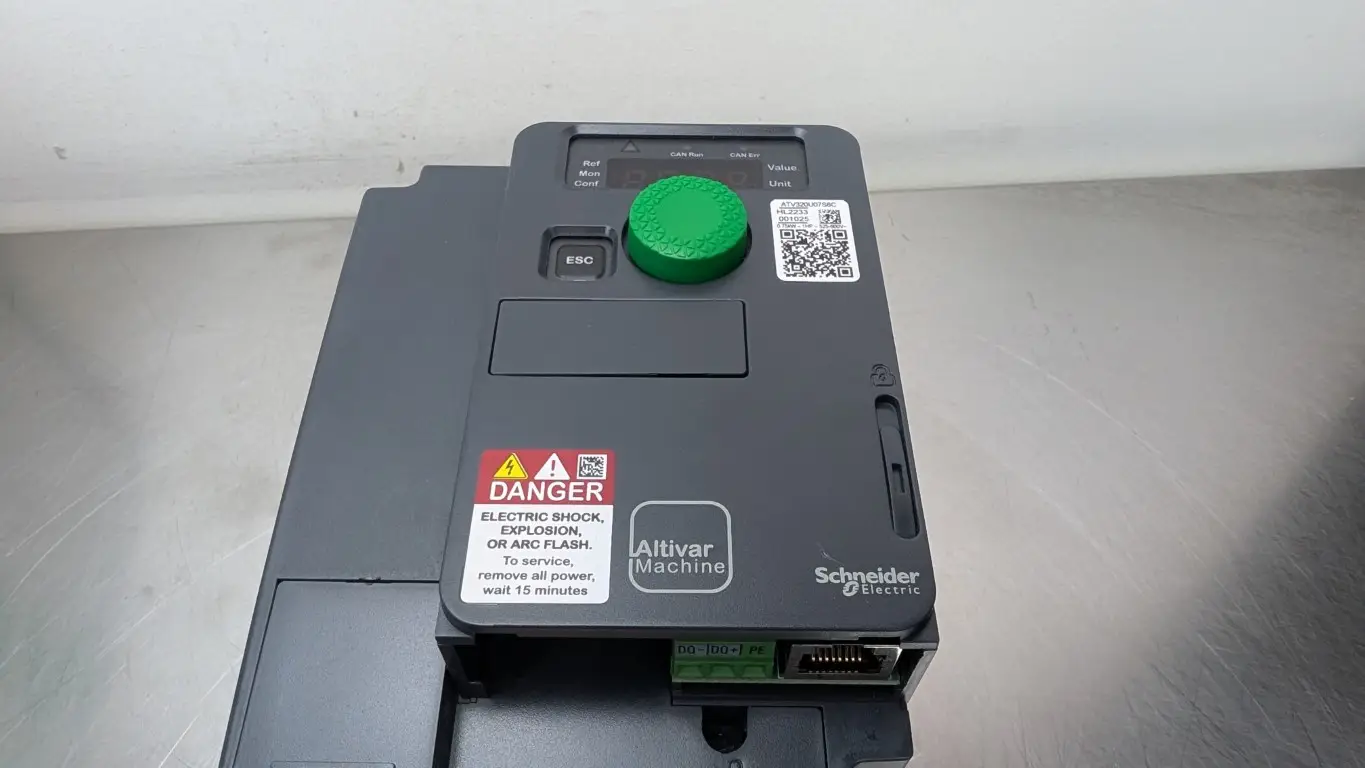

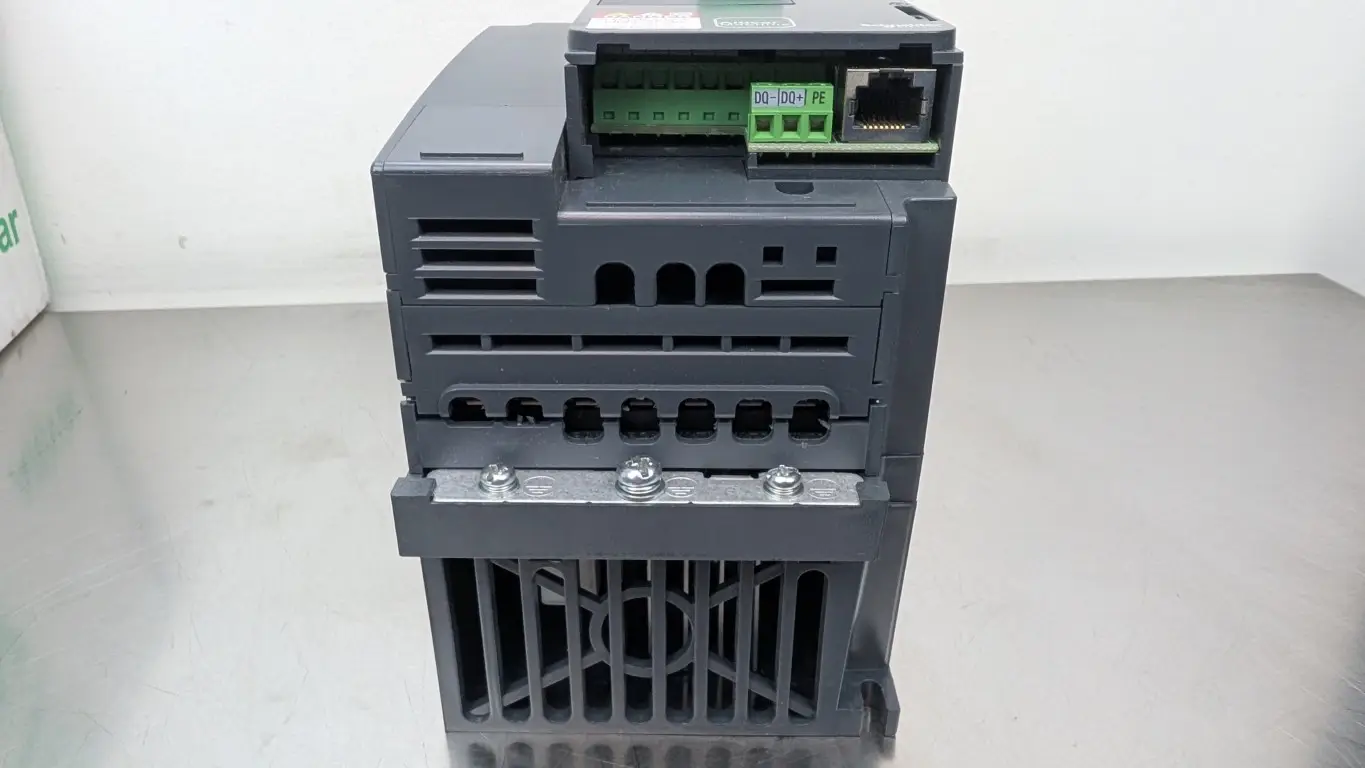

Schneider Electric ATV320U07S6C AC Speed Drive Altivar 320 525-600VAC 1.5A 0.75kW to 0-599VAC 1.7A 1 HP

Schneider Electric ATV320U07S6C AC Speed Drive Altivar 320 525-600VAC 1.5A 0.75kW to 0-599VAC 1.7A 1 HP

Product Details

NEO SKU: 15540-3
Condition: New No Box

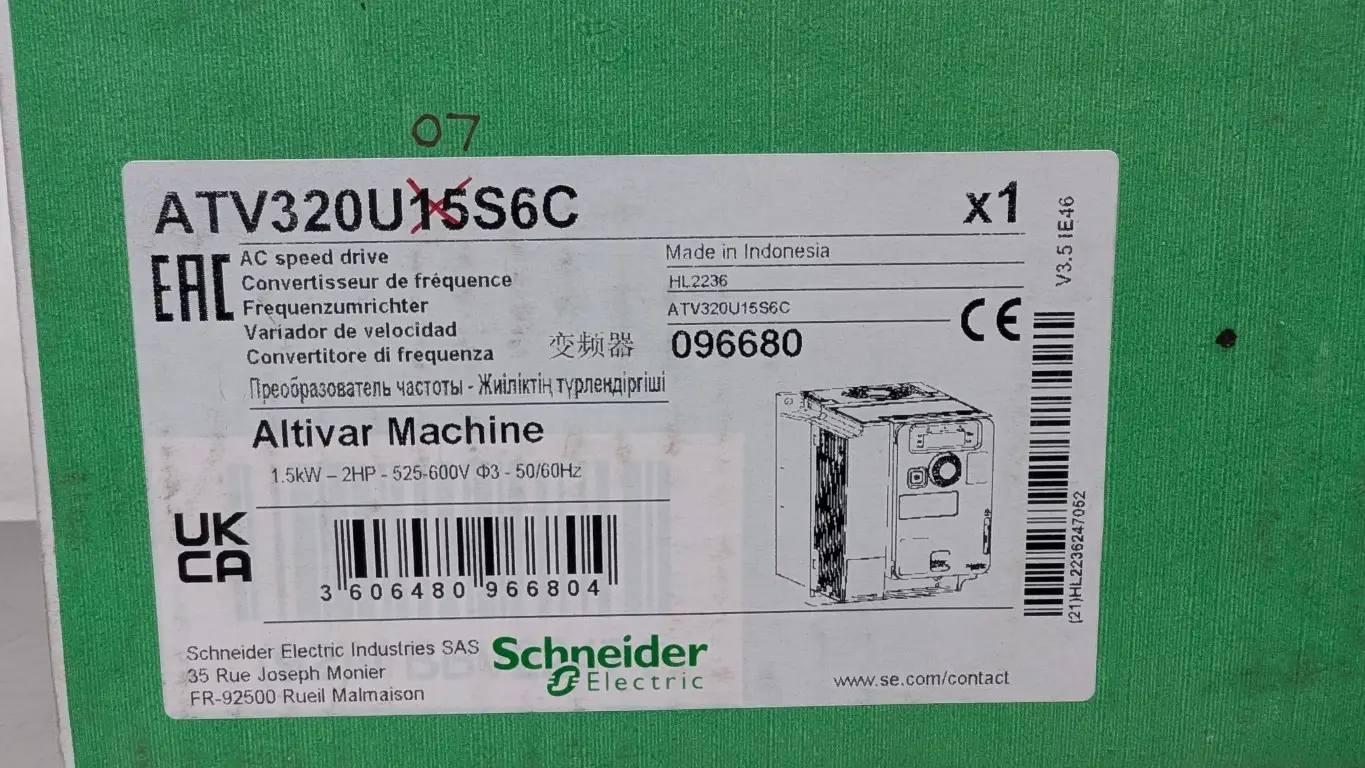

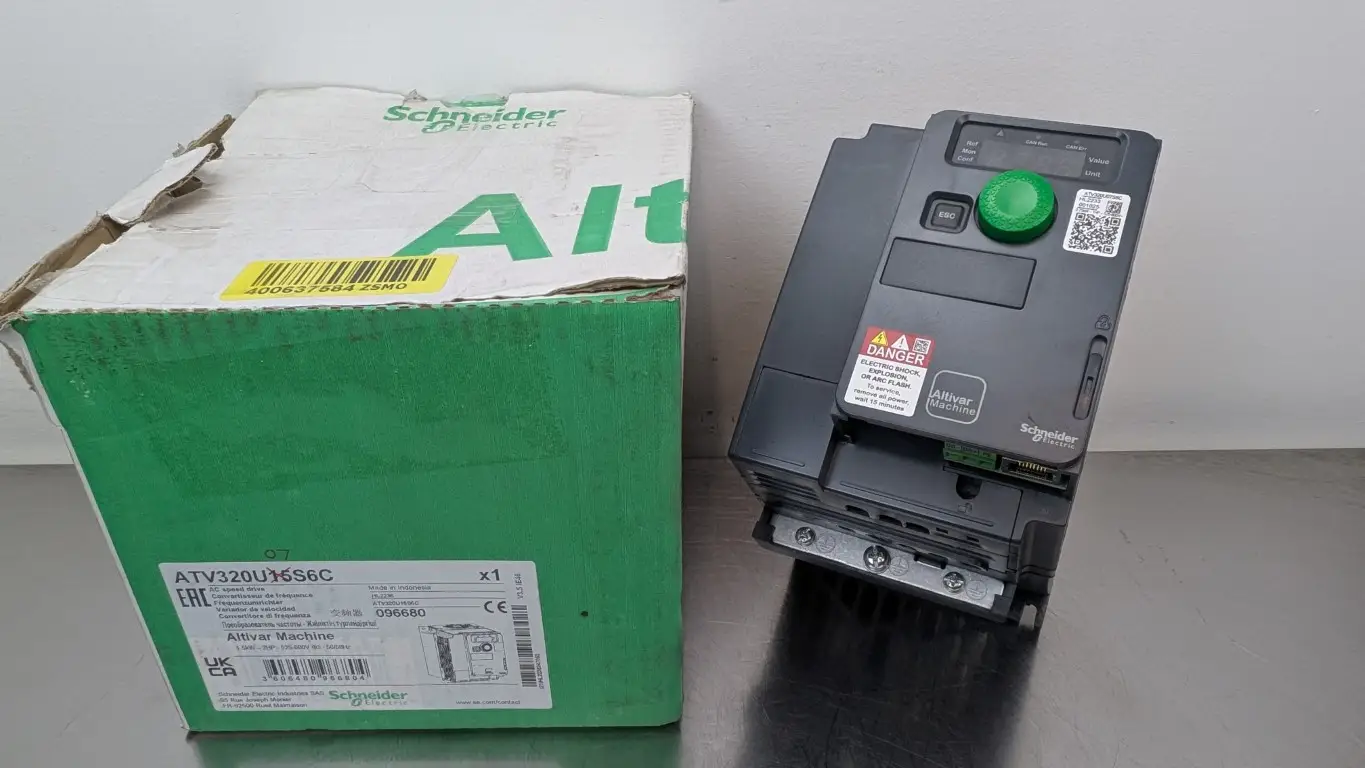

Condition Notes: Non Matching box
Brand: Schneider Electric
Model: ATV320U07S6C
MPN: Altivar 320
Description: AC Speed Drive
Phase: 3
Hz: 50/60
Input Volts: 525-600VAC
Input Amps: 1.5A
Input Watts: 0.75kW
Output Volts: 0-599VAC
Output Amps: 1.7A
HP: 1
Origin: Indonesia
EAN: 3606480966798
Manufacturer Notes: Range of Product: Altivar Machine ATV320
Product or Component Type: Variable speed drive
Product Specific Application: Complex machines
Variant: Standard version
Format of the drive: Compact
Mounting Mode: Wall mount
“Communication Port Protocol: Modbus serial
CANopen”
“Option card: communication module, CANopen
communication module, EtherCAT
communication module, Profibus DP V1
communication module, PROFINET
communication module, Ethernet Powerlink
communication module, EtherNet/IP
communication module, DeviceNet”
[Us] rated supply voltage: 525…600 V – 15…10 %
nominal output current: 1.7 A
Motor power kW: 0.75 kW heavy duty
Maximum Horse Power Rating: 1 hp
EMC filter: Without EMC filter
IP degree of protection: IP20
Discrete input number: 7
“Discrete input type: STO safe torque off, 24 V DC1.5 kOhm
DI1…DI6 logic inputs, 24 V DC 30 V)
DI5 programmable as pulse input 0…30 kHz, 24 V DC 30 V)”
“Discrete input logic: Positive logic (source)
Negative logic (sink)”
Discrete output number: 3
“Discrete output type: Open collector DQ+ 0…1 kHz 30 V DC 100 mA
Open collector DQ- 0…1 kHz 30 V DC 100 mA”
Analogue input number: 3
“Analogue input type: AI1 voltage 0…10 V DC 30 kOhm 10 bits
AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits
AI3 current 0…20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits”
Analogue output number: 1
“Analogue output type: Software-configurable current AQ1 0…20 mA 800 Ohm 10 bits
Software-configurable voltage AQ1 0…10 V DC 470 Ohm 10 bits”
“Relay output type: Configurable relay logic R1A 1 NO 100000 cycles
Configurable relay logic R1B 1 NC 100000 cycles
Configurable relay logic R1C
Configurable relay logic R2A 1 NO 100000 cycles
Configurable relay logic R2C”
“Maximum switching current: Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC
Relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC
Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC
Relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC
Relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC
Relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC”
Minimum switching current: Relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Method of access: Slave CANopen
4 quadrant operation possible: TRUE
“Asynchronous motor control profile: Voltage/frequency ratio, 5 points
Flux vector control without sensor, standard
Voltage/frequency ratio – Energy Saving, quadratic U/f
Flux vector control without sensor – Energy Saving
Voltage/frequency ratio, 2 points”
Synchronous motor control profile: Vector control without sensor
Maximum output frequency: 0.599 kHz
“Acceleration and deceleration ramps: Linear
U
S
CUS
Ramp switching
Acceleration/deceleration ramp adaptation
Acceleration/deceleration automatic stop with DC injection”
“Motor slip compensation: Automatic whatever the load
Adjustable 0…300 %
Not available in voltage/frequency ratio (2 or 5 points)”
“Switching frequency: 2…16 kHz adjustable
4…16 kHz with derating factor”
Nominal switching frequency: 4 kHz
Braking to standstill: By DC injection
Brake chopper integrated: TRUE
“Line current: 1.5 A 525 V heavy duty)
1.4 A 600 V heavy duty)”
Maximum Input Current per Phase: 1.5 A
Maximum output voltage: 600 V
Apparent power: 1.5 kVA 600 V heavy duty)
Network Frequency: 50-60 Hz
Relative symmetric network frequency tolerance: 5 %
Prospective line Isc: 5 kA
Base load current at high overload: 27.7 A
Power dissipation in W: Fan 34.0 W 525 V 4 kHz
With safety function Safely Limited Speed (SLS): TRUE
With safety function Safe brake management (SBC/SBT): FALSE
With safety function Safe Operating Stop (SOS): FALSE
With safety function Safe Position (SP): FALSE
With safety function Safe programmable logic: FALSE
With safety function Safe Speed Monitor (SSM): FALSE
With safety function Safe Stop 1 (SS1): TRUE
With sft fct Safe Stop 2 (SS2): FALSE
With safety function Safe torque off (STO): TRUE
With safety function Safely Limited Position (SLP): FALSE
With safety function Safe Direction (SDI): FALSE
“Protection type: Input phase breaks drive
Overcurrent between output phases and earth drive
Overheating protection drive
Short-circuit between motor phases drive
Thermal protection drive”
Width: 4.1 in (105.0 mm)
Height: 5.6 in (142.0 mm)
Depth: 6.2 in (158.0 mm)
Net Weight: 2.80 lb(US) (1.27 kg)
Transient overtorque: 170…200 % of nominal motor torque
Operating position: Vertical +/- 10 degree
“Product Certifications: CE
ATEX
NOM
GOST
EAC
RCM
KC”
“Marking: CE
ATEX
UL
CSA
EAC
RCM”
Standards: IEC 61800-5-1
“Electromagnetic compatibility: Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
1.2/50 µs – 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11”
“Environmental class (during operation): Class 3C3 according to IEC 60721-3-3
Class 3S2 according to IEC 60721-3-3”
Maximum acceleration under shock impact (during operation): 150 m/s² at 11 ms
Maximum acceleration under vibrational stress (during operation): 10 m/s² at 13…200 Hz
Maximum deflection under vibratory load (during operation): 1.5 mm at 2…13 Hz
Permitted relative humidity (during operation): Class 3K5 according to EN 60721-3
Volume of cooling air: 4755.2 Gal/hr(US) (18.0 m3/h)
Overvoltage category: III
Regulation loop: Adjustable PID regulator
#ERROR!
Pollution degree: 2
Ambient air transport temperature: -13…158 °F (-25…70 °C)
“Ambient air temperature for operation: 14…122 °F (-10…50 °C) without derating
122…140 °F (50…60 °C) with derating factor”
Ambient Air Temperature for Storage: -13…158 °F (-25…70 °C)
Category: US1CP4B22152
Discount Schedule: CP4B
GTIN: 3606480966798
