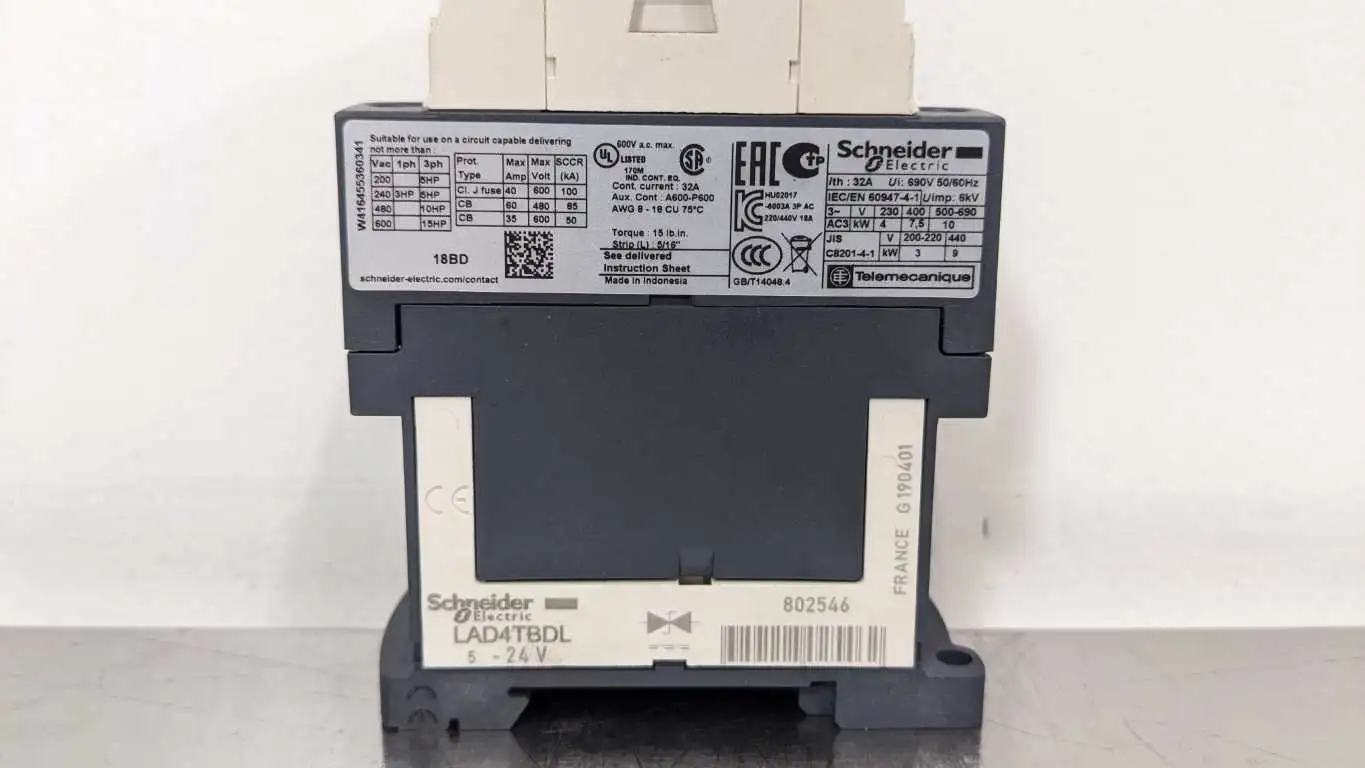

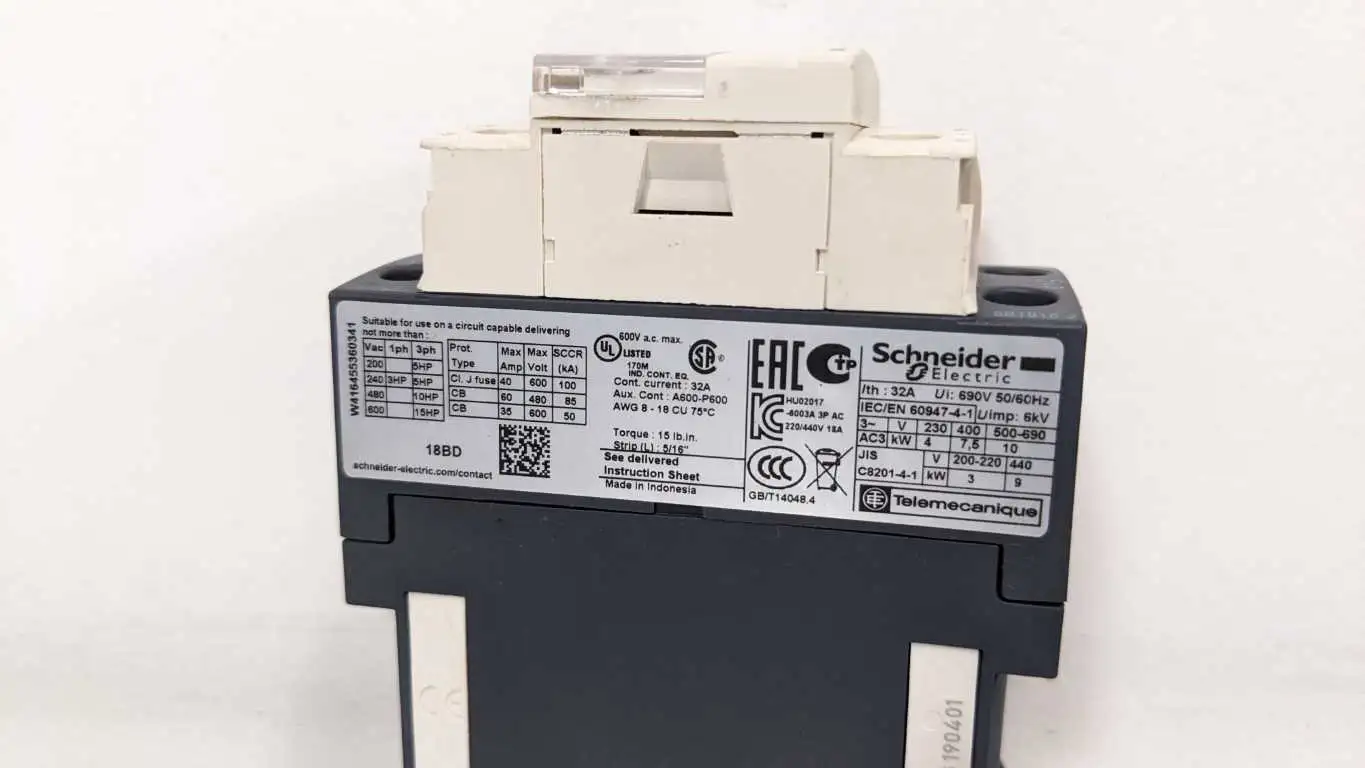

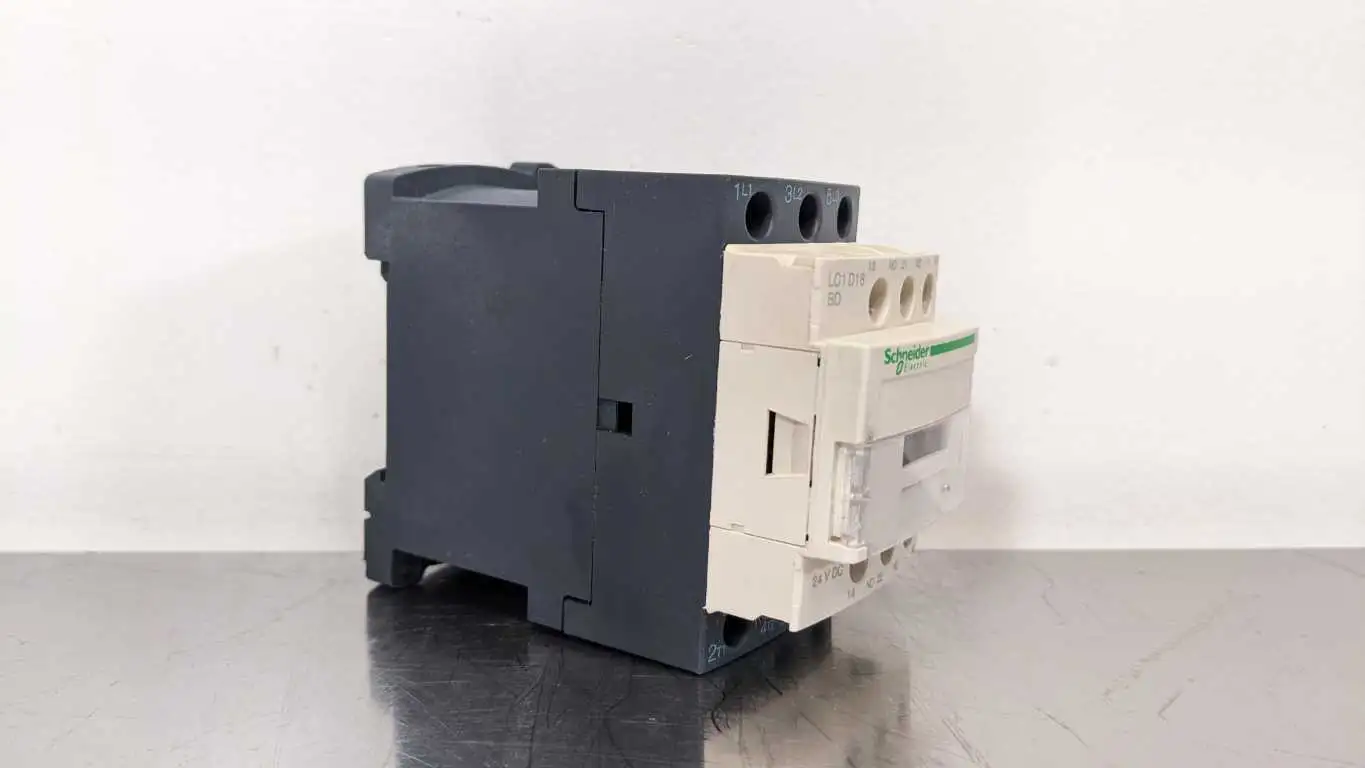

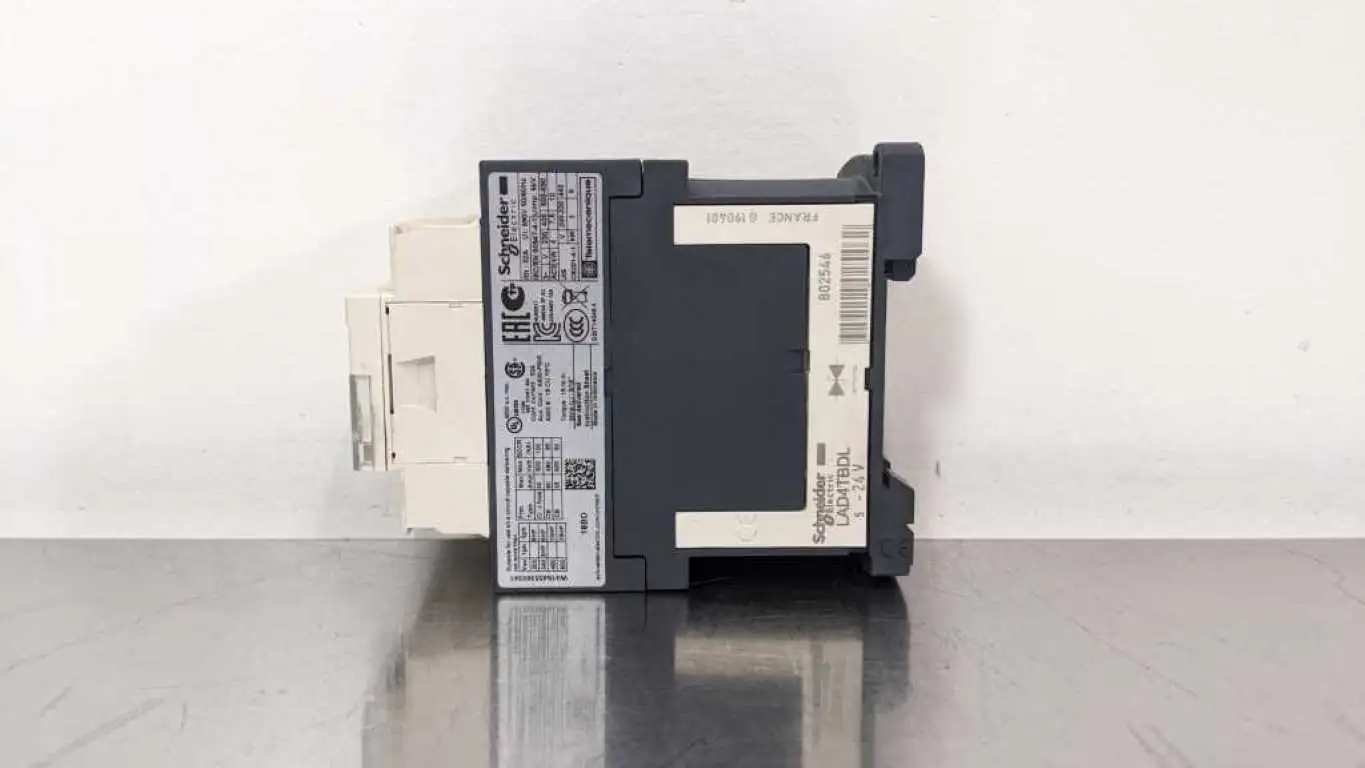

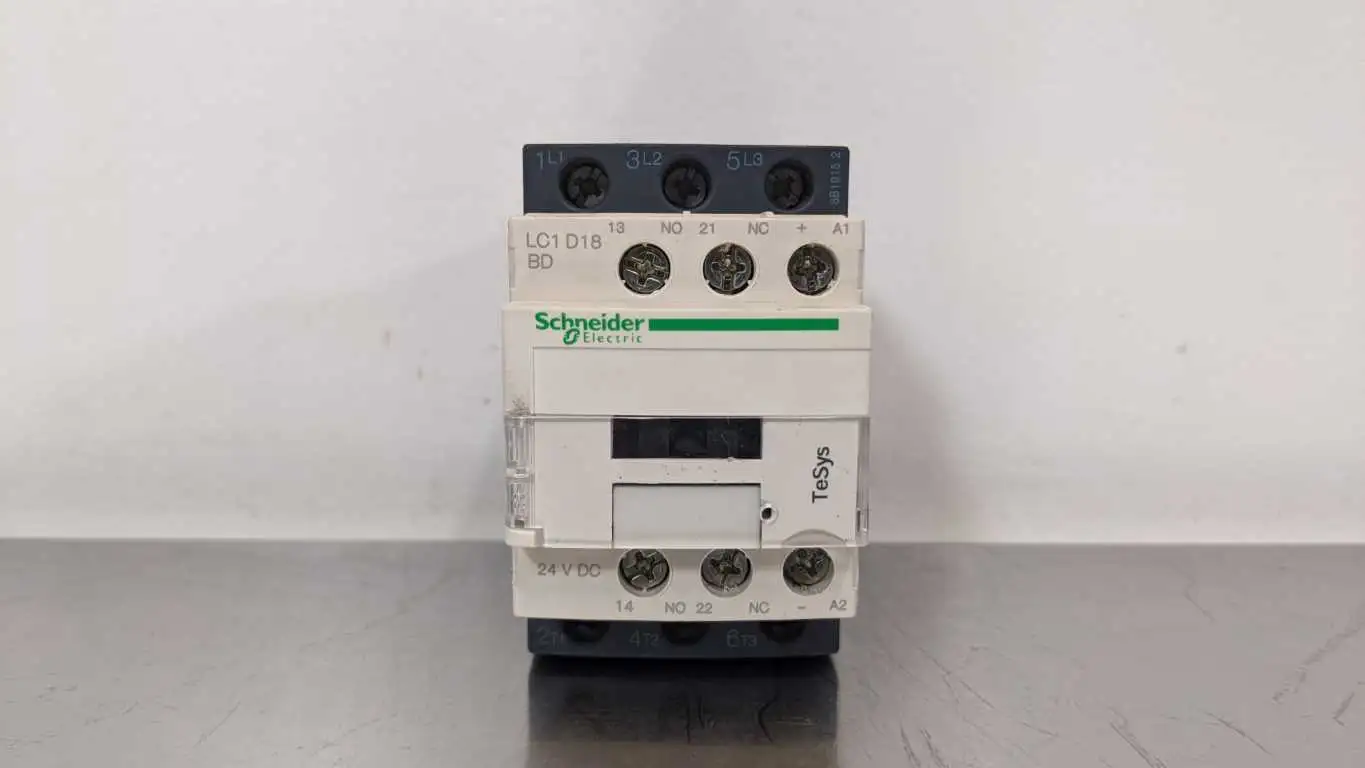

Schneider Electric LC1D18 Contactor 24VDC Coil

Product Details for Schneider Electric LC1D18 Contactor 24VDC Coil

SKU: 12064-6
Condition: Used
Brand: Schneider Electric
Model: LC1D18
Description: Contactor 24VDC Coil

*Actual product may vary from images.*
Additional MFG Notes on Schneider Electric LC1D18 Contactor 24VDC Coil:
IEC contactor, TeSys Deca, nonreversing, 18A, 10HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 24VDC coil, open

Main
Range of Product: TeSys Deca
Product or Component Type: Contactor
Device short name: LC1D
contactor application: Motor control
Resistive load: utilisation category
AC-4
AC-1
AC-3
AC-3e
Poles description: 3P
[Ue] rated operational voltage:
Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC [Ie] rated operational current: 18 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit 32 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit 18 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit [Uc] control circuit voltage: 24 V DC Complementary Motor power kW: 4 kW 220...230 V AC 50/60 Hz AC-3) 7.5 kW 380...400 V AC 50/60 Hz AC-3) 9 kW 415...440 V AC 50/60 Hz AC-3) 10 kW 500 V AC 50/60 Hz AC-3) 10 kW 660...690 V AC 50/60 Hz AC-3) 4 kW 400 V AC 50/60 Hz AC-4) 4 kW 220...230 V AC 50/60 Hz AC-3e) 7.5 kW 380...400 V AC 50/60 Hz AC-3e) 9 kW 415...440 V AC 50/60 Hz AC-3e) 10 kW 500 V AC 50/60 Hz AC-3e) 10 kW 660...690 V AC 50/60 Hz AC-3e) Maximum Horse Power Rating: 1 hp 115 V at AC 50/60 Hz for 1 phase 3 hp 230/240 V at AC 50/60 Hz for 1 phase 5 hp 200/208 V at AC 50/60 Hz for 3 phase 5 hp 230/240 V at AC 50/60 Hz for 3 phase 10 hp 460/480 V at AC 50/60 Hz for 3 phase 15 hp 575/600 V at AC 50/60 Hz for 3 phase Compatibility code: LC1D Pole contact composition: 3 NO Contact compatibility: M4 Protective cover: With [Ith] conventional free air thermal current 10 A 140 °F (60 °C) signalling circuit 32 A 140 °F (60 °C) power circuit Irms rated making capacity 140 A AC signalling circuit IEC 60947-5-1 250 A DC signalling circuit IEC 60947-5-1 300 A 440 V power circuit IEC 60947 Rated breaking capacity: 300 A 440 V power circuit IEC 60947 [Icw] rated short-time withstand current 145 A 104 °F (40 °C) - 10 s power circuit 240 A 104 °F (40 °C) - 1 s power circuit 40 A 104 °F (40 °C) - 10 min power circuit 84 A 104 °F (40 °C) - 1 min power circuit 100 A - 1 s signalling circuit 120 A - 500 ms signalling circuit 140 A - 100 ms signalling circuit Associated fuse rating: 10 A gG signalling circuit IEC 60947-5-1 50 A gG <= 690 V type 1 power circuit 35 A gG <= 690 V type 2 power circuit Average impedance: 2.5 mOhm - Ith 32 A 50 Hz power circuit Power dissipation per pole: 2.5 W AC-1 0.8 W AC-3 0.8 W AC-3e [Ui] rated insulation voltage: Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL Overvoltage category: III Pollution degree: 3 [Uimp] rated impulse withstand voltage: 6 kV IEC 60947 Safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 Mechanical durability: 30 Mcycles Electrical durability: 1.65 Mcycles 18 A AC-3 <= 440 V 1 Mcycles 32 A AC-1 <= 440 V 1.65 Mcycles 18 A AC-3e <= 440 V Control circuit type: DC standard Coil technology: With integral suppression device Control circuit voltage limits: 0.1...0.25 Uc -40…158 °F (-40…70 °C) drop-out DC 0.7...1.25 Uc -40…140 °F (-40…60 °C) operational DC 1...1.25 Uc 140…158 °F (60…70 °C) operational DC Inrush power in W: 5.4 W 68 °F (20 °C)) Hold-in power consumption in W: 5.4 W 68 °F (20 °C) Operating time: 53.55...72.45 ms closing 16...24 ms opening Time constant: 28 ms Maximum operating rate: 3600 cyc/h 140 °F (60 °C) Connections - terminals: Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible without cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) flexible with cable end Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) solid without cable end Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) solid without cable end Power circuit screw clamp terminals 1 0.00…0.01 in² (1.5…6 mm²) flexible without cable end Power circuit screw clamp terminals 2 0.00…0.01 in² (1.5…6 mm²) flexible without cable end Power circuit screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) flexible with cable end Power circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) flexible with cable end Power circuit screw clamp terminals 1 0.00…0.01 in² (1.5…6 mm²) solid without cable end Power circuit screw clamp terminals 2 0.00…0.01 in² (1.5…6 mm²) solid without cable end Tightening torque: Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 Auxiliary contact composition: 1 NO + 1 NC Auxiliary contacts type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1 Signalling circuit frequency: 25...400 Hz Minimum switching voltage: 17 V signalling circuit Minimum switching current: 5 mA signalling circuit Insulation resistance: > 10 MOhm signalling circuit
Non-overlap time:
1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact
Mounting Support: Plate
Rail
Environment
Standards:
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
Product Certifications:
LROS (Lloyds register of shipping)
DNV
GL
RINA
BV
CCC
UL
CSA
GOST
UKCA
IP degree of protection: IP20 front face IEC 60529
Protective treatment: THIEC 60068-2-30
Climatic withstand:
IACS E10 exposure to damp heat
IEC 60947-1 Annex Q category D exposure to damp heat
Permissible ambient air temperature around the device:
-40…140 °F (-40…60 °C)
140…158 °F (60…70 °C) with derating
Operating altitude: 0…9842.52 ft (0…3000 m)
Fire resistance: 1562 °F (850 °C) IEC 60695-2-1
Flame retardance: V1 conforming to UL 94
Mechanical robustness:
Vibrations contactor open 2 Gn, 5…300 Hz)
Vibrations contactor closed 4 Gn, 5…300 Hz)
Shocks contactor open 10 Gn for 11 ms)
Shocks contactor closed 15 Gn for 11 ms)
Height: 3.03 in (77 mm)
Width: 1.77 in (45 mm)
Depth: 3.74 in (95 mm)
Net Weight: 1.08 lb(US) (0.49 kg)
Category: 22355-CTR,TESYS D,OPEN,9-38A DC
GTIN: 3389110354775
