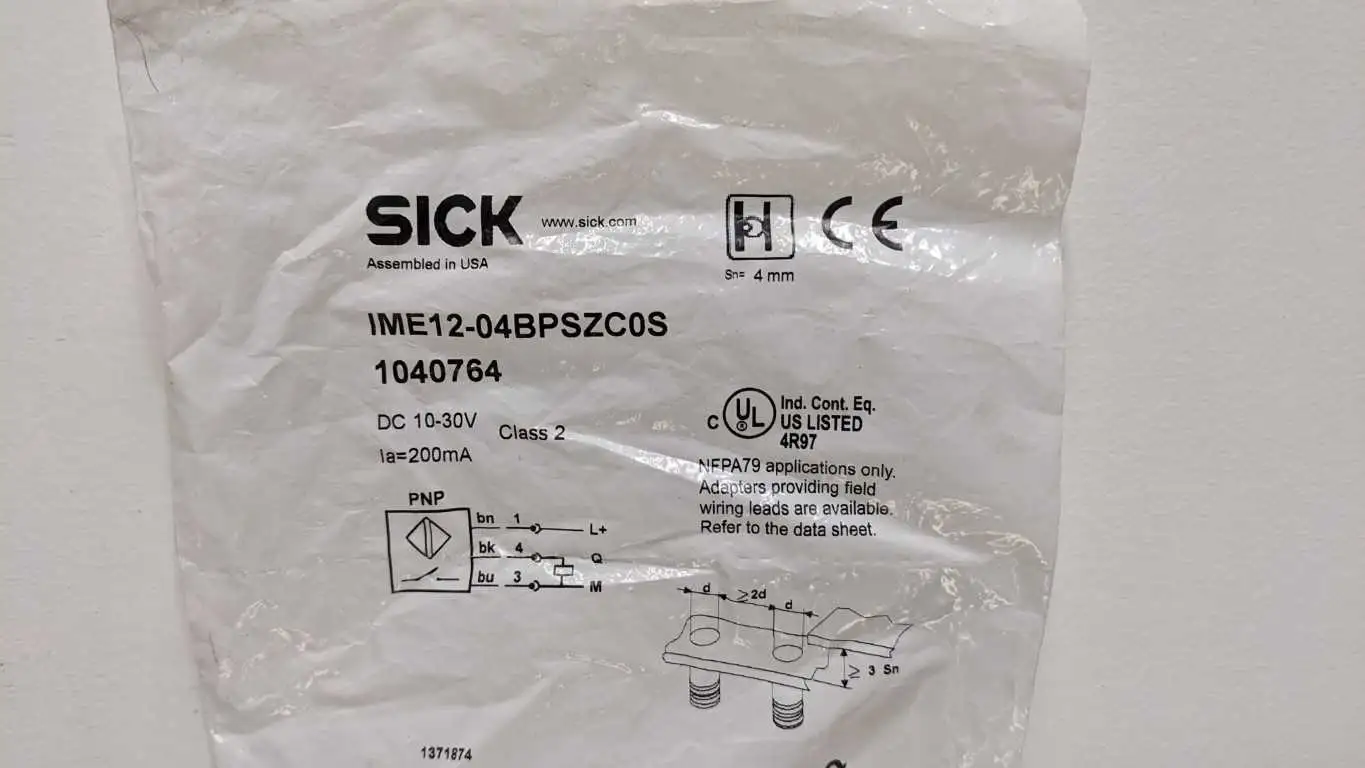

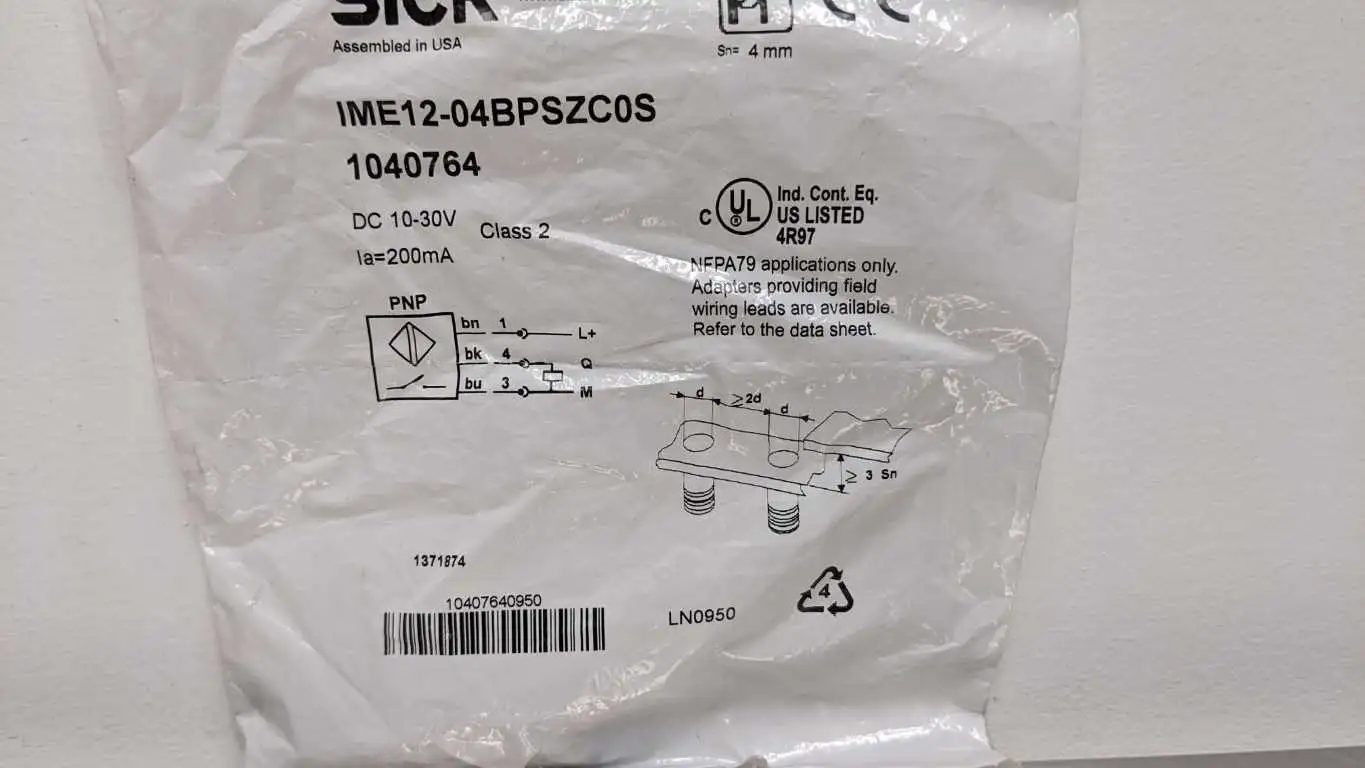

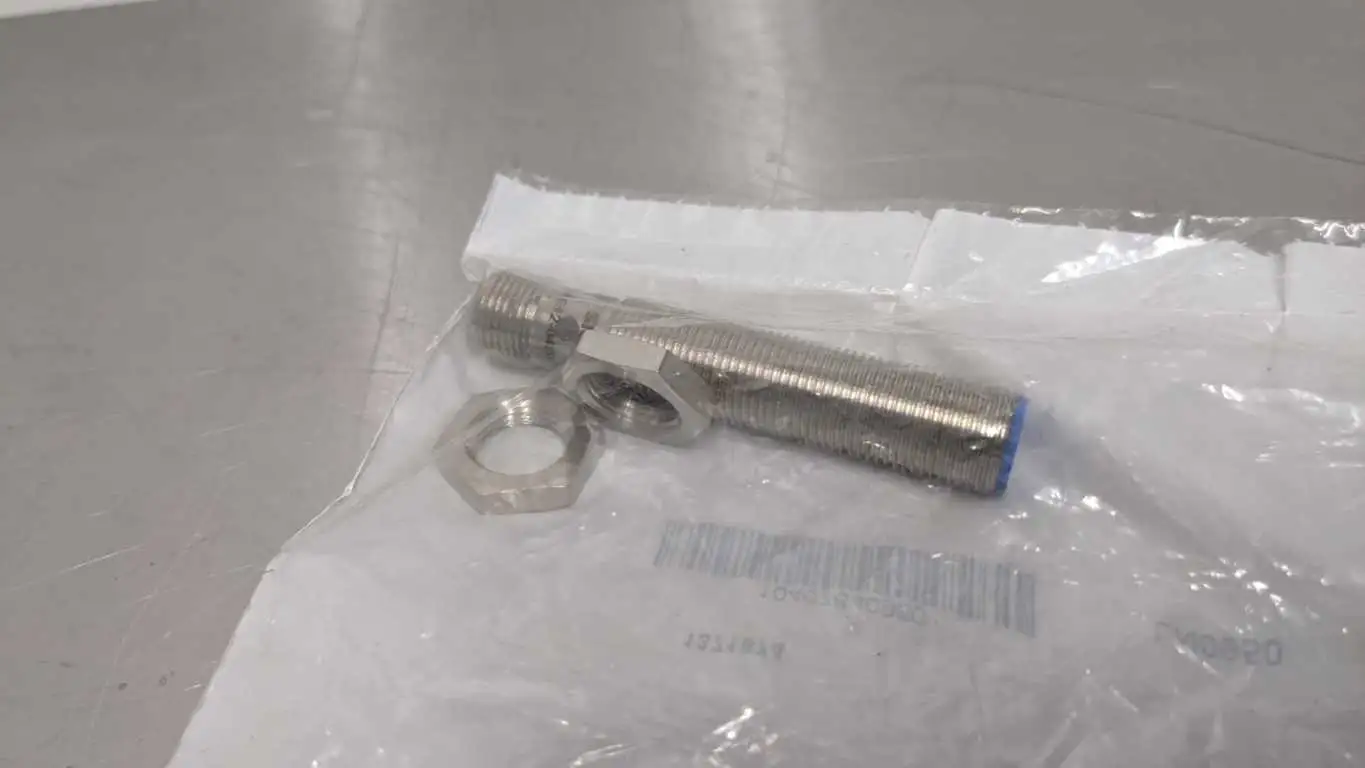

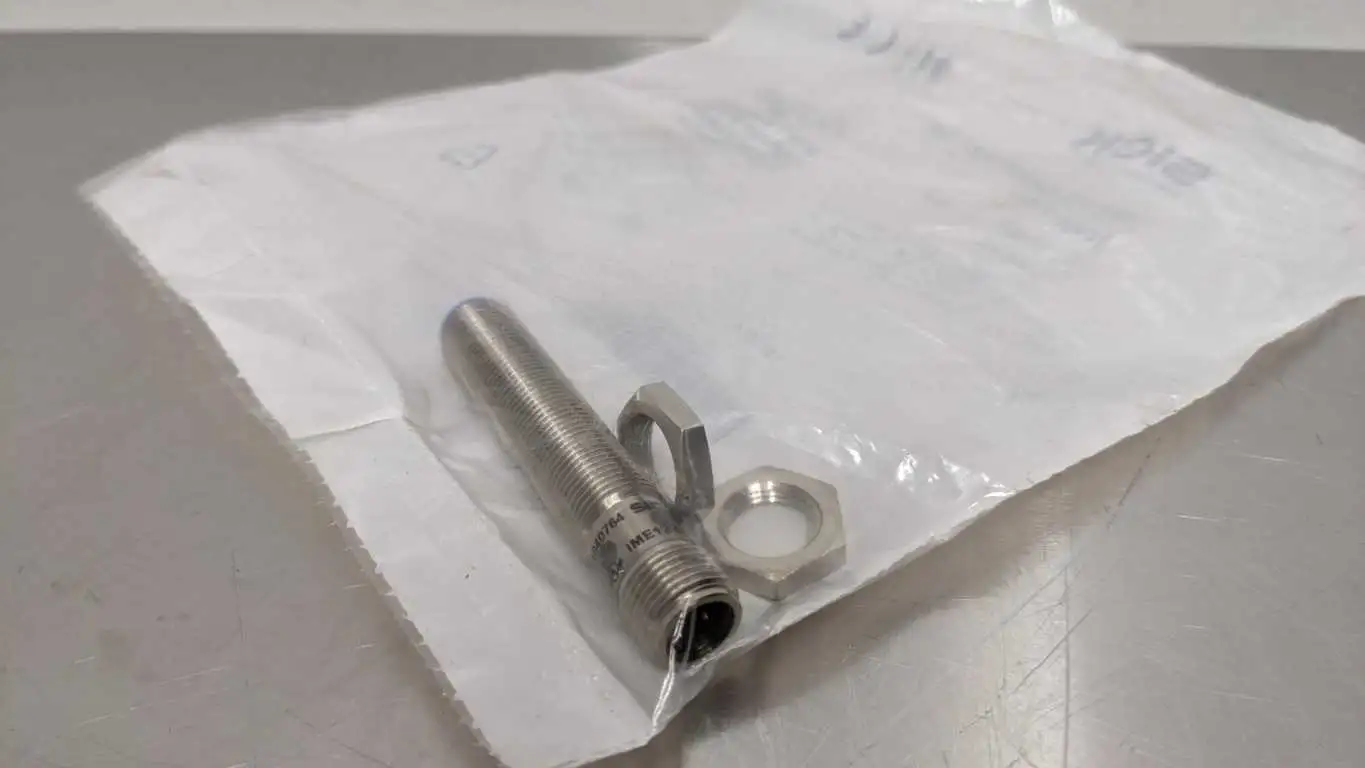

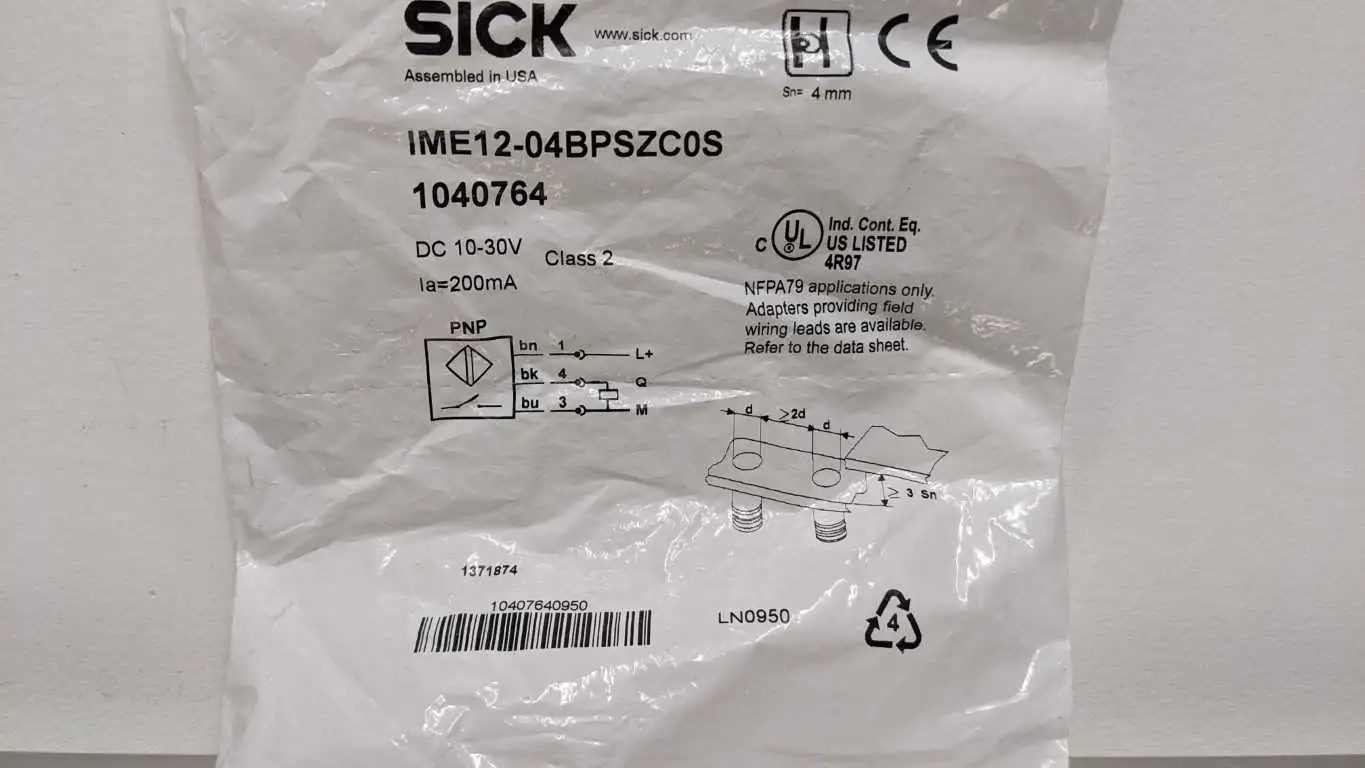

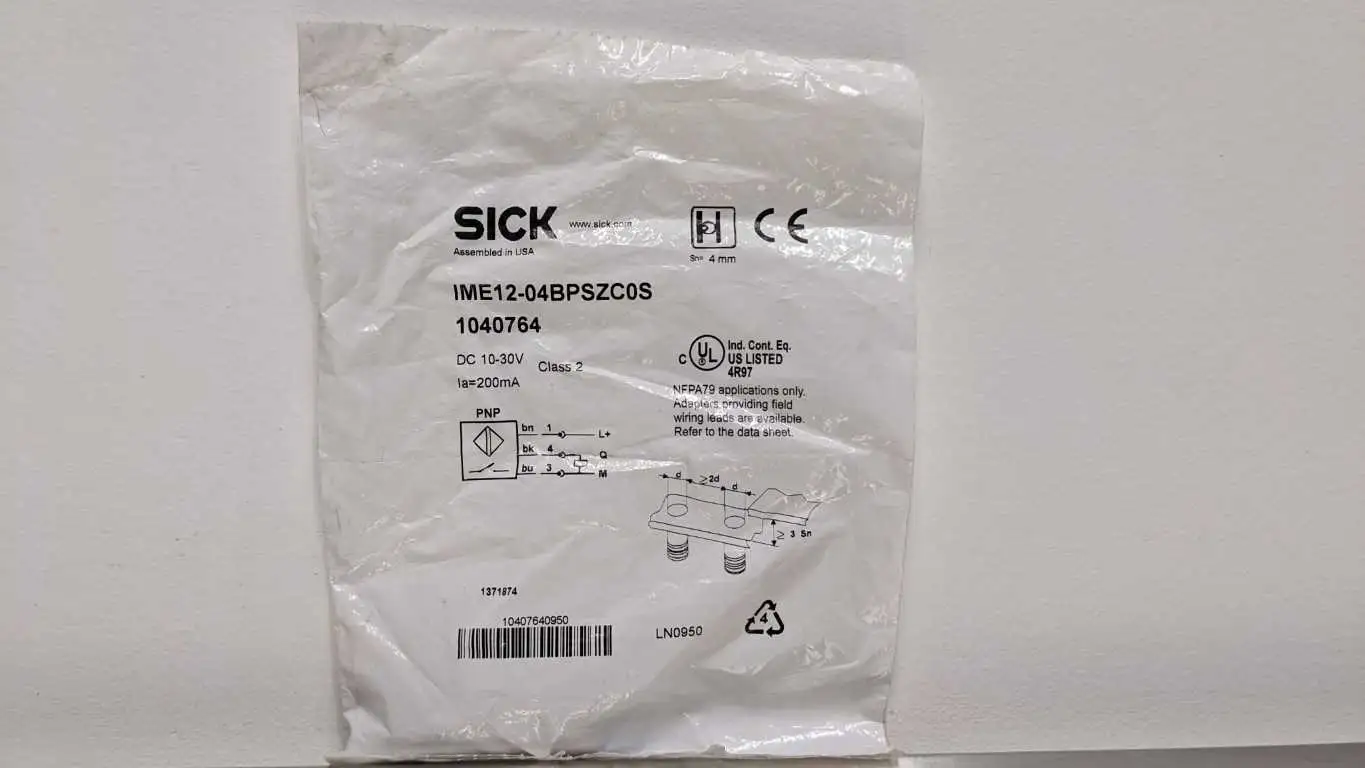

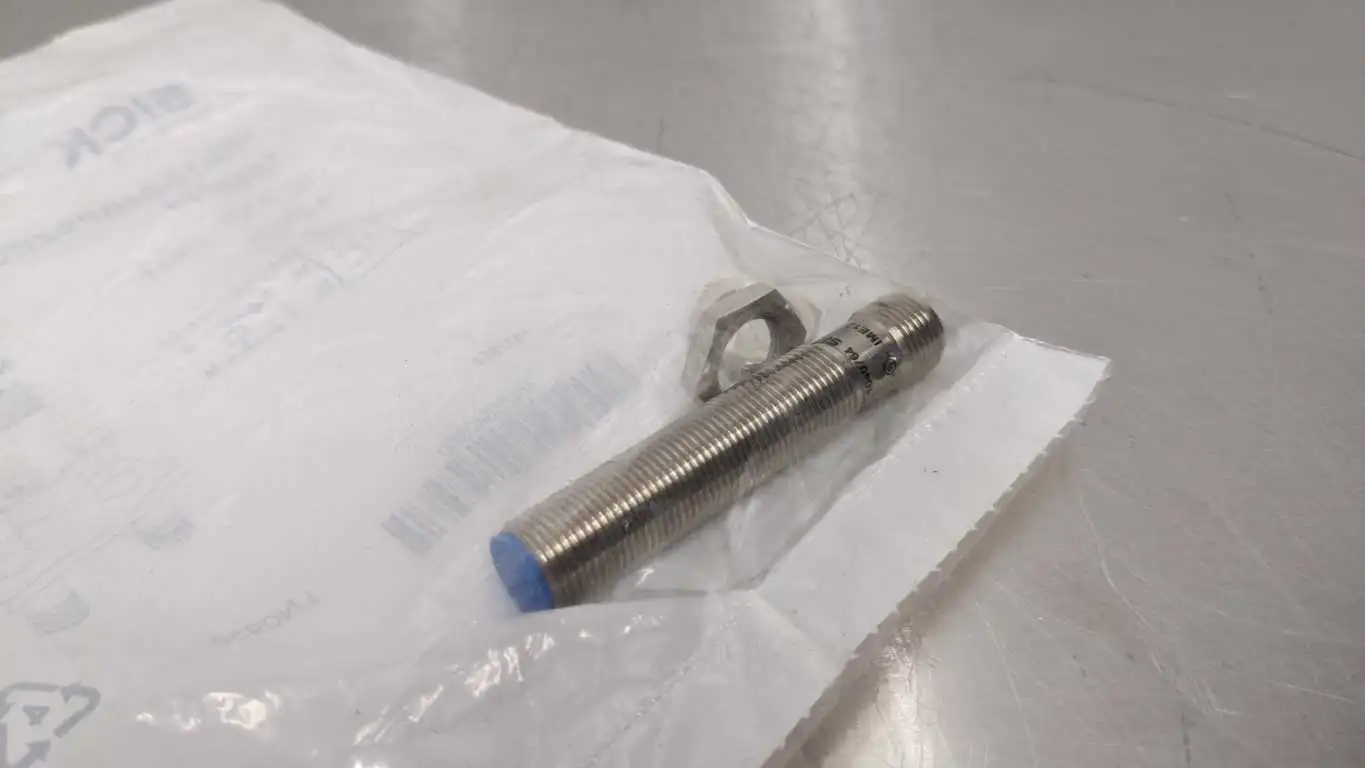

Sick IME12-04BPSZC0S Inductive Proximity Sensor 4mm 10-30, VDC 1040764 Class 2
Brand: Sick | Model: IME12-04BPSZC0S | Condition: New | NEO SKU: 11486-2
Out of stock
Request for Quote
NEO SKU: 11486-2 | Category: Proximity Sensors
Product Details for Sick IME12-04BPSZC0S Inductive Proximity Sensor 4mm 10-30, VDC 1040764 Class 2:
Condition: New
Brand: Sick
Model: IME12-04BPSZC0S
Capacity: 4mm
UPC: 010407640950
Country of Origin: USA
Electrical
Input
Volts: 10-30, VDC
Product Notes
From MFG:
Features
Housing Cylindrical thread design
Housing Standard design
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 4 mm
Safe sensing range Sa 3.24 mm
Installation type Flush
Switching frequency 2,000 Hz
Connection type Male connector M12, 4-pin
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Items supplied Mounting nut, brass, nickel-plated (2x)
1) According to EN 60529.
Mechanics/electronics
Supply voltage 10 V DC … 30 V DC
Ripple ≤ 10 %
Voltage drop ≤ 2 V 1)
Time delay before availability ≤ 100 ms
Hysteresis 5 % … 15 %
Reproducibility ≤ 2 % 2) 3)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia ≤ 200 mA
No load current ≤ 10 mA
Short-circuit protection ✔
Reverse polarity protection ✔
Power-up pulse protection ✔
Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm
Ambient operating temperature –25 °C … +75 °C
Housing material Brass, nickel-plated
Sensing face material Plastic, PA 66
Housing length 65 mm
Thread length 48 mm
Tightening torque, max. ≤ 12 Nm
UL File No. NRKH.E181493
1) At Ia max.
2) Ub and Ta constant.
3) Of Sr.
Safety-related parameters
MTTFD 1,735 years
DCavg 0 %
Reduction factors
Note The values are reference values which may vary
St37 steel (Fe) 1
Stainless steel (V2A, 304) Approx. 0.8
Aluminum (Al) Approx. 0.45
Copper (Cu) Approx. 0.4
Brass (Br) Approx. 0.4
MFG Description
Sick is a global leader in sensor technology and industrial automation, providing high-quality sensors, safety systems, and machine vision solutions for various applications.
MFG URL
For more information about this product or Sick, check out their website: https://sick.com
Only logged in customers who have purchased this product may leave a review.
Related Products
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 8 × 7 in |
| Brand | Sick |
| Model | IME12-04BPSZC0S |
| Input Volts | 10-30, VDC |
| Capacity | 4mm |
| Origin | USA |
| Condition | New |
| UPC | 010407640950 |
Product Details for Sick IME12-04BPSZC0S Inductive Proximity Sensor 4mm 10-30, VDC 1040764 Class 2
SKU: 11486-2
Condition: New Surplus Manufacturer Packaging
Brand: Sick
Model: IME12-04BPSZC0S
Additional Description: 10-30, VDC
Description: Inductive Proximity Sensor 1040764 Class 2
Electrical
Input Volts: 10-30, VDC
Capacity: 4mm
Origin: USA
UPC: 010407640950
Notes: From MFG:
Features
Housing Cylindrical thread design
Housing Standard design
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 4 mm
Safe sensing range Sa 3.24 mm
Installation type Flush
Switching frequency 2,000 Hz
Connection type Male connector M12, 4-pin
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Enclosure rating IP67 1)
Items supplied Mounting nut, brass, nickel-plated (2x)
1) According to EN 60529.
Mechanics/electronics
Supply voltage 10 V DC … 30 V DC
Ripple ≤ 10 %
Voltage drop ≤ 2 V 1)
Time delay before availability ≤ 100 ms
Hysteresis 5 % … 15 %
Reproducibility ≤ 2 % 2) 3)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia ≤ 200 mA
No load current ≤ 10 mA
Short-circuit protection ✔
Reverse polarity protection ✔
Power-up pulse protection ✔
Shock and vibration resistance 30 g, 11 ms/10 Hz … 55 Hz, 1 mm
Ambient operating temperature –25 °C … +75 °C
Housing material Brass, nickel-plated
Sensing face material Plastic, PA 66
Housing length 65 mm
Thread length 48 mm
Tightening torque, max. ≤ 12 Nm
UL File No. NRKH.E181493
1) At Ia max.
2) Ub and Ta constant.
3) Of Sr.
Safety-related parameters
MTTFD 1,735 years
DCavg 0 %
Reduction factors
Note The values are reference values which may vary
St37 steel (Fe) 1
Stainless steel (V2A, 304) Approx. 0.8
Aluminum (Al) Approx. 0.45
Copper (Cu) Approx. 0.4
Brass (Br) Approx. 0.4
