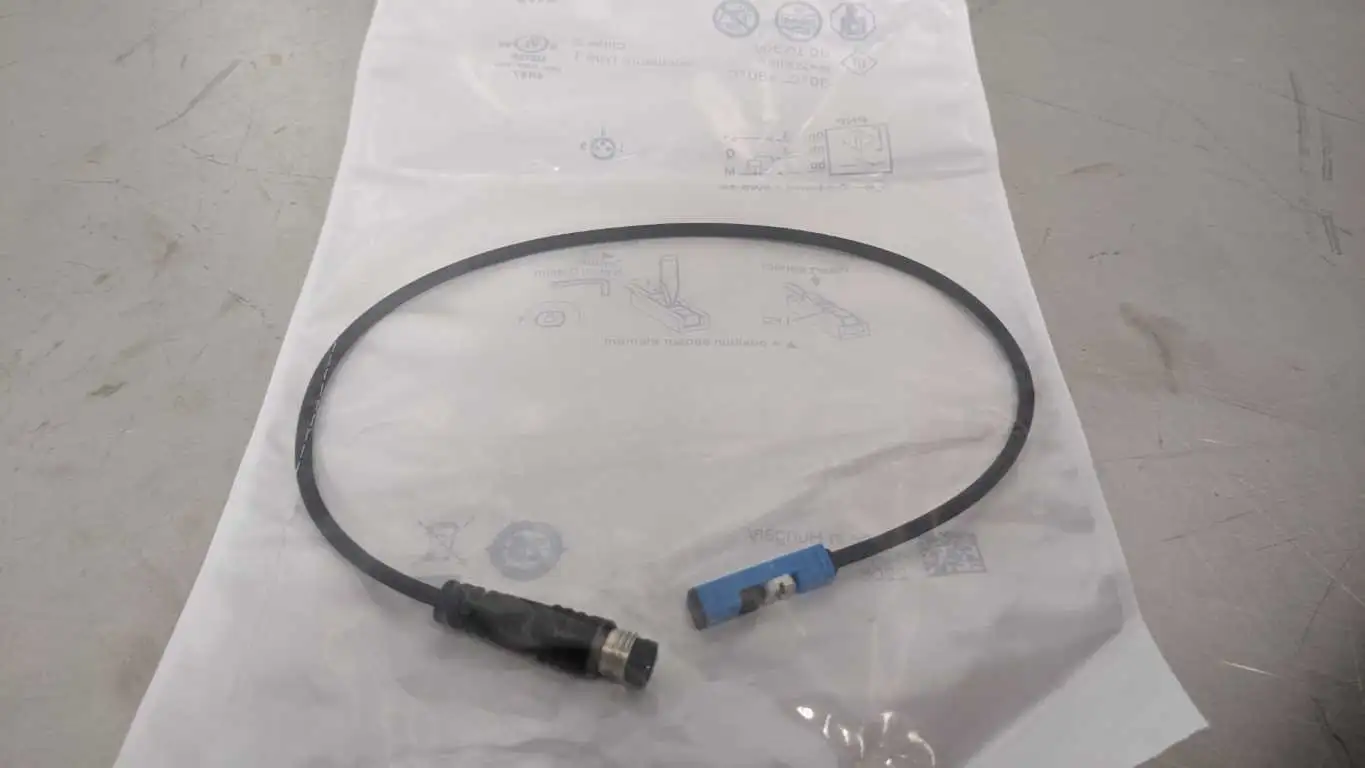

Sick MZT8-03VPS-KP0 Magnetic Sensor 10-30VDC 1044458 10-30VDC
Brand: Sick | Model: MZT8-03VPS-KP0 | Condition: New | NEO SKU: 12329-2
Original price was: $75.30.$57.59Current price is: $57.59.
3 in stock
Free Shipping on orders over $50.
*(Domestic only)
Need it fast? Next Day Air available at check out.
Same Day Handling on orders prior to 2pm Eastern Monday – Friday
3 in stock
NEO SKU: 12329-2 | Category: Proximity Sensors
Product Details for New Sick MZT8-03VPS-KP0 Magnetic Sensor 10-30VDC 1044458 10-30VDC:
Condition: New
Brand: Sick
Model: MZT8-03VPS-KP0
Country of Origin: Hungary
Electrical
Input
Volts: 10-30VDC
MFG Product Notes
Cylinder type: T-slot
Cylinder types with adapter:
Profile cylinder
Tie rod cylinder
Round body cylinder
Dovetail groove cylinder
SMC rail CDQ2
SMC rail ECDQ2
Housing length: 24 mm
Switching output: PNP
Switching frequency: 1,000 Hz
Output function NO:
Electrical wiring: DC 3-wire
Enclosure rating: IP68 According to EN 60529 (IP 67 / IP 68).
Supply voltage: 10 V DC … 30 V DC
Power consumption: 10 mA, without load
Voltage drop: ≤ 2.2 V
Continuous current Ia: ≤ 200 mA
Protection class: III
Time delay before availability: 25 ms
Response sensitivity, typ.: 2.6 mT
Overrun distance, typ.: 3 mm
Hysteresis, typ.: 0.7 mT
Reproducibility: ≤ 0.1 mT (Ub and Ta constant.)
Reverse polarity protection: Yes
Short-circuit protection: Yes
Power-up pulse protection: Yes
Ambient operating temperature: –30 °C … +80 °C
Shock and vibration resistance: 30 g, 11 ms / 10 … 55 Hz, 1 mm
EMC: According to EN 60947-5-2
Connection type Cable with connector: M8, 3-pin, drag chain use, 0.3 m
Connection type Detail
Conductor cross section: 0.14 mm²
Cable diameter: Ø 2.9 mm
Bending radius:
With fixed installation > 3 x cable diameter
For flexible use > 10 x cable diameter
Torsion force: ± 270° / 10 cm
Torsion cycles: > 2,000,000
Drag chain cycles: > 2,000,000
Drag chain parameters: Traversing speed max. 3.3 m/s at 5 m horizontal traversing length
Acceleration max.: 5 m/s²
Cable outlet: Axial
Material
Housing: Plastic, PA12
Cable: PUR
UL File No. NRKH.E181493 & NRKH7.E181493
MFG Description
Sick is a global leader in sensor technology and industrial automation, providing high-quality sensors, safety systems, and machine vision solutions for various applications.
MFG URL
For more information about this product or Sick, check out their website: https://sick.com
Only logged in customers who have purchased this product may leave a review.
Related Products
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 8 × 7 in |
| Brand | Sick |
| Model | MZT8-03VPS-KP0 |
| Input Volts | 10-30VDC |
| Origin | Hungary |
| Condition | New |
Product Details for Sick MZT8-03VPS-KP0 Magnetic Sensor 10-30VDC 1044458 10-30VDC
SKU: 12329-2
Condition: New Surplus Manufacturer Packaging
Brand: Sick
Model: MZT8-03VPS-KP0
Additional Description: 10-30VDC
Description: Magnetic Sensor 1044458 10-30VDC
Electrical
Input Volts: 10-30VDC
Origin: Hungary
*Actual product may vary from images.*
Additional MFG Notes on Sick MZT8-03VPS-KP0 Magnetic Sensor 10-30VDC 1044458 10-30VDC:
Cylinder type: T-slot
Cylinder types with adapter:
Profile cylinder
Tie rod cylinder
Round body cylinder
Dovetail groove cylinder
SMC rail CDQ2
SMC rail ECDQ2
Housing length: 24 mm
Switching output: PNP
Switching frequency: 1,000 Hz
Output function NO:
Electrical wiring: DC 3-wire
Enclosure rating: IP68 According to EN 60529 (IP 67 / IP 68).
Supply voltage: 10 V DC … 30 V DC
Power consumption: 10 mA, without load
Voltage drop: ≤ 2.2 V
Continuous current Ia: ≤ 200 mA
Protection class: III
Time delay before availability: 25 ms
Response sensitivity, typ.: 2.6 mT
Overrun distance, typ.: 3 mm
Hysteresis, typ.: 0.7 mT
Reproducibility: ≤ 0.1 mT (Ub and Ta constant.)
Reverse polarity protection: Yes
Short-circuit protection: Yes
Power-up pulse protection: Yes
Ambient operating temperature: –30 °C … +80 °C
Shock and vibration resistance: 30 g, 11 ms / 10 … 55 Hz, 1 mm
EMC: According to EN 60947-5-2
Connection type Cable with connector: M8, 3-pin, drag chain use, 0.3 m
Connection type Detail
Conductor cross section: 0.14 mm²
Cable diameter: Ø 2.9 mm
Bending radius:
With fixed installation > 3 x cable diameter
For flexible use > 10 x cable diameter
Torsion force: ± 270° / 10 cm
Torsion cycles: > 2,000,000
Drag chain cycles: > 2,000,000
Drag chain parameters: Traversing speed max. 3.3 m/s at 5 m horizontal traversing length
Acceleration max.: 5 m/s²
Cable outlet: Axial
Material
Housing: Plastic, PA12
Cable: PUR
UL File No. NRKH.E181493 & NRKH7.E181493
